Wiring Diagram - TURN

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

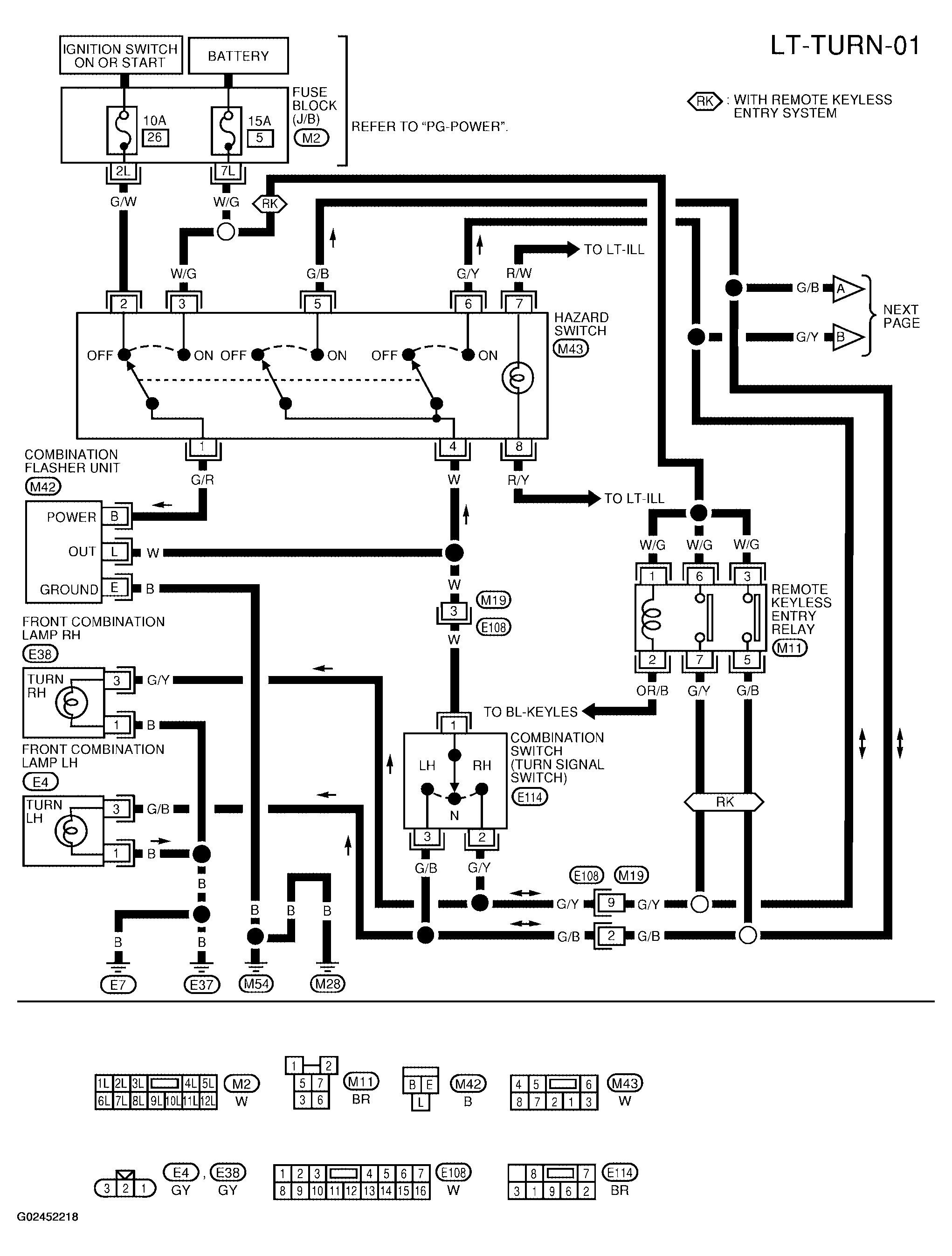

Fig 1: Wiring Diagram - (LT-TURN-01)
G02452218Courtesy of NISSAN MOTOR CO., U.S.A.

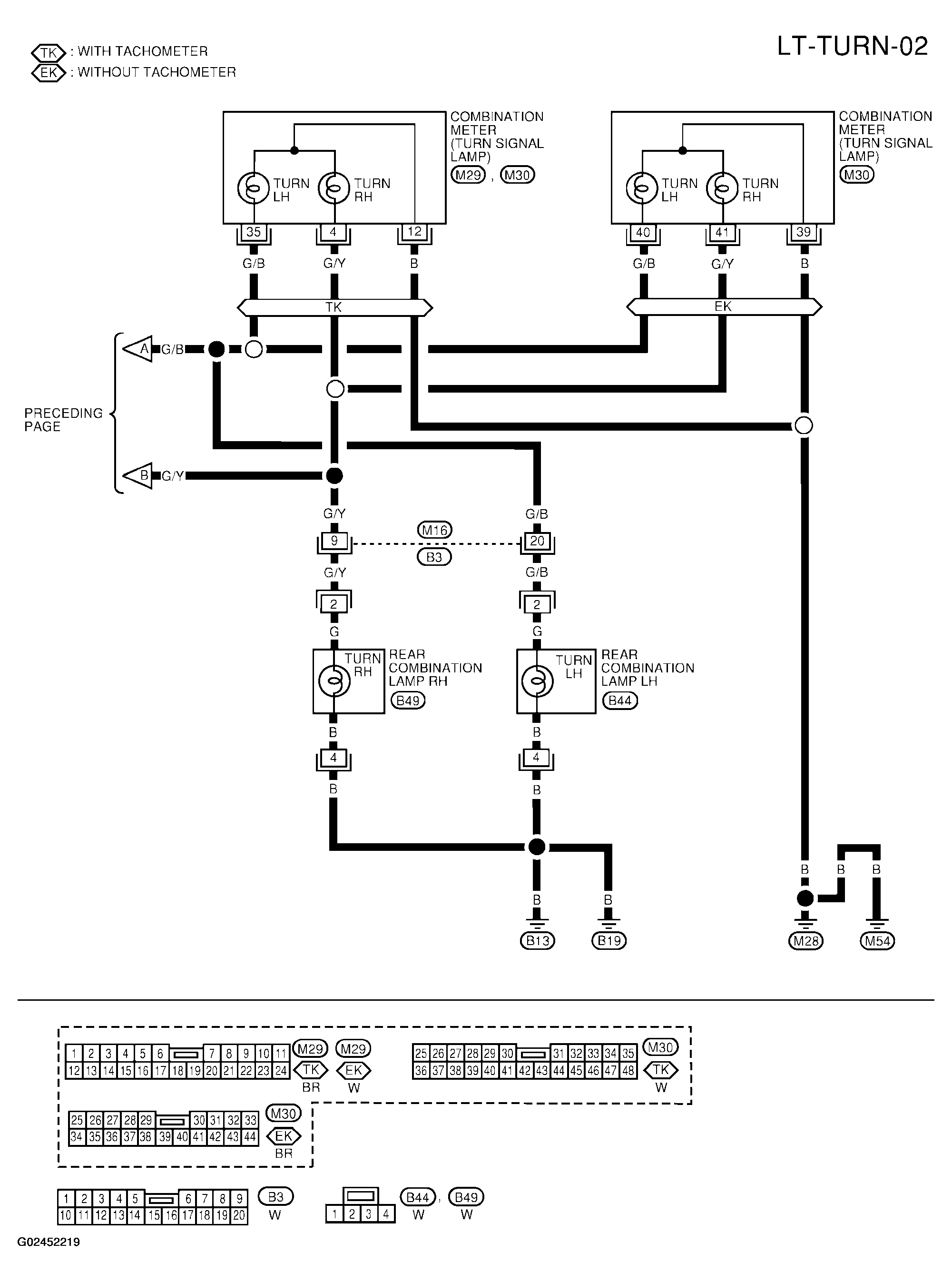

Fig 2: Wiring Diagram - (LT-TURN-02)
G02452219Courtesy of NISSAN MOTOR CO., U.S.A.
