Wiring Diagram - TAIL/L

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

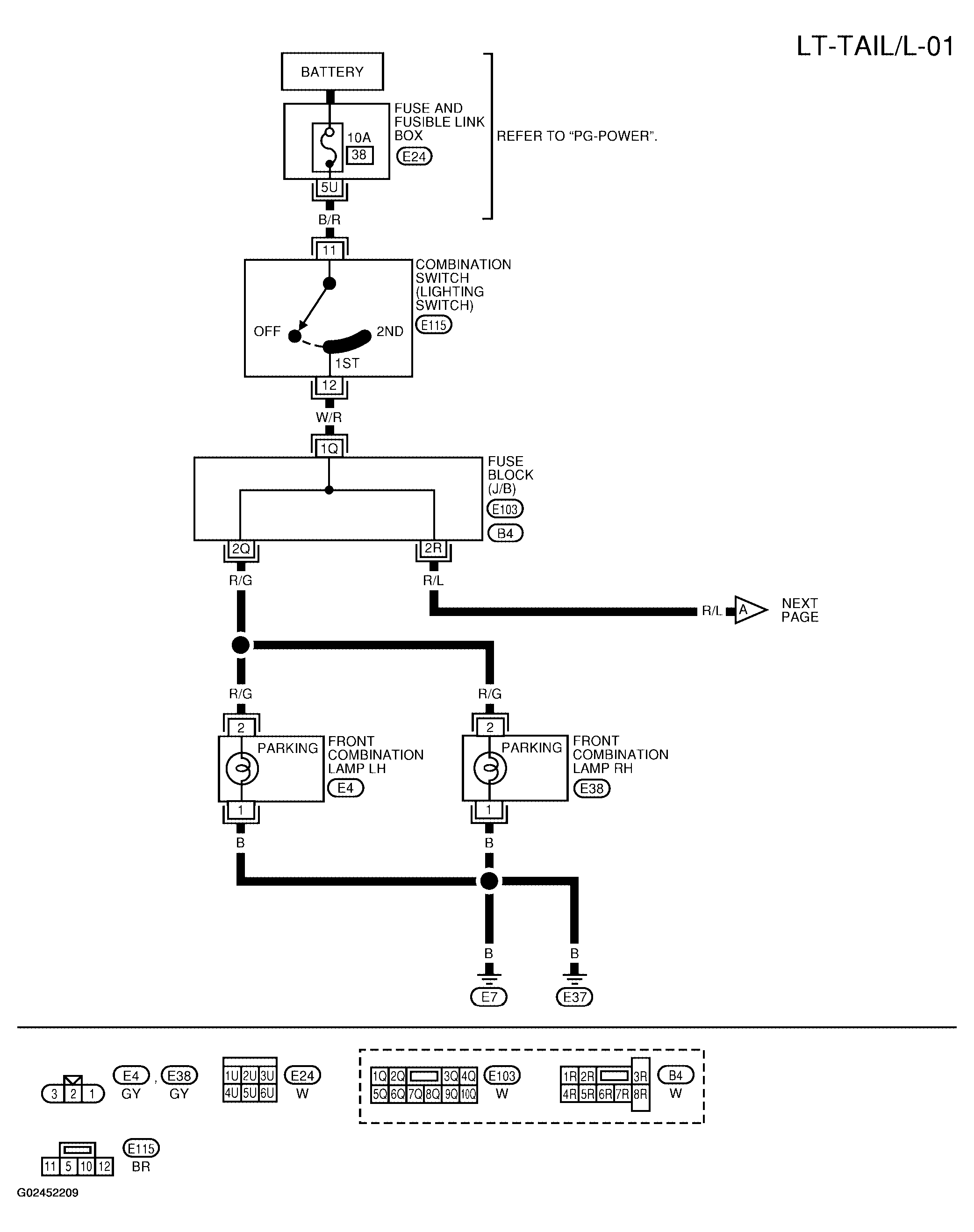

Fig 1: Wiring Diagram - (LT-TAIL/L-01)
G02452209Courtesy of NISSAN MOTOR CO., U.S.A.

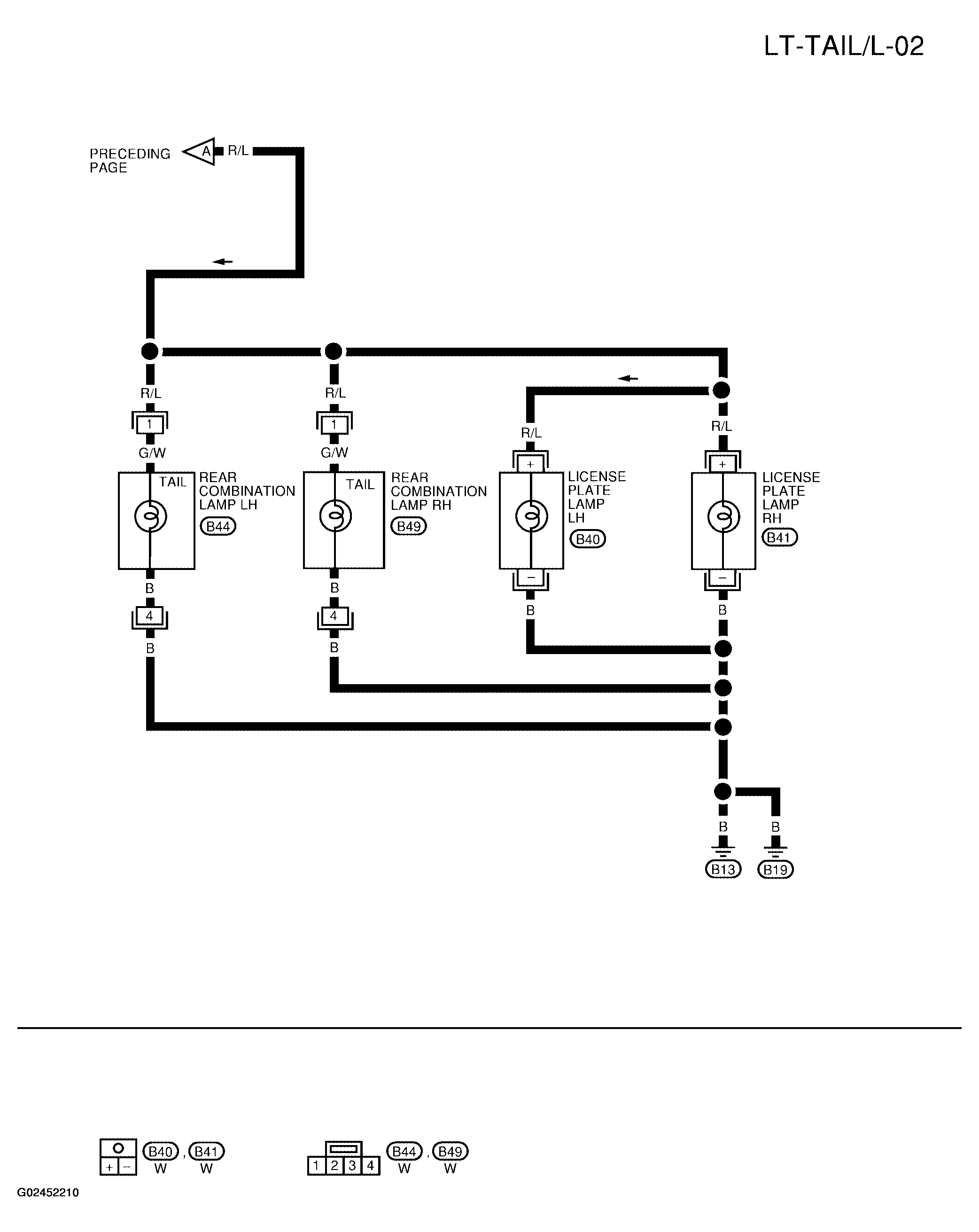

Fig 2: Wiring Diagram - (LT-TAIL/L-02)
G02452210Courtesy of NISSAN MOTOR CO., U.S.A.
