Wiring Diagram - BACK/L: QG18DE

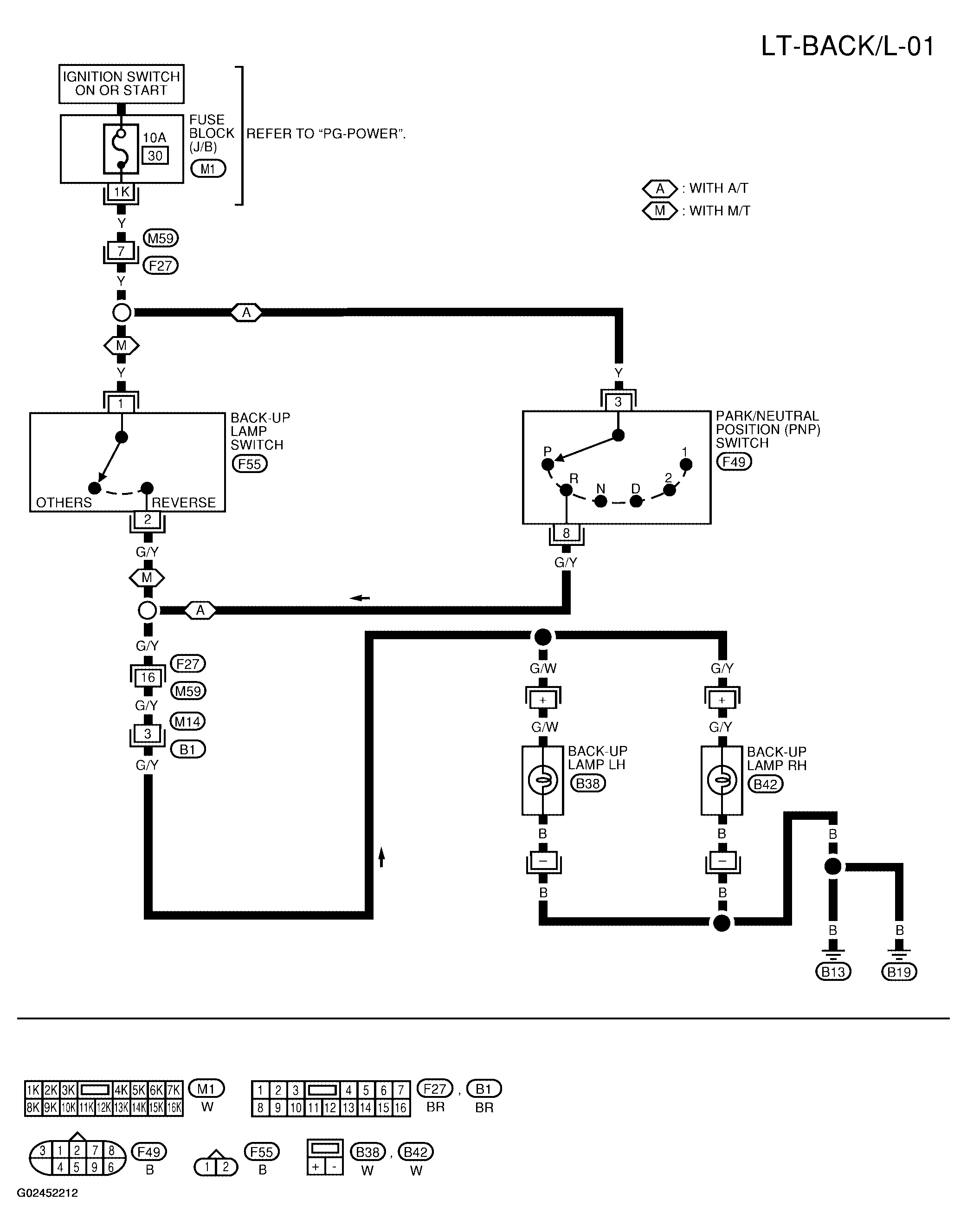

Fig 1: Wiring Diagram - (LT-BACK/L-01)

G02452212

Courtesy of NISSAN MOTOR CO., U.S.A.
