Sentra SE-R
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Driver Information System
>>
Warning Lamps
>>
Wiring Diagram - WARN -
>>
Without Tachometer
Without Tachometer

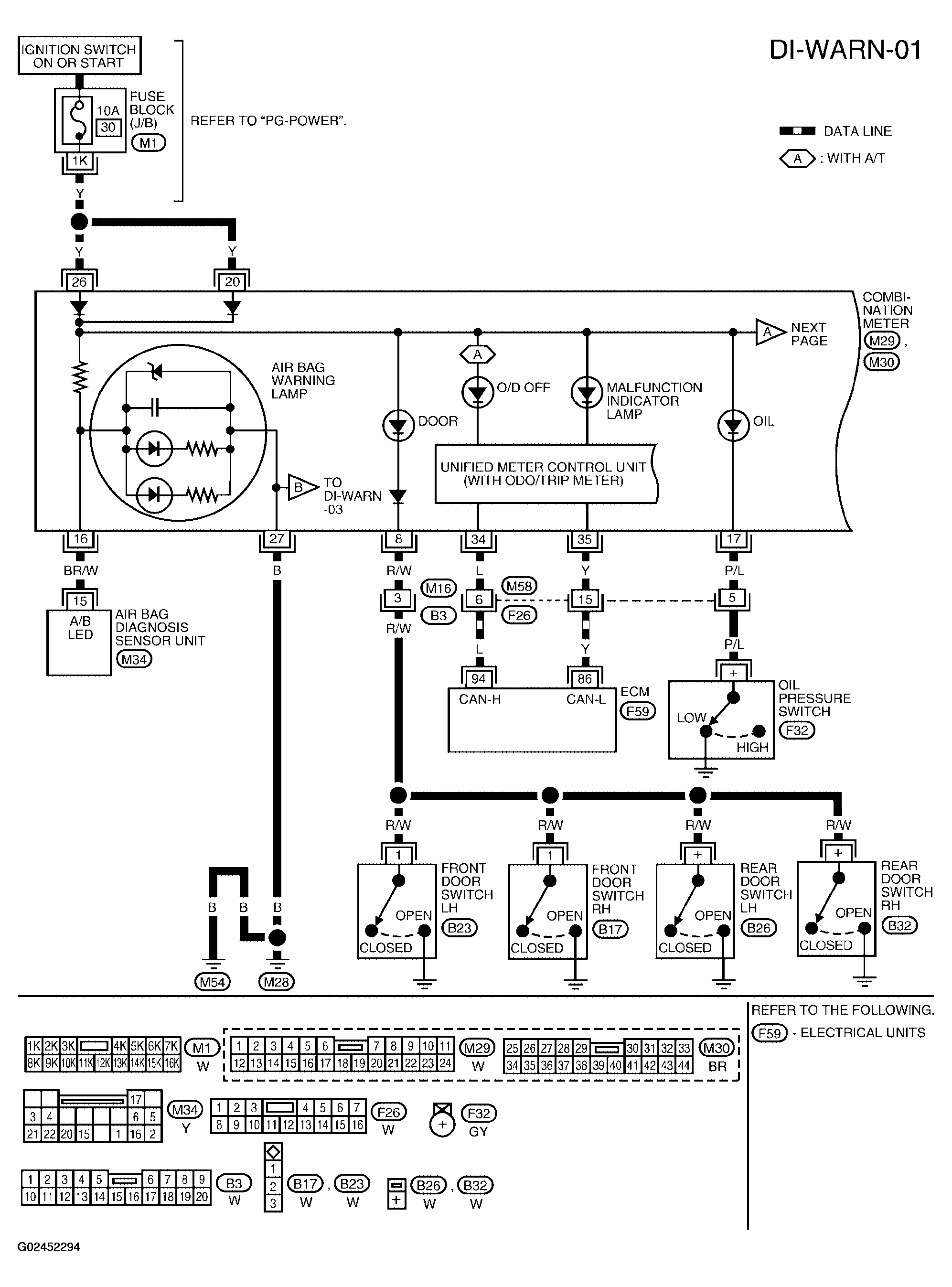

Fig 1: Wiring Diagram - DI-WARN-01 (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.

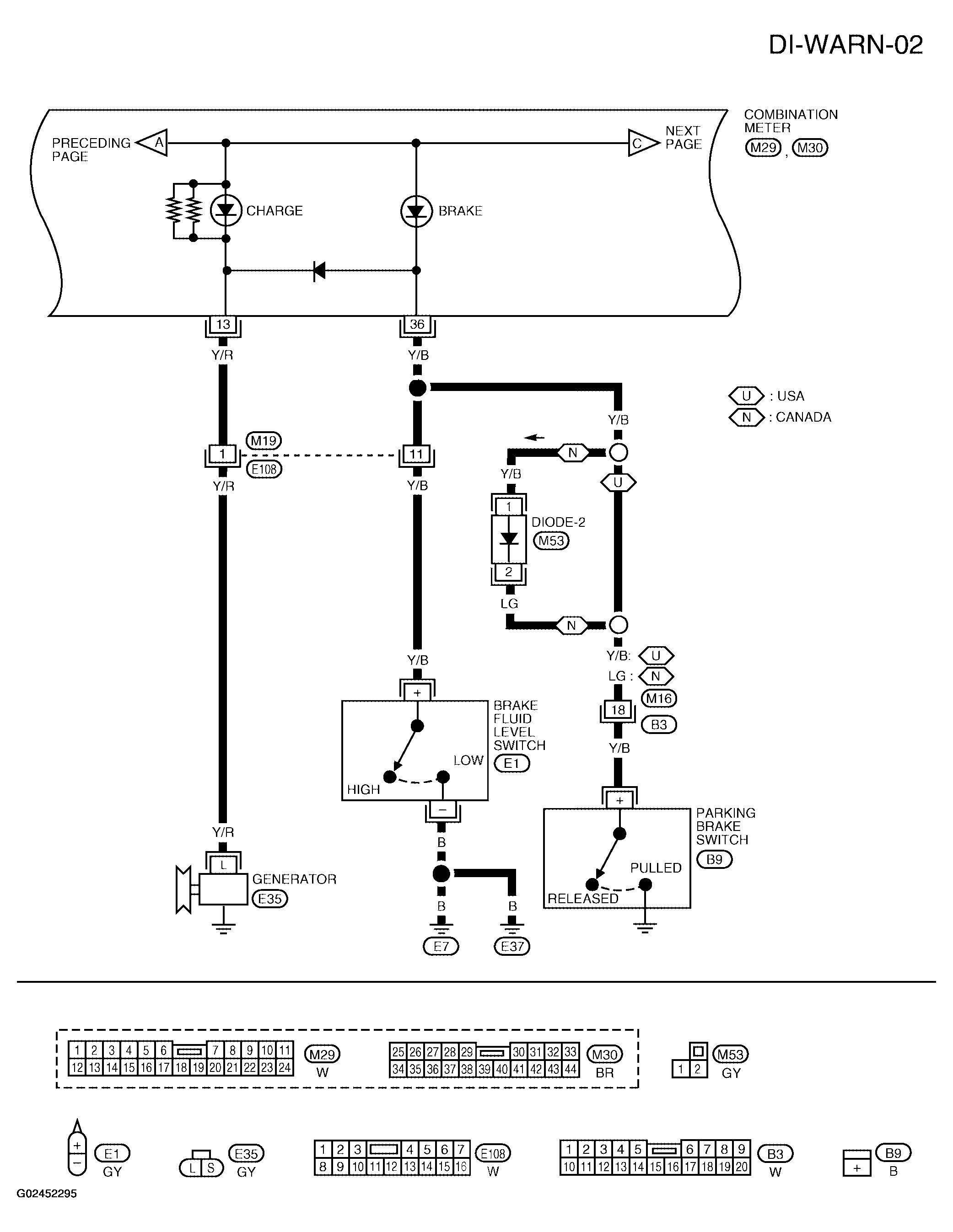

Fig 2: Wiring Diagram - DI-WARN-02 (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.

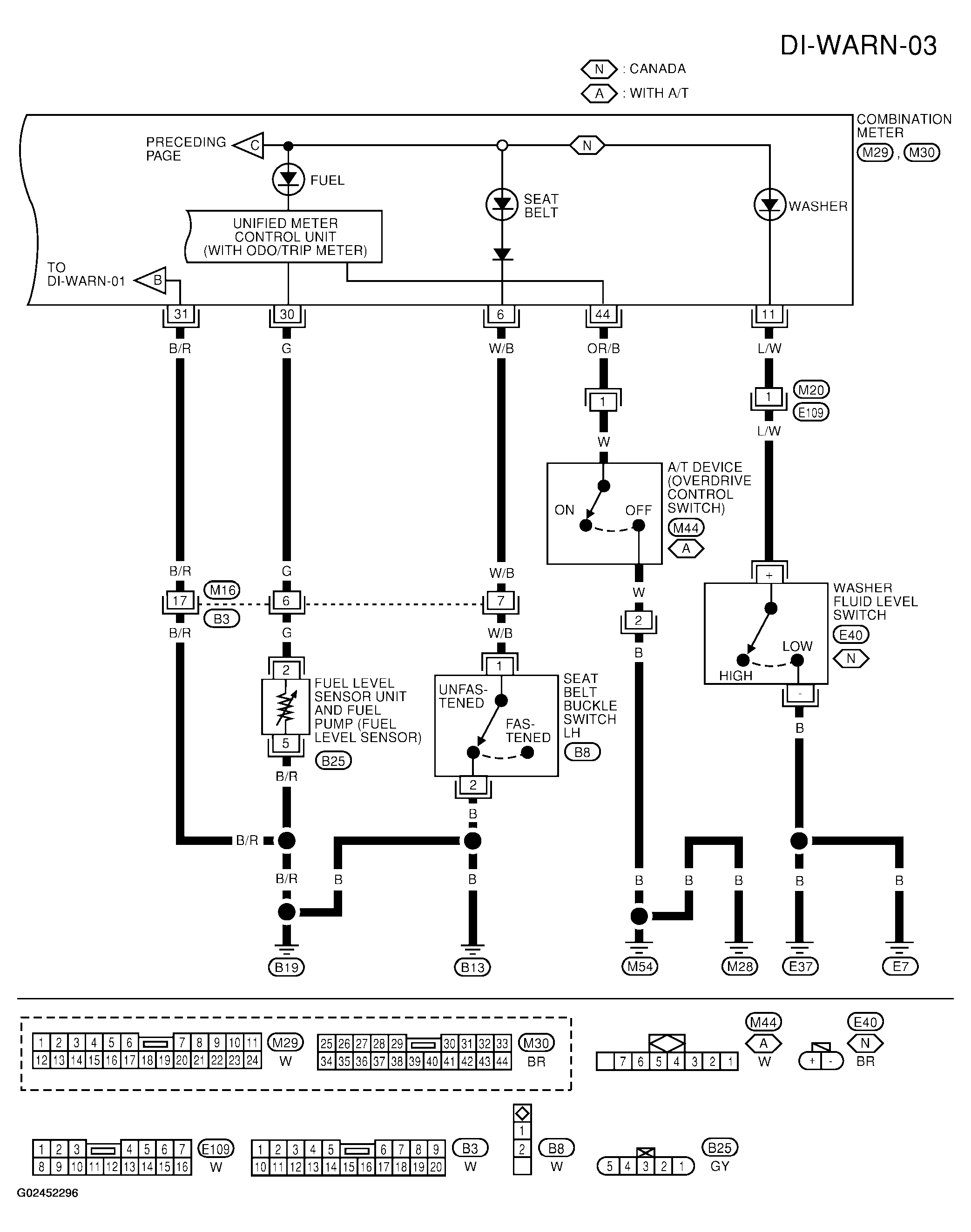

Fig 3: Wiring Diagram - DI-WARN-03 (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
