Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Driver Information System
>>
Warning Lamps
>>
Wiring Diagram - WARN -
>>
With Tachometer (Qr25DE Models)
With Tachometer (Qr25DE Models)

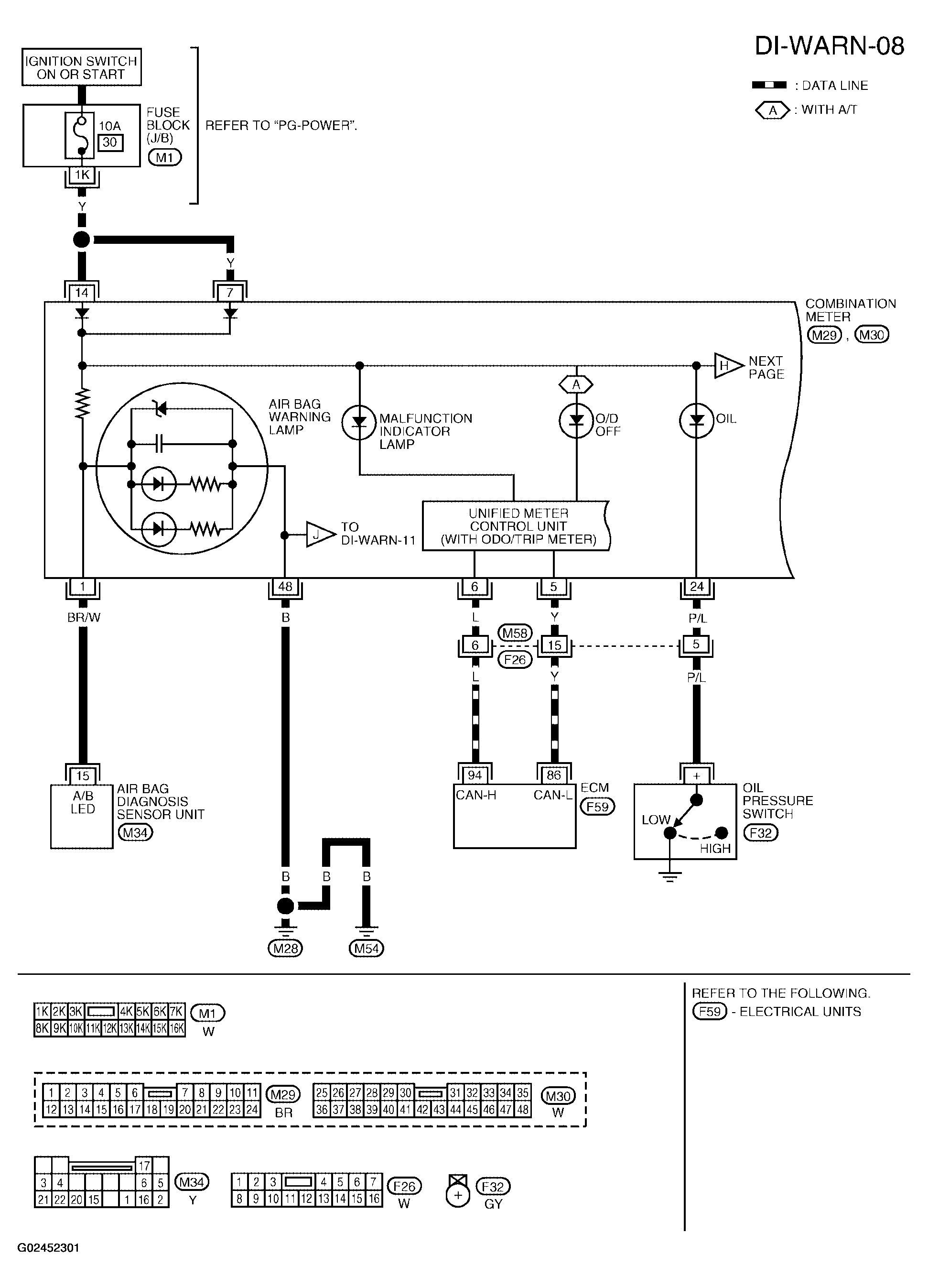

Fig 1: Wiring Diagram - DI-WARN-08 (With Tachometer QR25DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

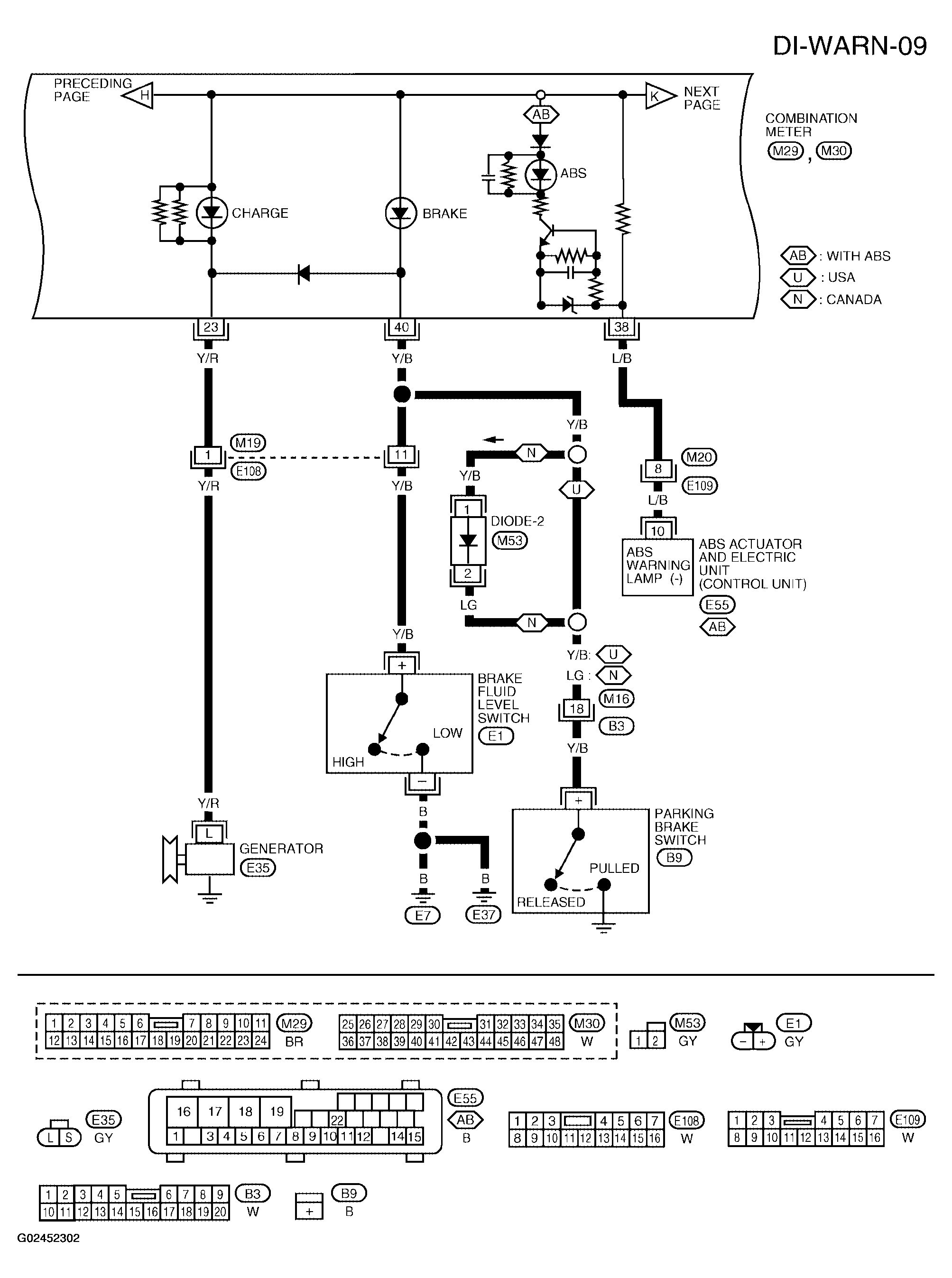

Fig 2: Wiring Diagram - DI-WARN-09 (With Tachometer QR25DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

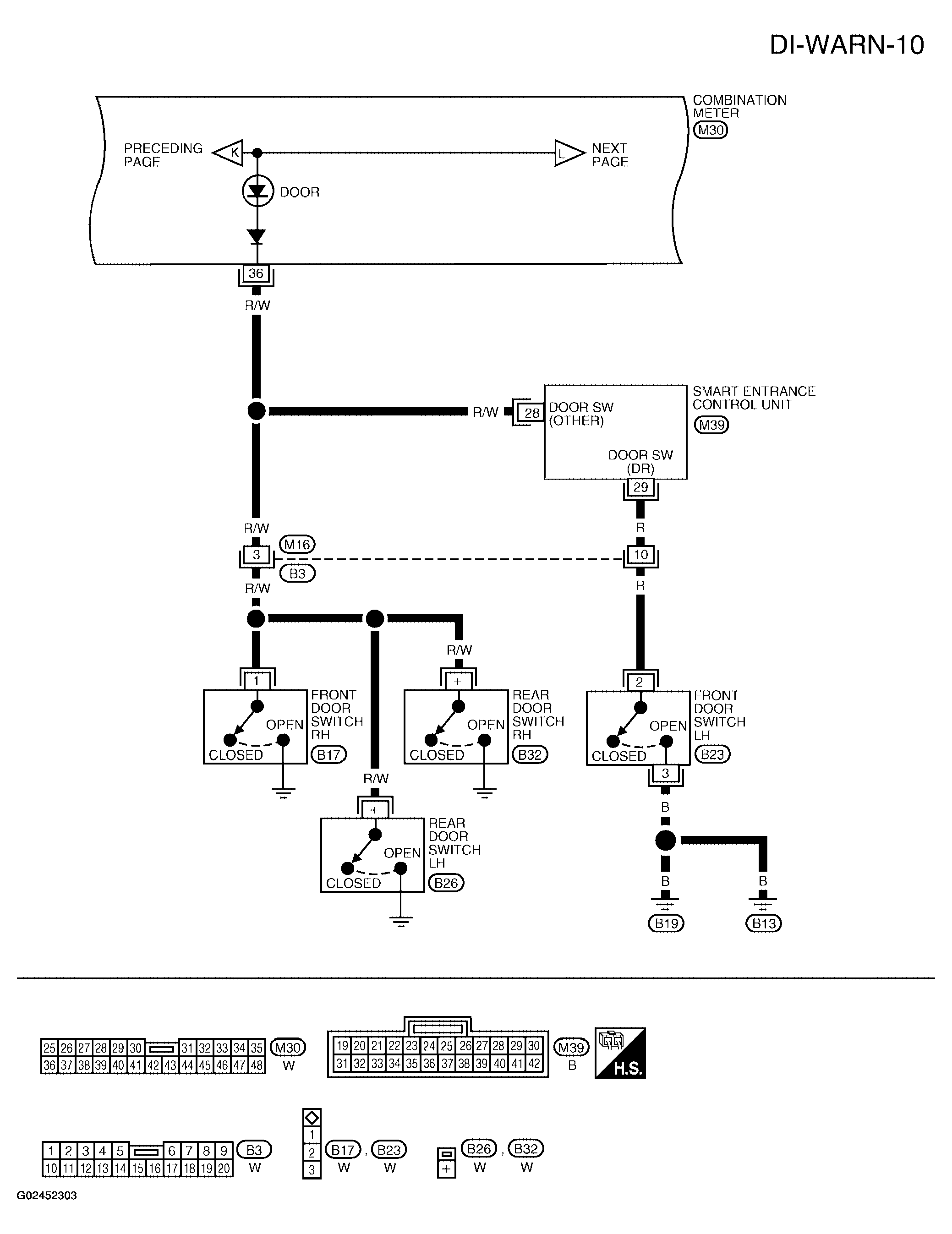

Fig 3: Wiring Diagram - DI-WARN-10 (With Tachometer QR25DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

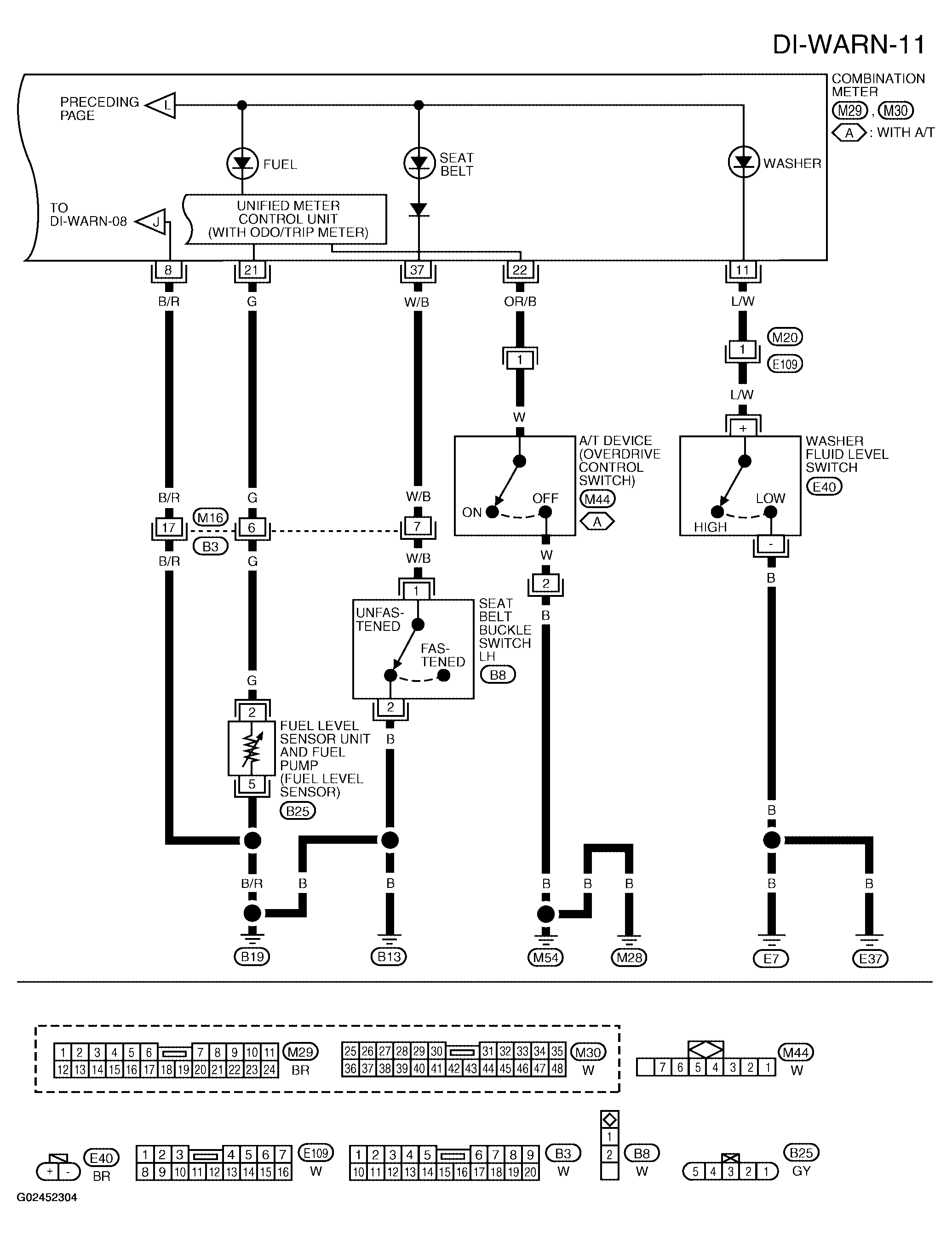

Fig 4: Wiring Diagram - DI-WARN-11 (With Tachometer QR25DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
