Sentra SE-R
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Driver Information System
>>
Warning Lamps
>>
Wiring Diagram - WARN -
>>
With Tachometer (QG18DE Models)
With Tachometer (QG18DE Models)

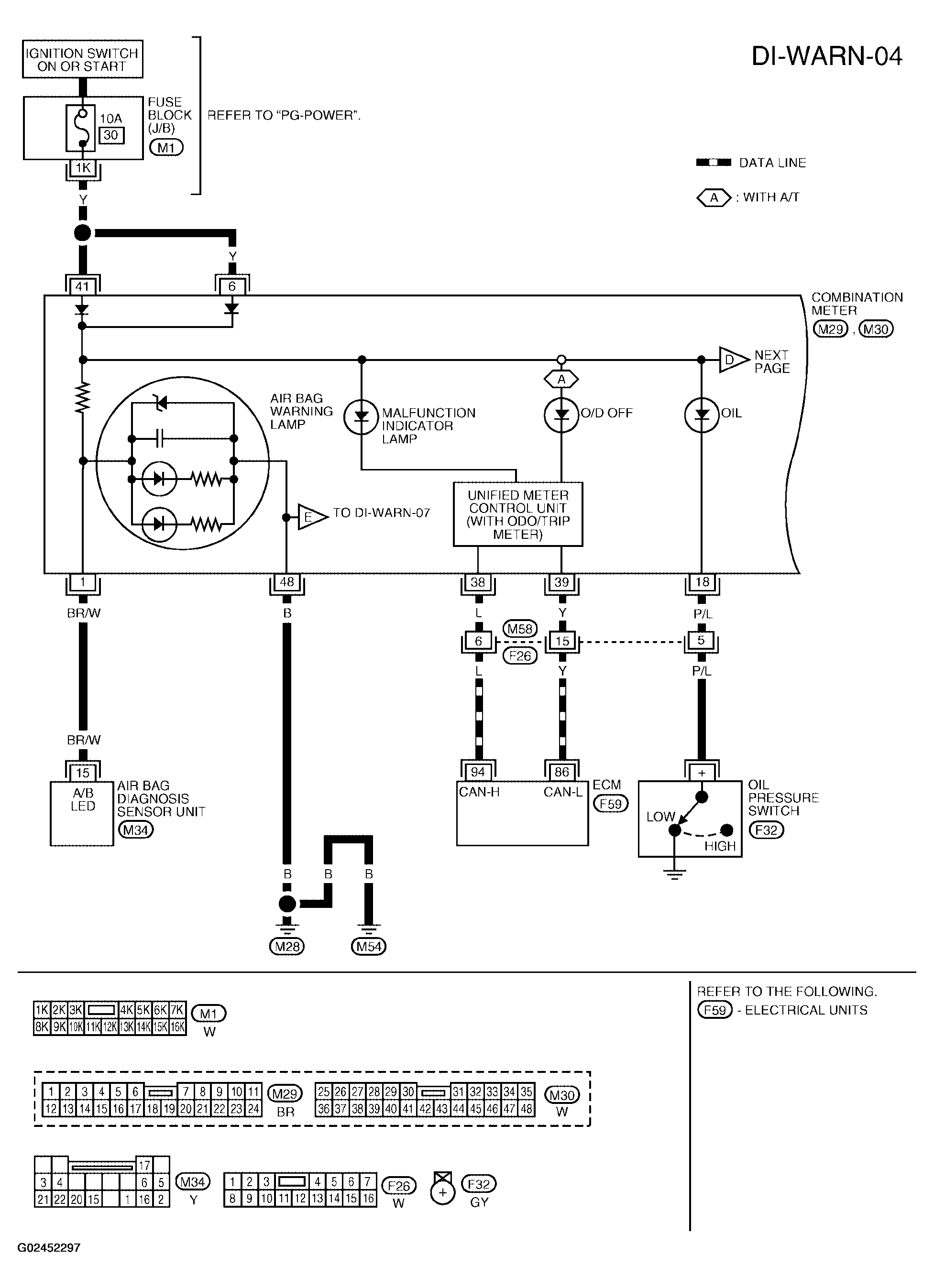

Fig 1: Wiring Diagram - DI-WARN-04 (With Tachometer QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

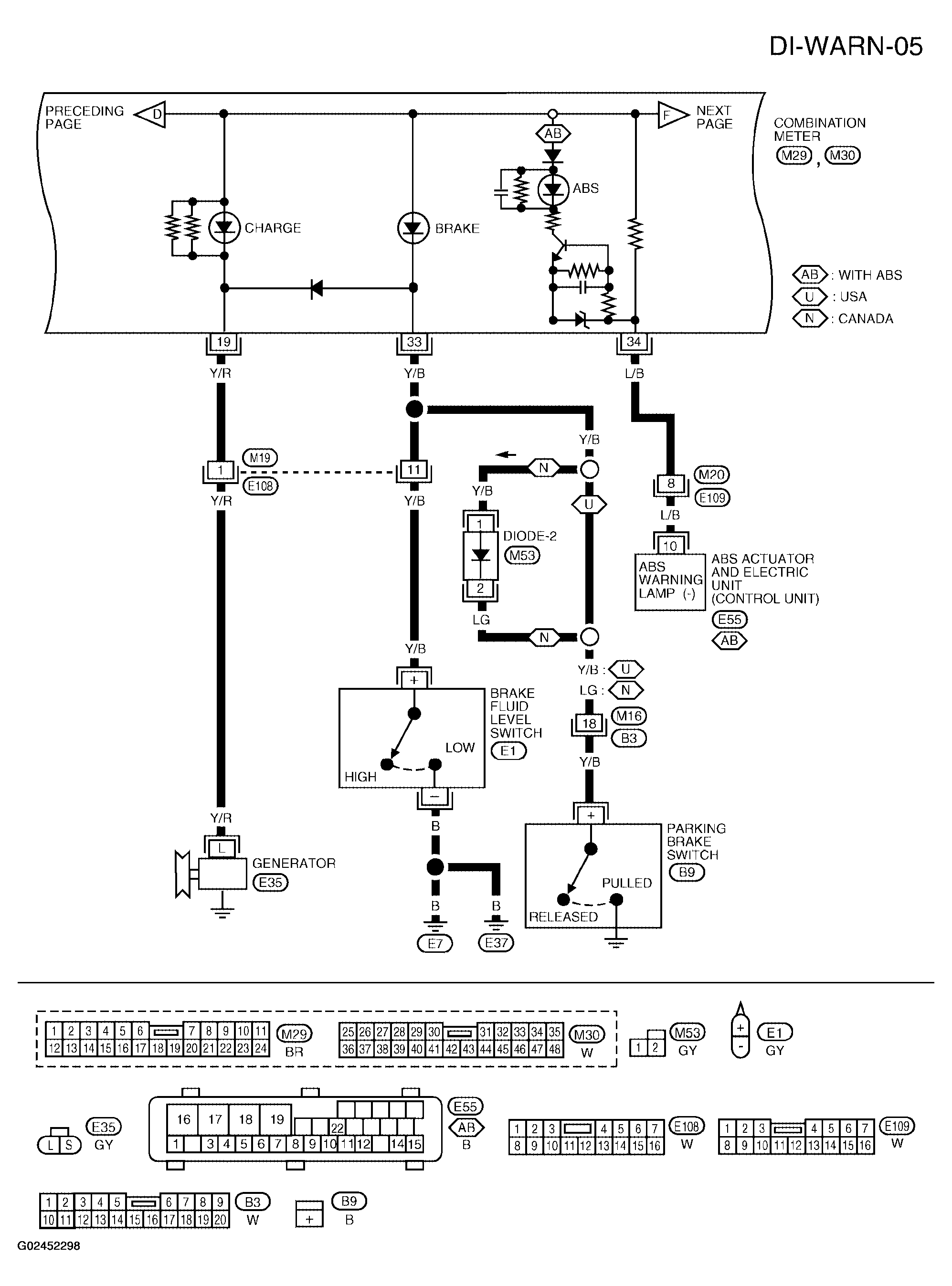

Fig 2: Wiring Diagram - DI-WARN-05 (With Tachometer QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

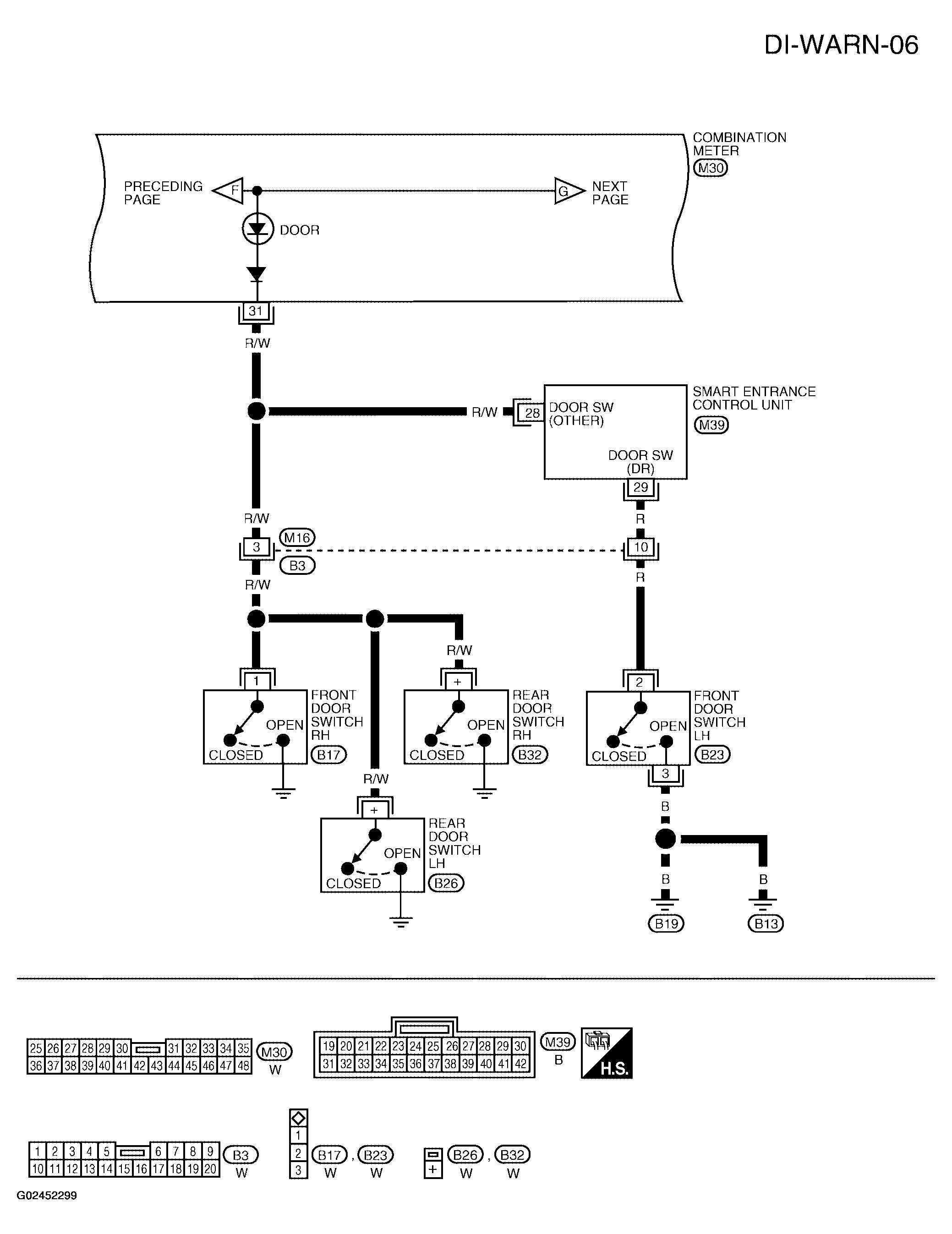

Fig 3: Wiring Diagram - DI-WARN-06 (With Tachometer QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

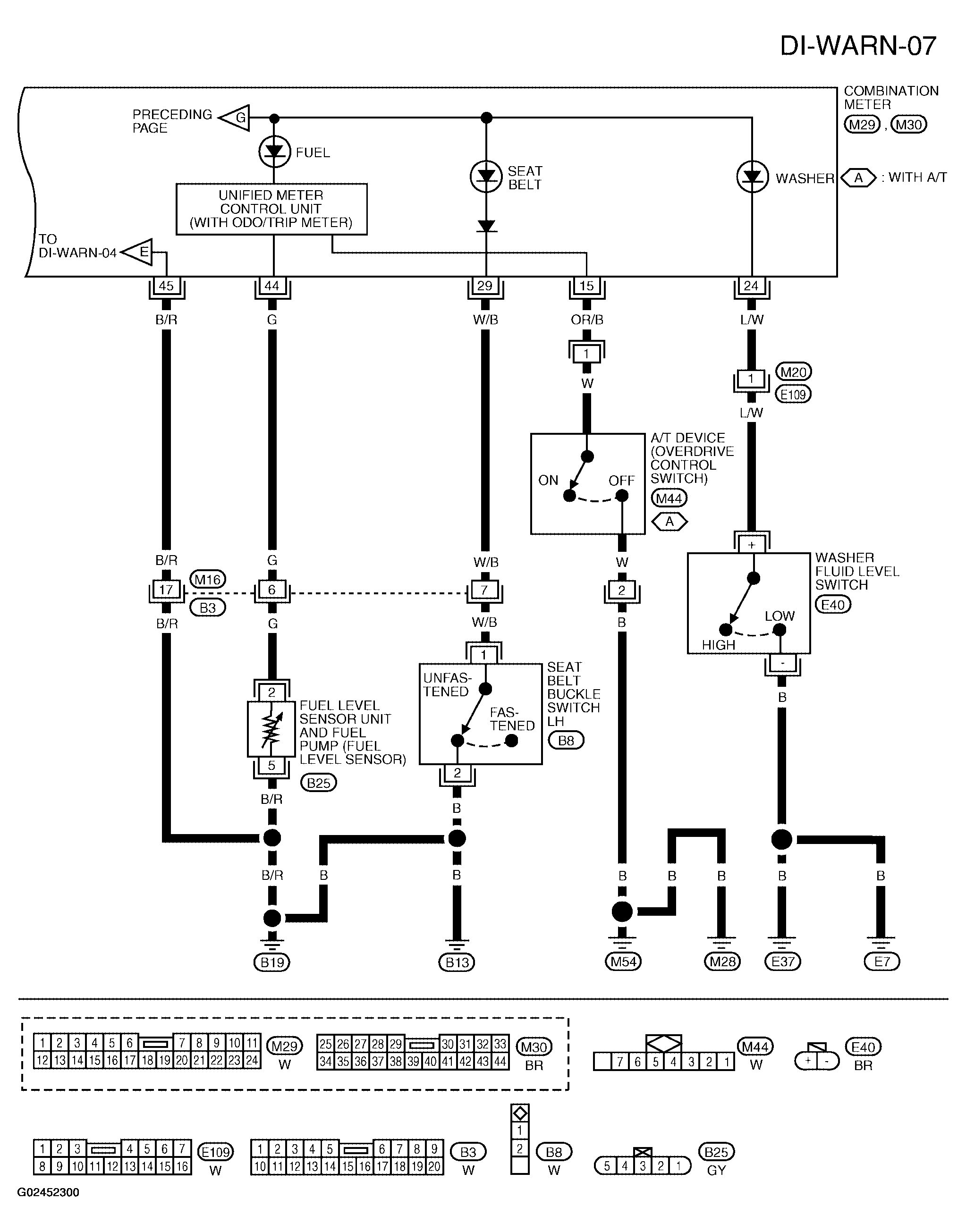

Fig 4: Wiring Diagram - DI-WARN-07 (With Tachometer QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
