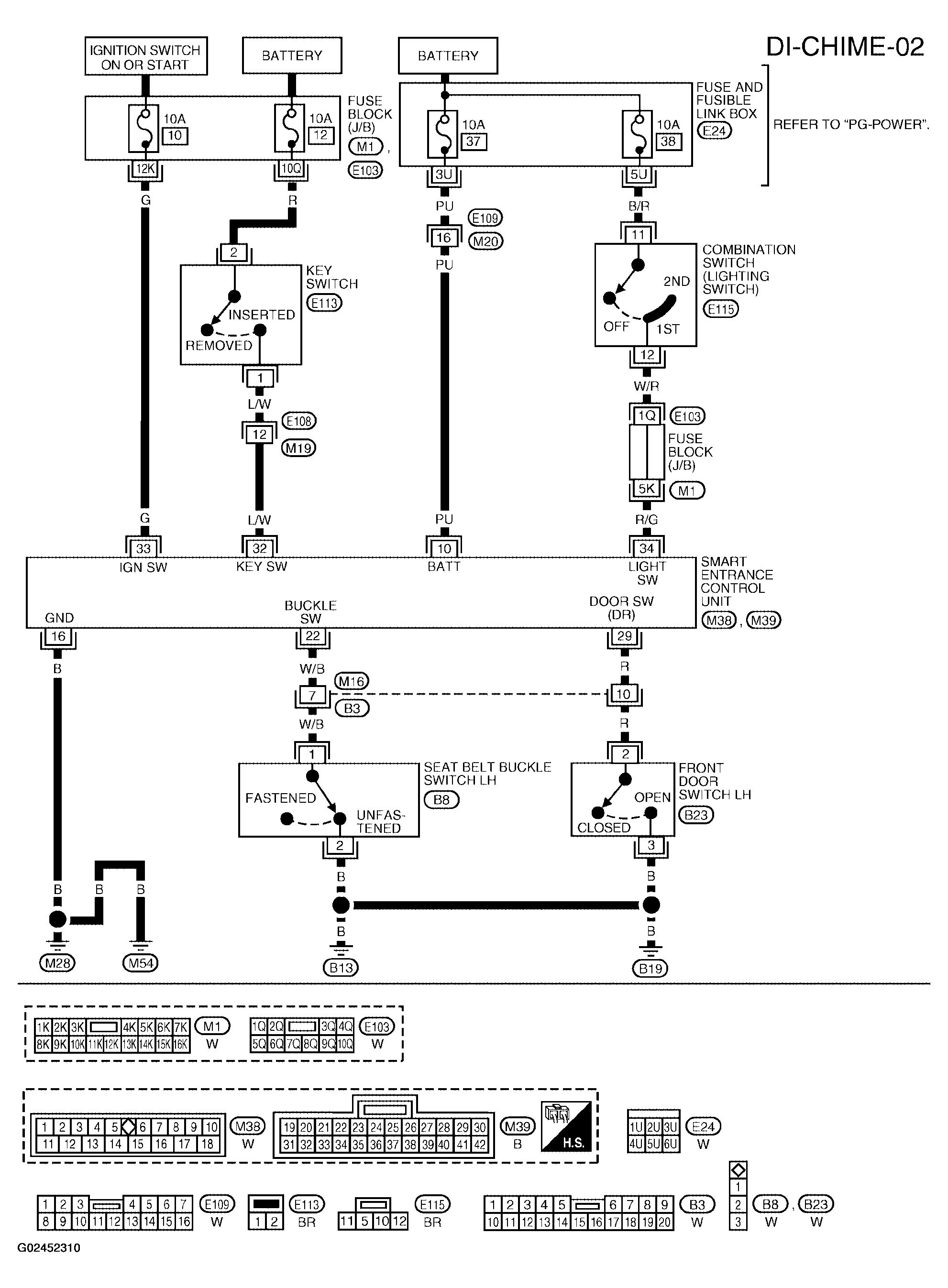

Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Gauges & Instrument Panels >> Driver Information System >> Warning Chime >> Wiring Diagram - CHIME - >> With Power Door Locks
