Removal and Installation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following figures for removal and installation procedures.

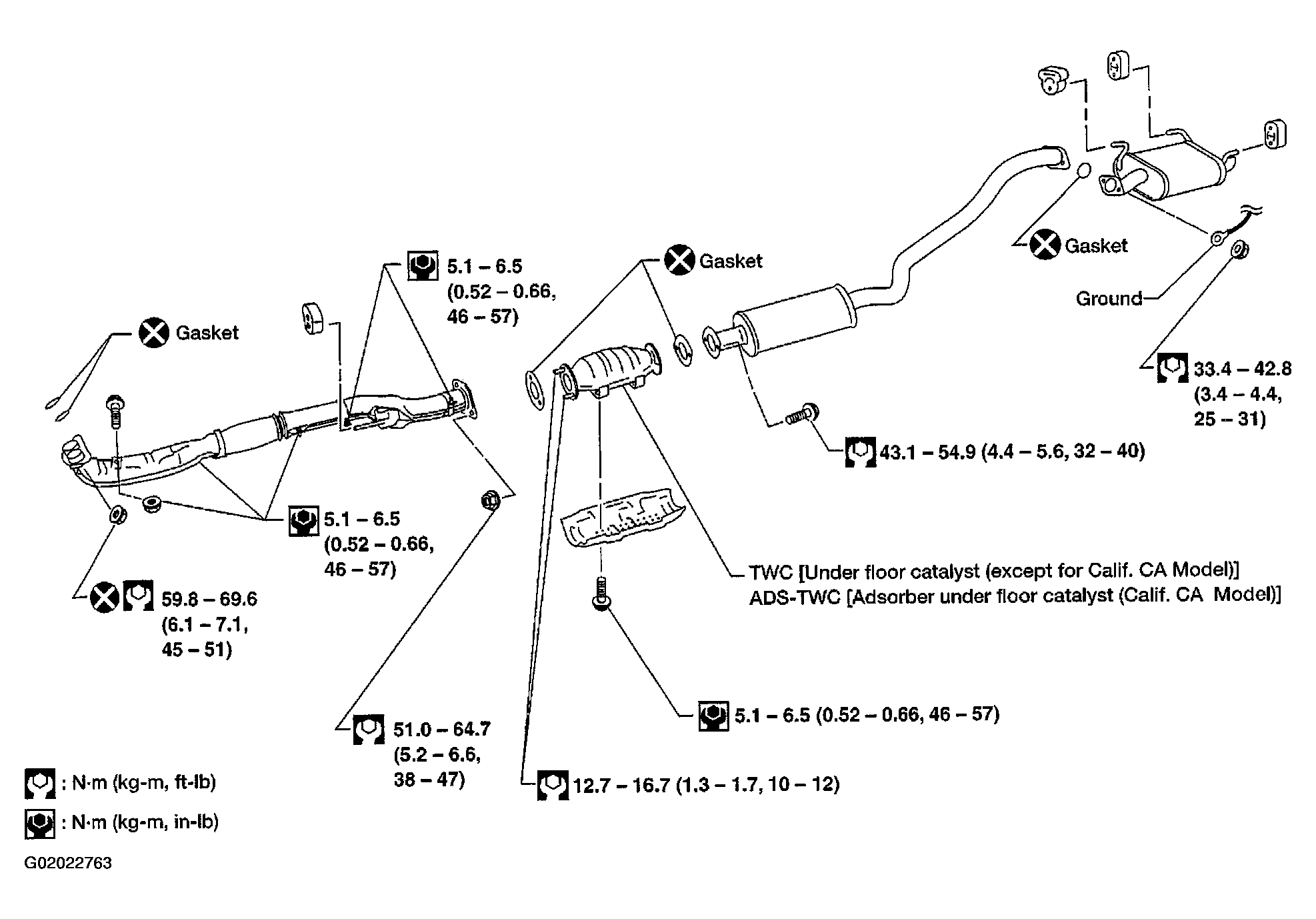

Fig 1: Exploded View Of QG18DE Exhaust System (Except Calif CA. Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Exploded View Of QG18DE Exhaust System (Calif CA. Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

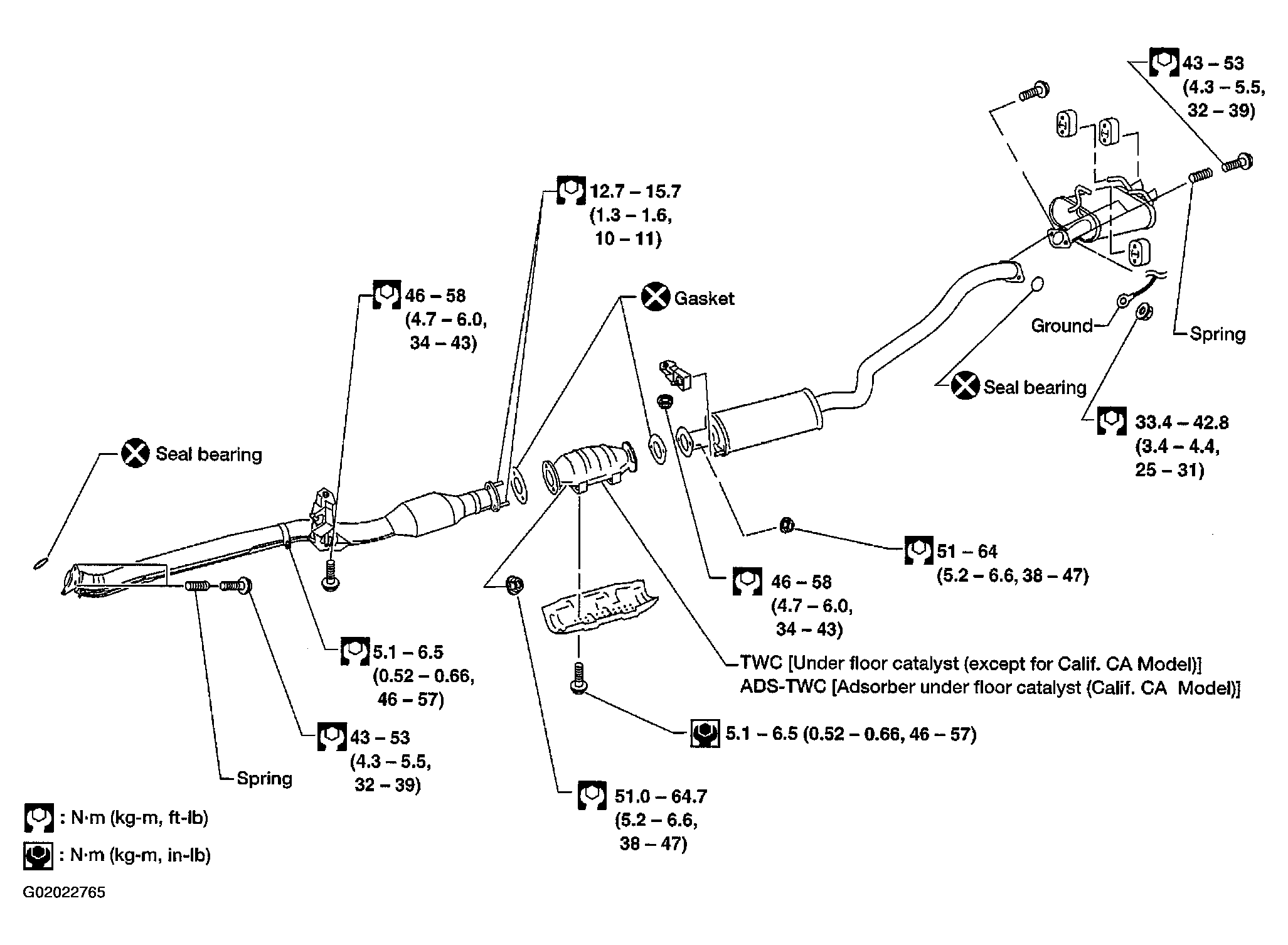

Fig 3: Exploded View Of QR25DE Exhaust System

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Always replace exhaust gaskets with new ones when reassembling.

Fig 4: Identifying Exhaust Hanger Components
Courtesy of NISSAN MOTOR CO., U.S.A.
For the QR25DE engine, install the front combination seal bearing as shown. Position the conical spring so that the wide end is against the flange as shown.
With engine running, check all tube connections for exhaust gas leaks, and entire system for unusual noises.
Check to ensure that mounting brackets and mounting insulators are installed properly and free from undue stress. Improper installation could result in excessive noise or vibration.
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; replace it with a new one.
Before installing a new oxygen sensor, clean exhaust system threads using oxygen sensor thread cleaner tool, J-43897-18 or J-43897-12, and apply anti-seize lubricant.
Do not over-tighten the oxygen sensor. Doing so may cause damage to the oxygen sensor, resulting in the MIL coming on.
If the Calif. CA model's TWC (manifold three way catalyst) or ADS-TWC (adsorber pre-catalyst) replacement is necessary, always replace the TWC together with the ADS-TWC. Never replace these catalysts individually. The TWC and the ADS-TWC are only available together as a kit.
