Symptom Matrix Chart 1 (Self-Diagnosis Related Item)

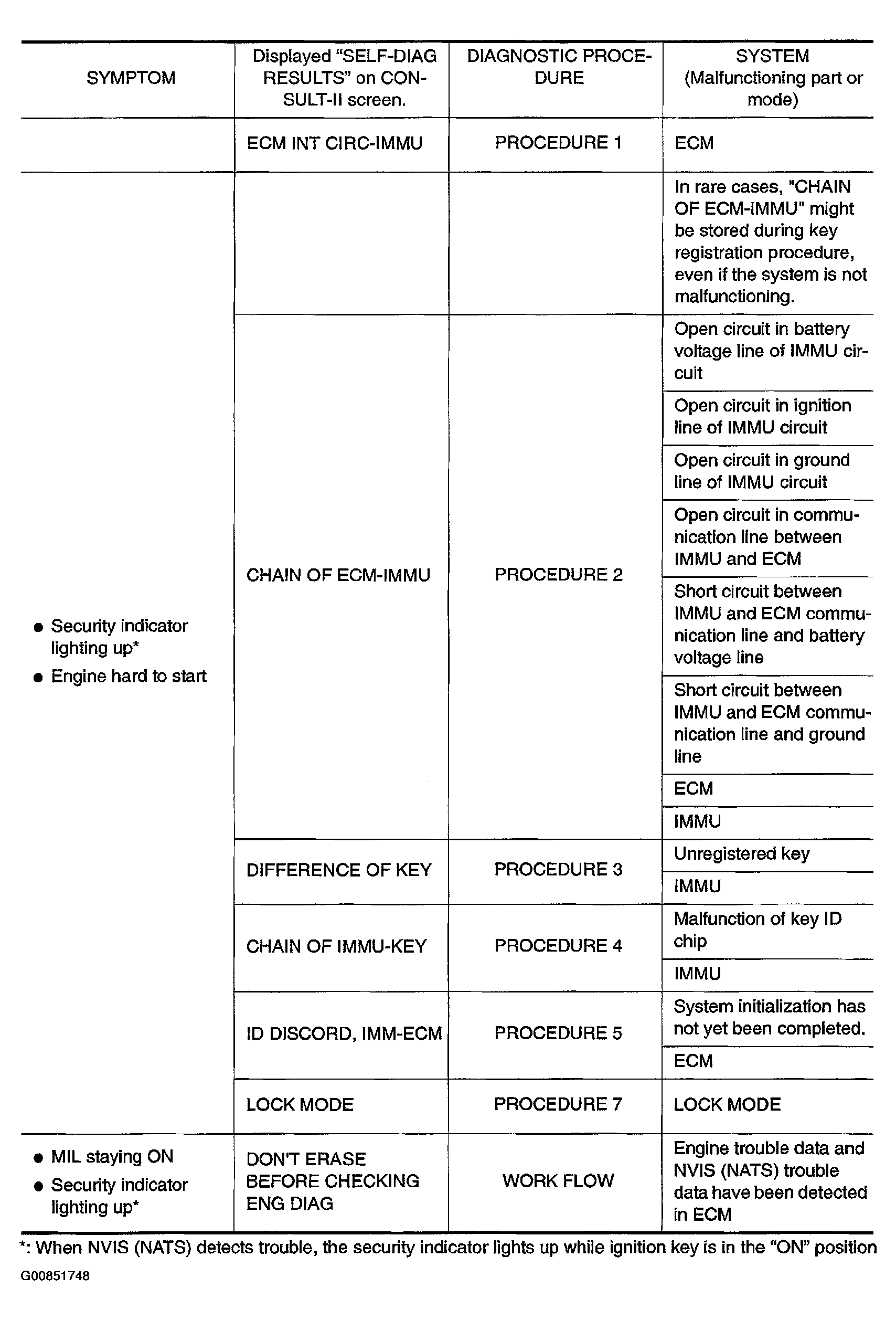

Fig 1: Identifying Symptom Matrix Chart 1 (Self-Diagnosis Related Item)
G00851748Courtesy of NISSAN MOTOR CO., U.S.A.
