Use the Chart Below to Help You Find the Cause of the Symptom.

  1. Locate the area where noise occurs.
  2. Confirm the type of noise.
  3. Specify the operating condition of engine.
  4. Check specified noise source.

    If necessary, repair or replace these parts.

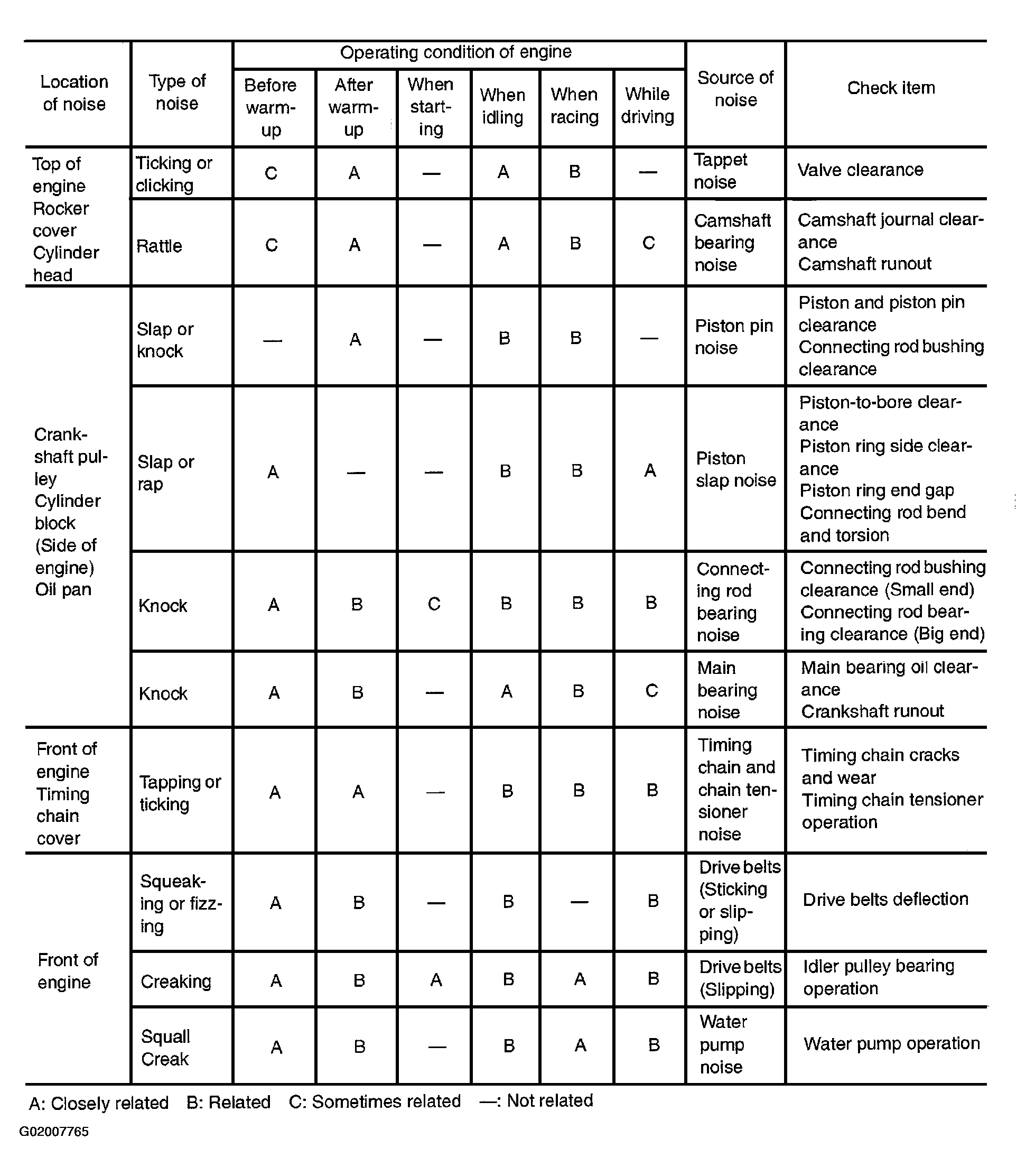

    Fig 1: Noise, Vibration, & Harshness (NVH) Troubleshooting Chart
    G02007765Courtesy of NISSAN MOTOR CO., U.S.A.
