Wheel Cylinder Overhaul

Check all internal parts for wear, rust and damage. Replace if necessary.
Be careful not to scratch cylinder body when installing pistons.

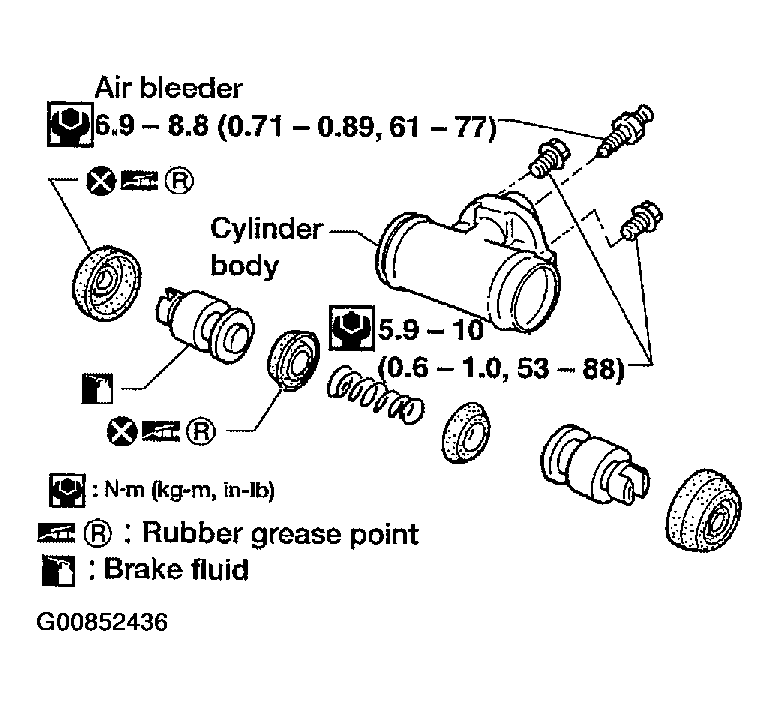

Fig 1: Exploded View Of Wheel Cylinder With Torque Specifications

G00852436

Courtesy of NISSAN MOTOR CO., U.S.A.
