Wiring Diagram - NATS-: Notes

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

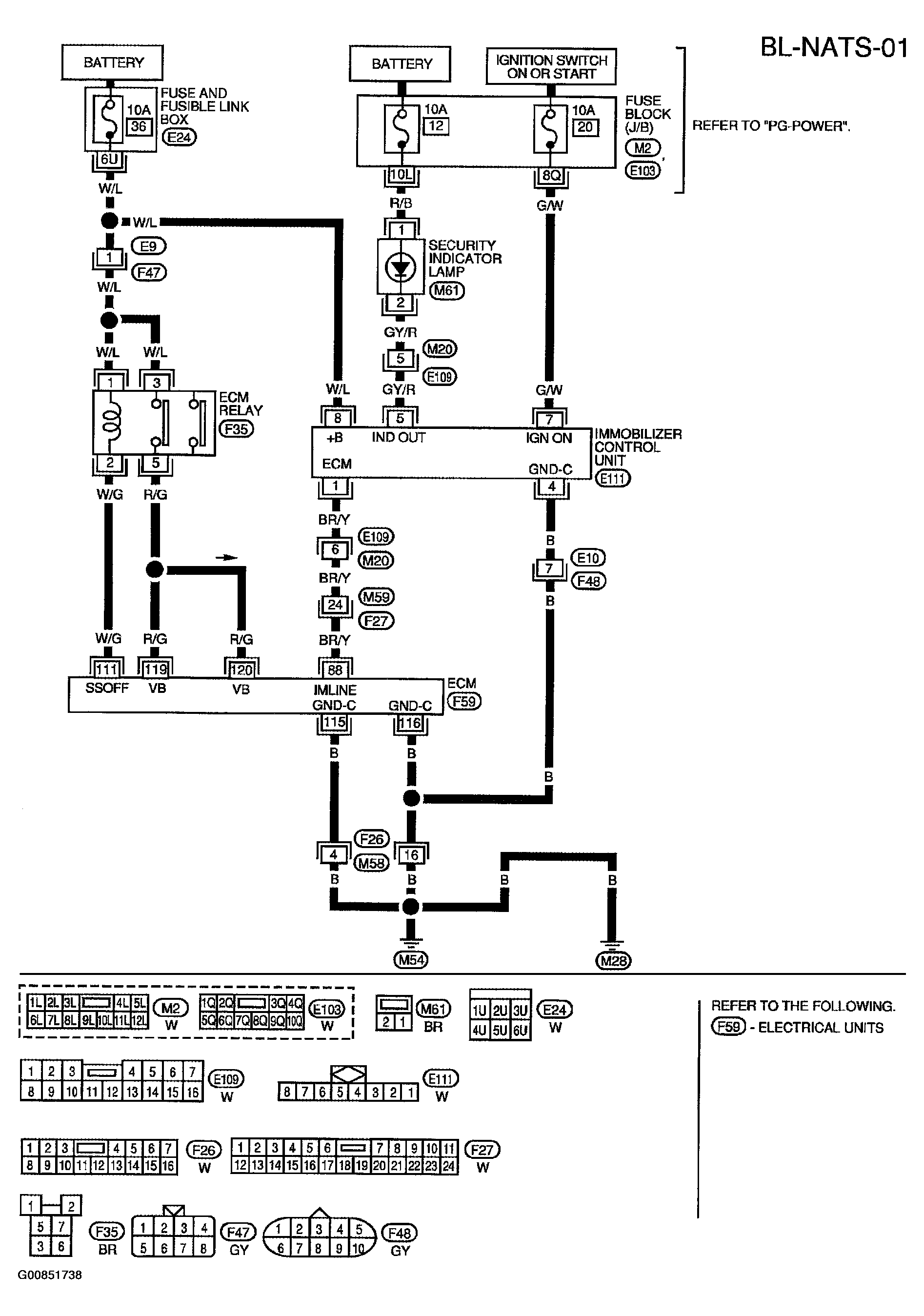

Fig 1: Wiring Diagram - BL-NATS-01

G00851738

Courtesy of NISSAN MOTOR CO., U.S.A.
