Diagnostic Procedure 3

Self-diagnostic results:

"DIFFERENCE OF KEY" displayed on CONSULT-II screen

1. CONFIRM SELF-DIAGNOSTIC RESULTS

   Confirm SELF-DIAGNOSTIC RESULTS "DIFFERENCE OF KEY" displayed on CONSULT-II screen.

   Fig 1: Identifying Confirm Self-Diagnostic Results

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is CONSULT-II screen displayed as above?

   1. Yes: GO TO 2.
   2. No: GO TO SYMPTOM MATRIX CHART 1.
2. Perform initialization with CONSULT-II

   Perform initialization with CONSULT-II. Reregister all NVIS (NATS) ignition key IDs.

   For initialization, refer to "CONSULT-II OPERATION MANUAL IVIS/NVIS".

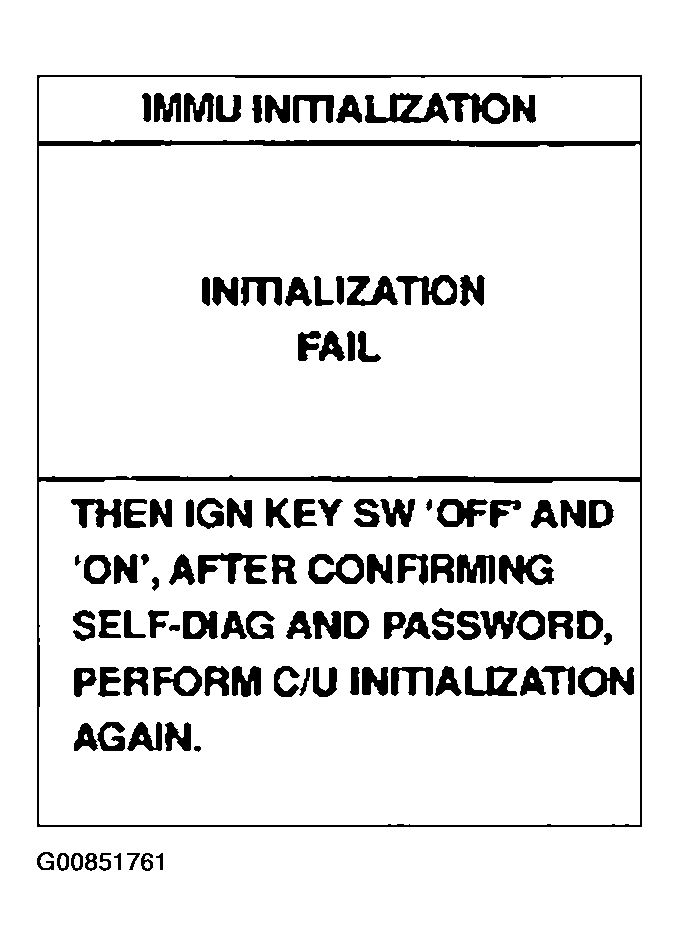

   Fig 2: Identifying Perform Initialization With Consult-Ii

   Courtesy of NISSAN MOTOR CO., U.S.A.
   NOTE: If the initialization is not completed or fails, CONSULT-II shows above message on the screen.

   Can the system be initialized?

   1. Yes
      • Start engine. (END)
      • (Ignition key ID was unregistered. Ref. part No. D)
   2. No
      • NVIS (NATS) IMMU is malfunctioning.
      • Replace NVIS (NATS) IMMU. Ref. part No. A
      • Perform initialization with CONSULT-II.
      • For initialization, refer to "CONSULT-II OPERATION MANUAL IVIS/NVIS".
