Wiring Diagram - TURN -

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

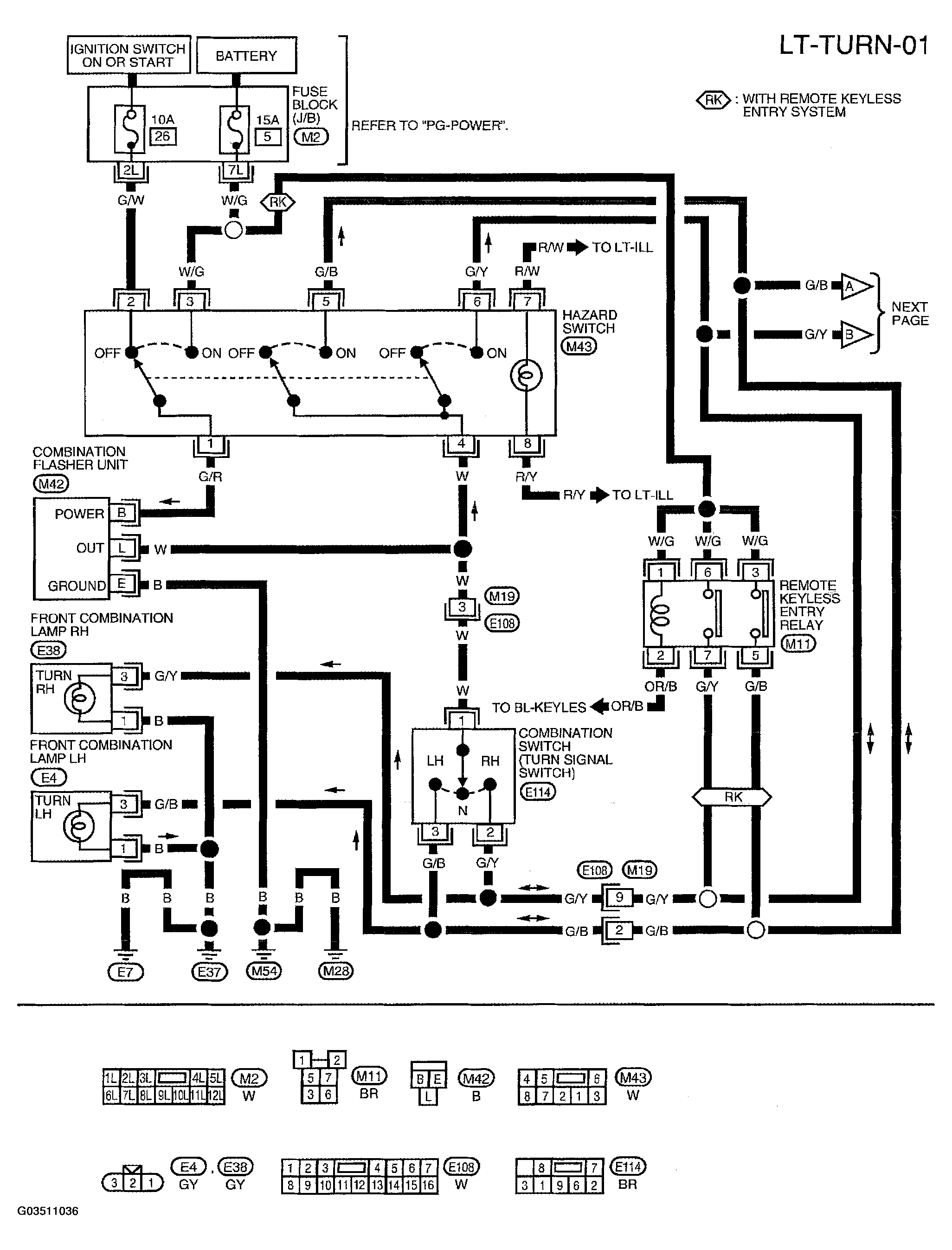

Fig 1: Wiring Diagram - LT-TURN-01
G03511036Courtesy of NISSAN MOTOR CO., U.S.A.

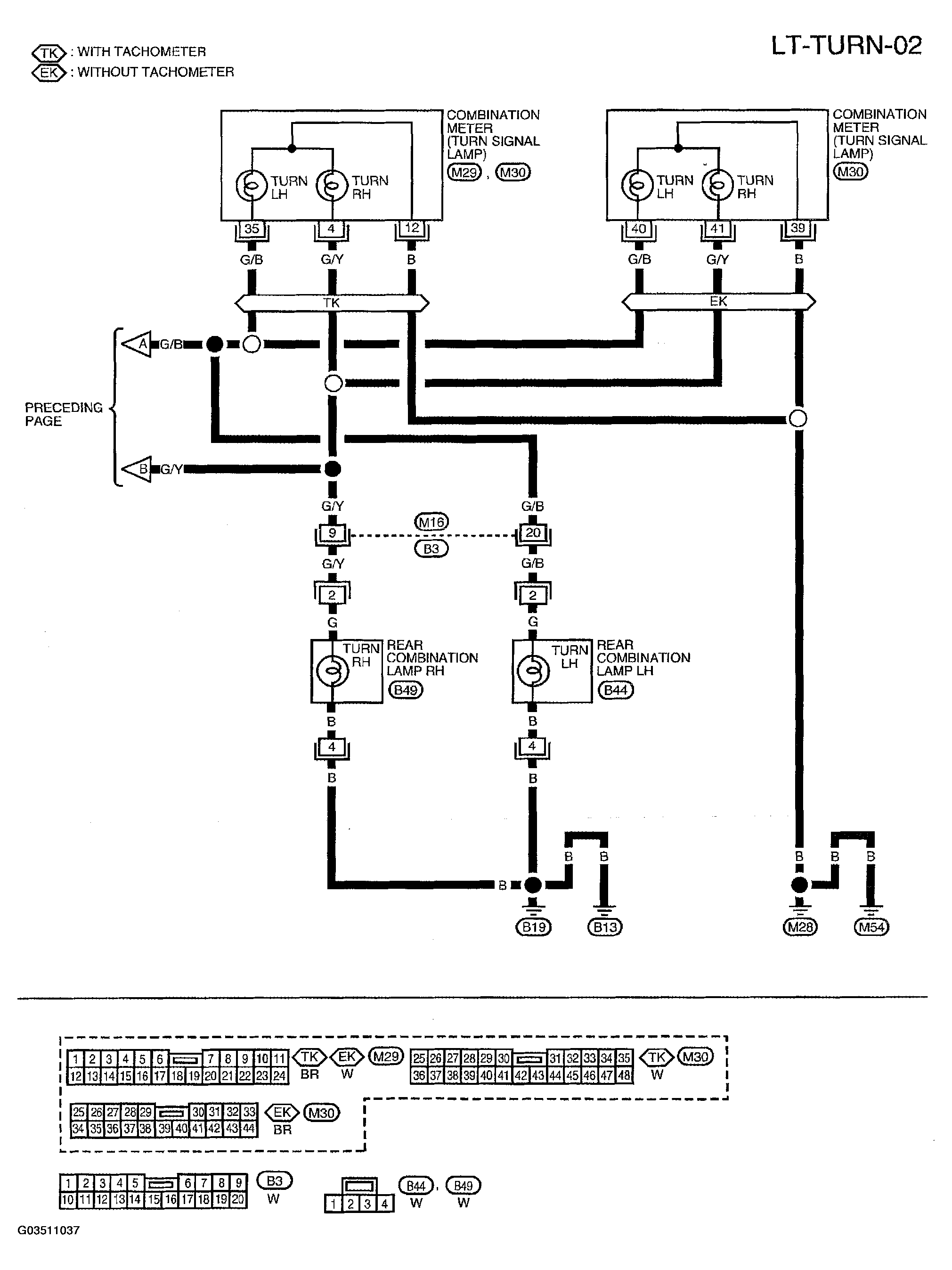

Fig 2: Wiring Diagram - LT-TURN-02
G03511037Courtesy of NISSAN MOTOR CO., U.S.A.
