Wiring Diagram - TAIL/L -

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

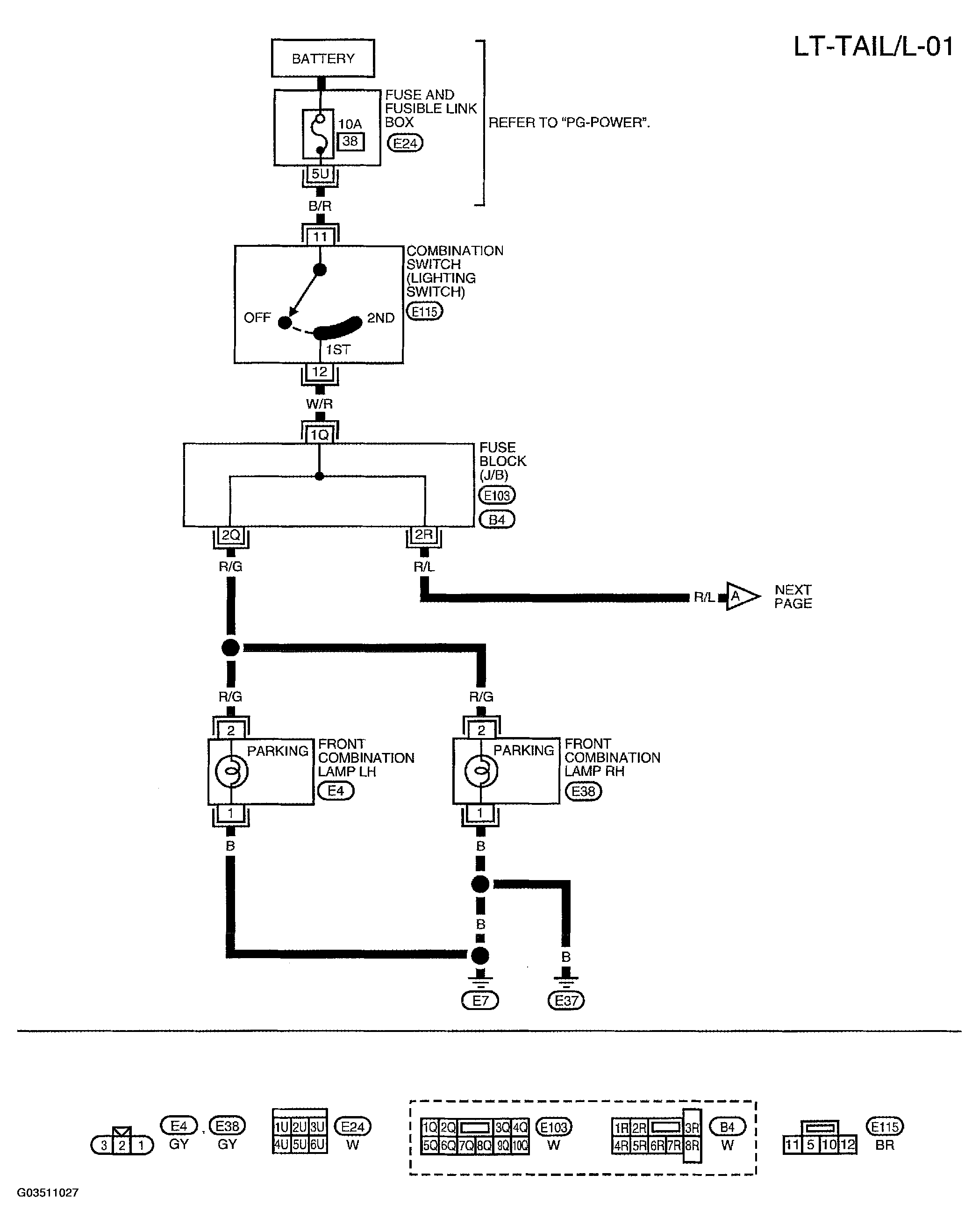

Fig 1: Wiring Diagram - LT-TAIL/L-01
G03511027Courtesy of NISSAN MOTOR CO., U.S.A.

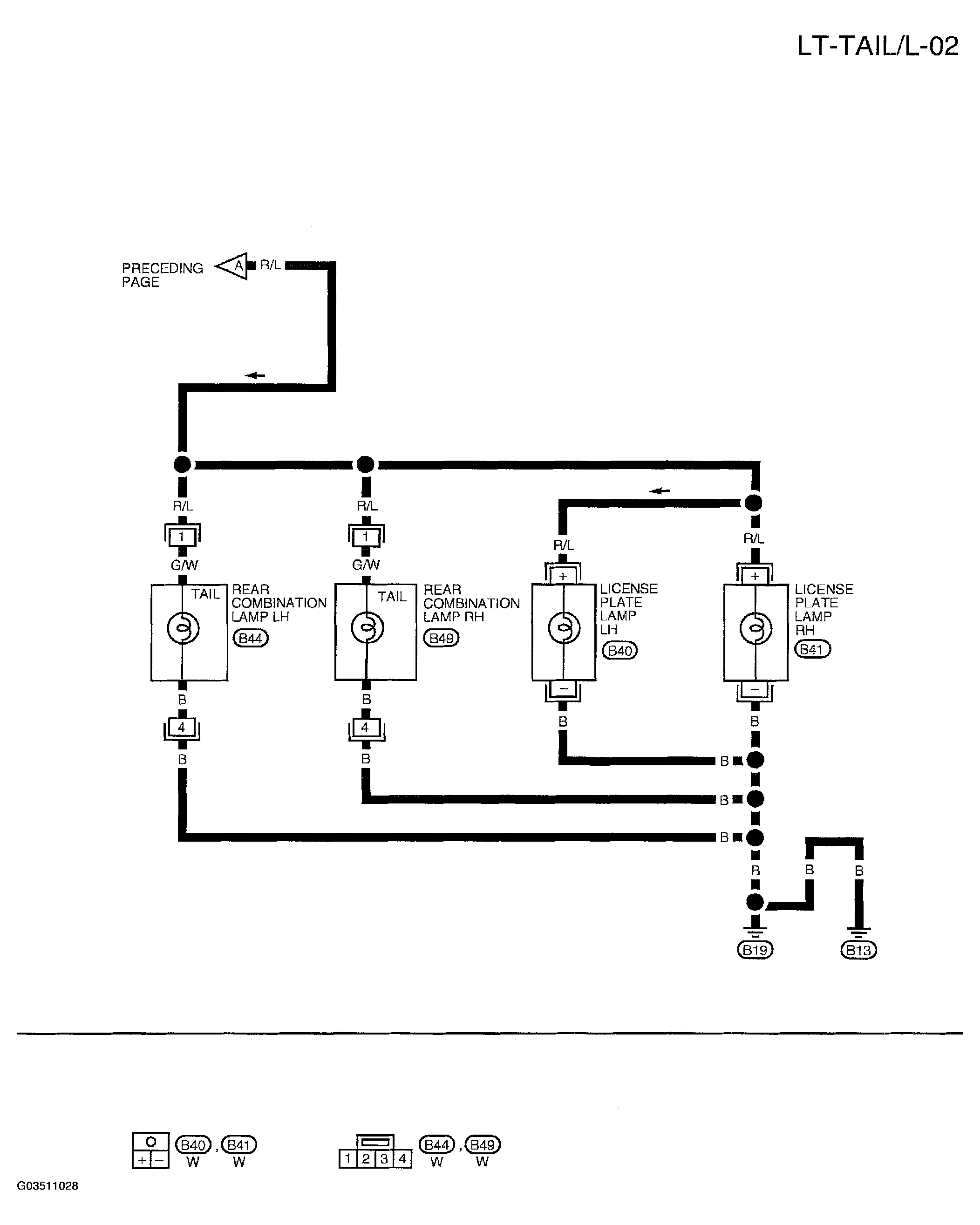

Fig 2: Wiring Diagram - LT-TAIL/L-02
G03511028Courtesy of NISSAN MOTOR CO., U.S.A.
