Model QG18DE

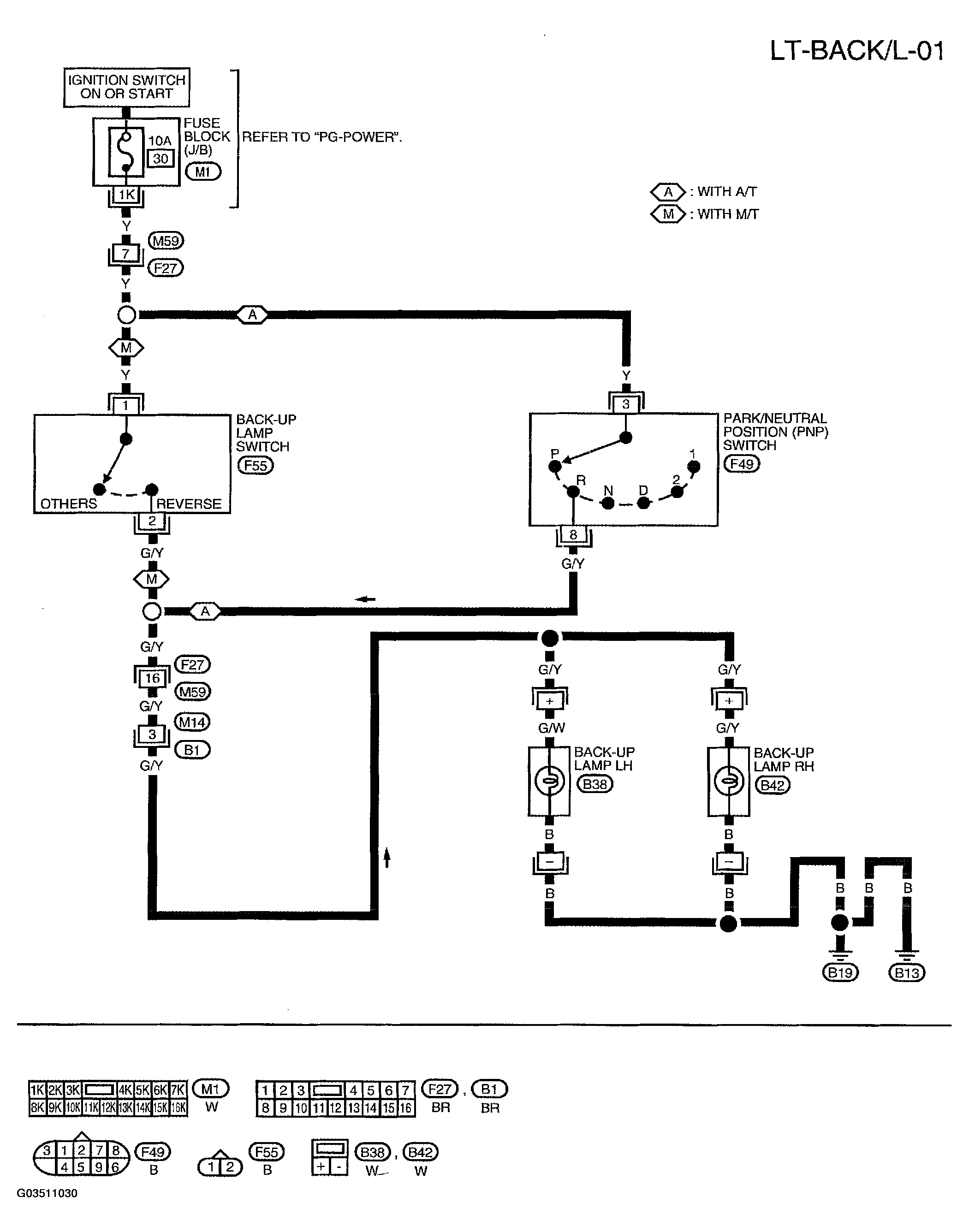

Fig 1: Wiring Diagram - LT-BACK/L-01 - (QG18DE)

G03511030

Courtesy of NISSAN MOTOR CO., U.S.A.
