License Plate Lamp

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. While pressing pawl on reverse side, push license plate towards you to remove.
  2. Disconnect the license plate lamp connector.
  3. Install in the reverse order of removal.

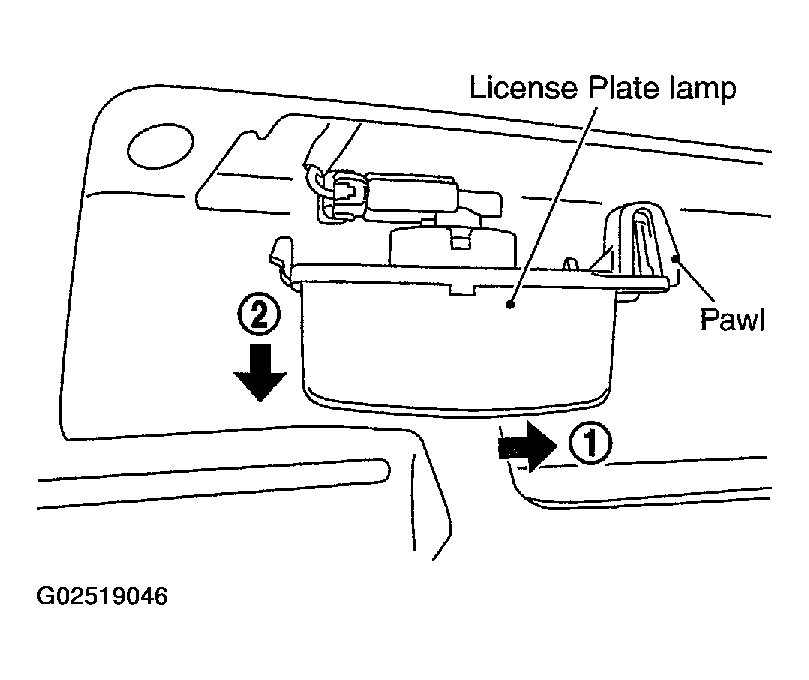

    Fig 1: Removing & Installing License Plate Lamp
    G02519046Courtesy of NISSAN MOTOR CO., U.S.A.
