Front Side Marker Lamp

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a slotted screwdriver or similar tool into fender protector gap to push front side marker lamp metal clip in direction 1 (see figure) while pulling in direction 2. Remove from vehicle.
  2. Disconnect connectors of front side marker lamp.
  3. Install in the reverse order of removal.

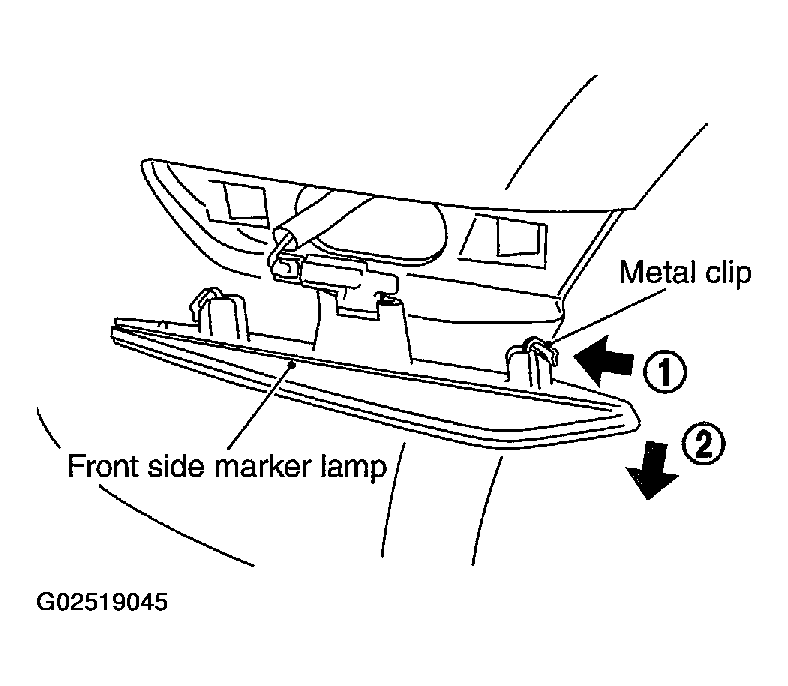

    Fig 1: Removing/Installing Front Side Marker Lamp
    G02519045Courtesy of NISSAN MOTOR CO., U.S.A.
