How To Follow Test Groups In Trouble Diagnoses

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

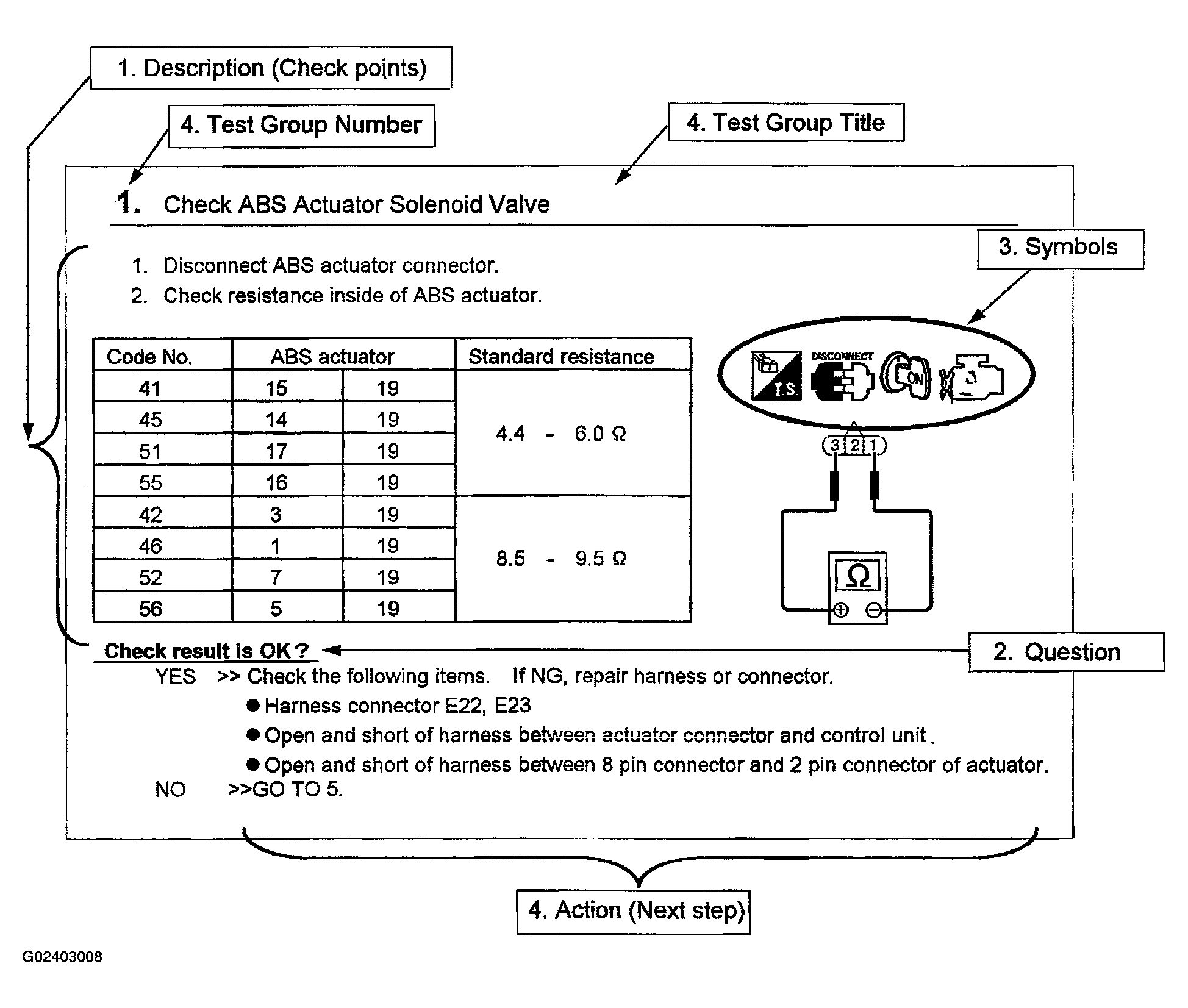

Fig 1: Displaying Trouble Diagnoses Test Groups

Courtesy of NISSAN MOTOR CO., U.S.A.

Work And Diagnostic Procedure
Start to diagnose a problem using procedures indicated in enclosed test groups.
Questions And Required Results
Questions and required results are indicated in bold type in test group.

The meaning of are as follows:
1. Battery voltage: 11-14V or approximately 12V
2. Voltage: Approximately 0V/Less than 1V
Symbol used in illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem, familiarize yourself with each symbol. Refer to CONNECTOR SYMBOLS and KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES .
Action items
Next action for each test group is indicated based on result of each question. Test group number is shown in the left upper portion of each test group.
