(N) Instrument Lower Passenger Panel and Glove Box

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws with power tool.
  2. Pull back to your side, and disconnect clips, and remove instrument lower passenger panel and glove box.
  3. Remove screws of damper wire portion.
  4. Disconnect glove box pins, and remove glove box.
  5. Remove screws on back side of instrument lower passenger panel, and remove damper.

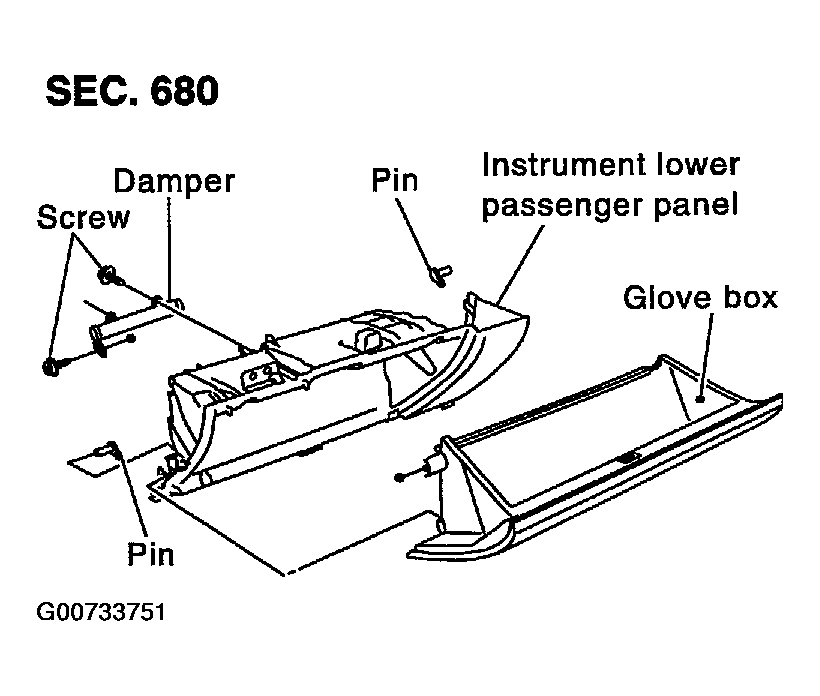

    Fig 1: Exploded View Of Instrument Lower Passenger Panel and Glove Box
    G00733751Courtesy of NISSAN MOTOR CO., U.S.A.
