Cluster Lid A

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

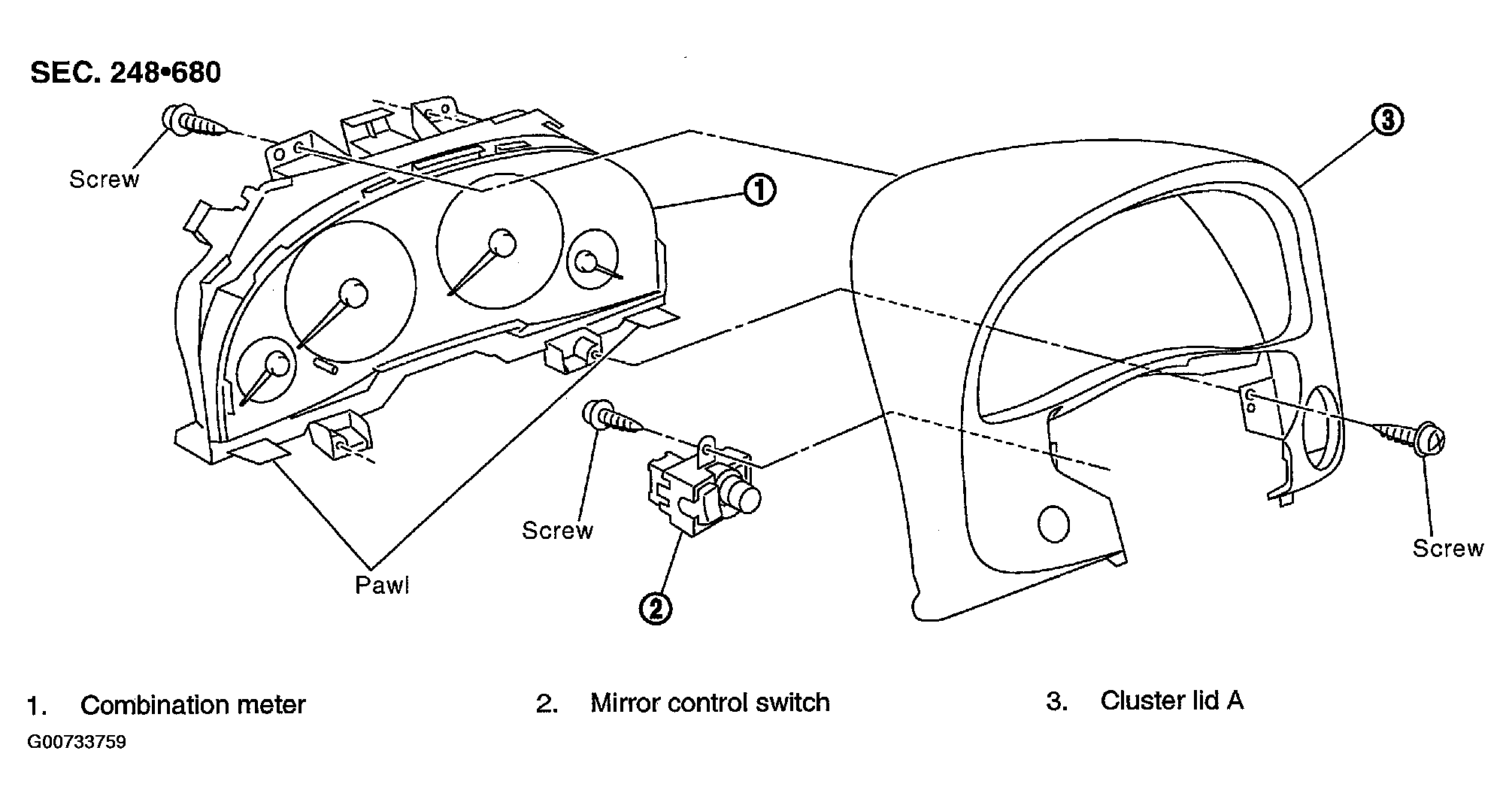

Fig 1: Exploded View Of Combination Meter
G00733759Courtesy of NISSAN MOTOR CO., U.S.A.

Disassembly

  1. Remove screws, and then remove mirror control switch.
  2. Remove screws and disconnect lower side of pawls, and then remove combination meter.

Assembly

Assemble in the reverse order of disassembly.
