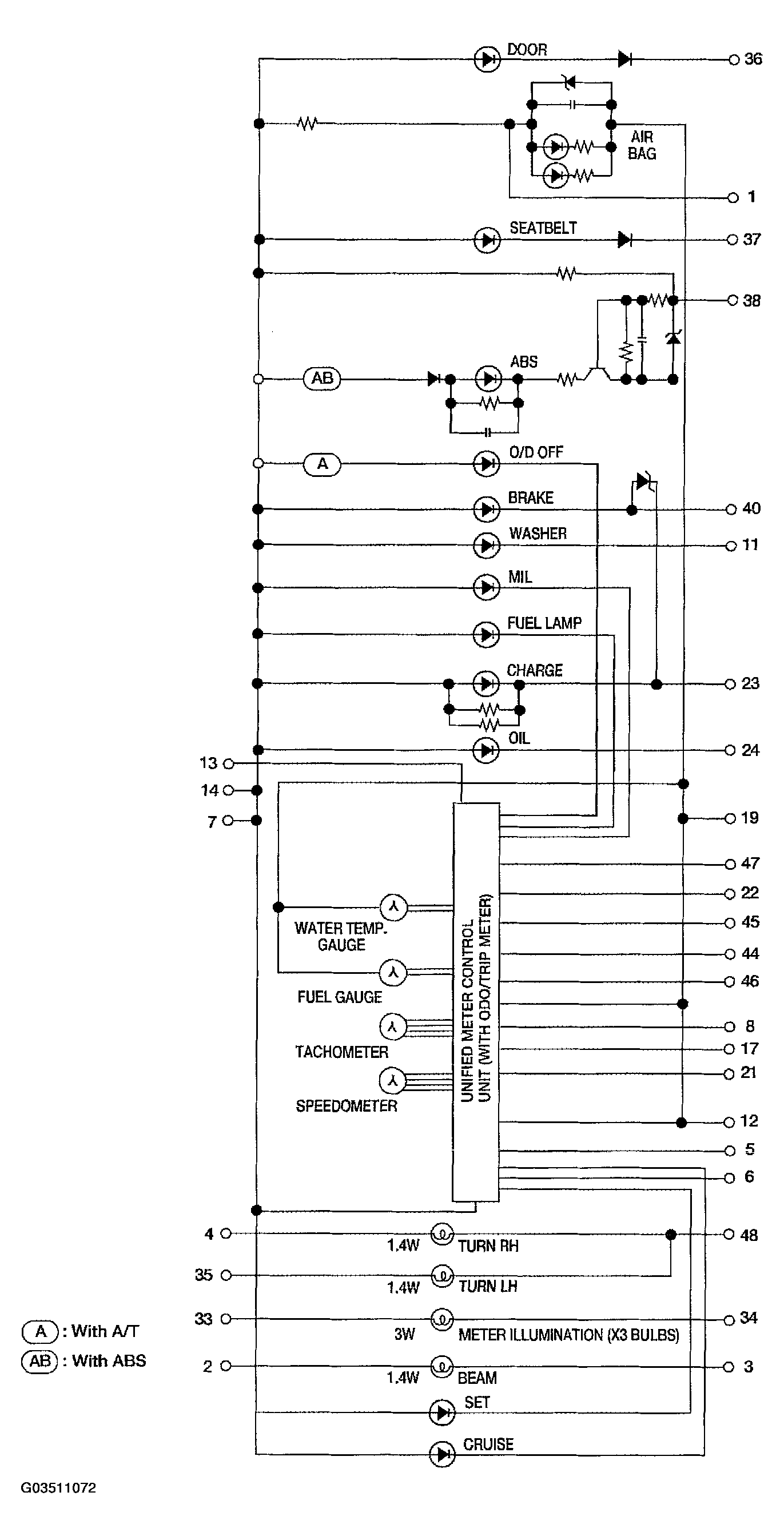

Home >> Nissan-Datsun >> 2004 >> Sentra Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meters And Gauges >> Meters And Gauges >> Schematic >> With Tachometer (Qr25DE Models)
