Wiring Diagram - AT - NONDTC

WARNING: This page is about a different variant/trim than selected.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

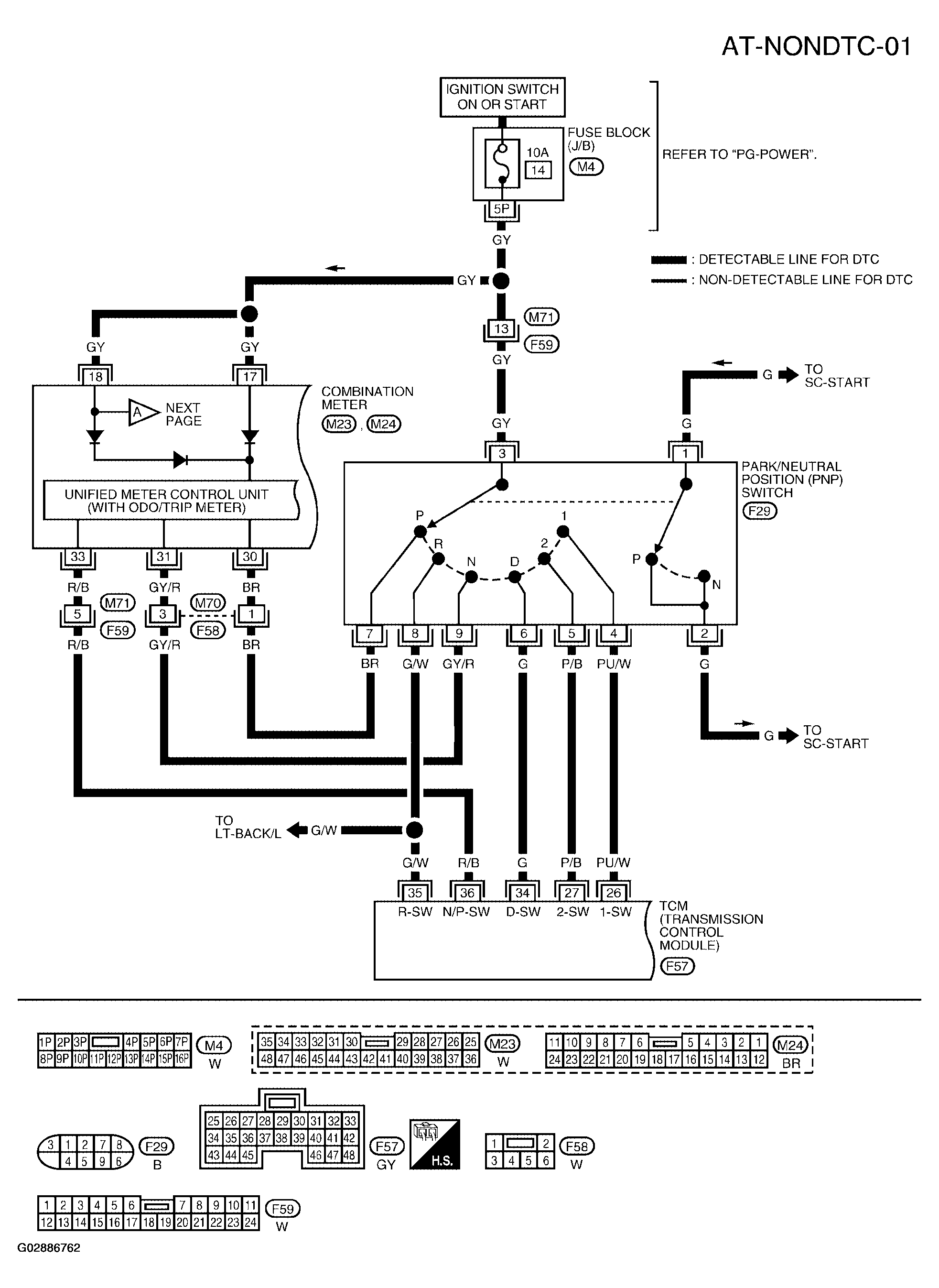

Fig 1: AT - NONDTC - AT-NONDTC-01 Wiring Diagram & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

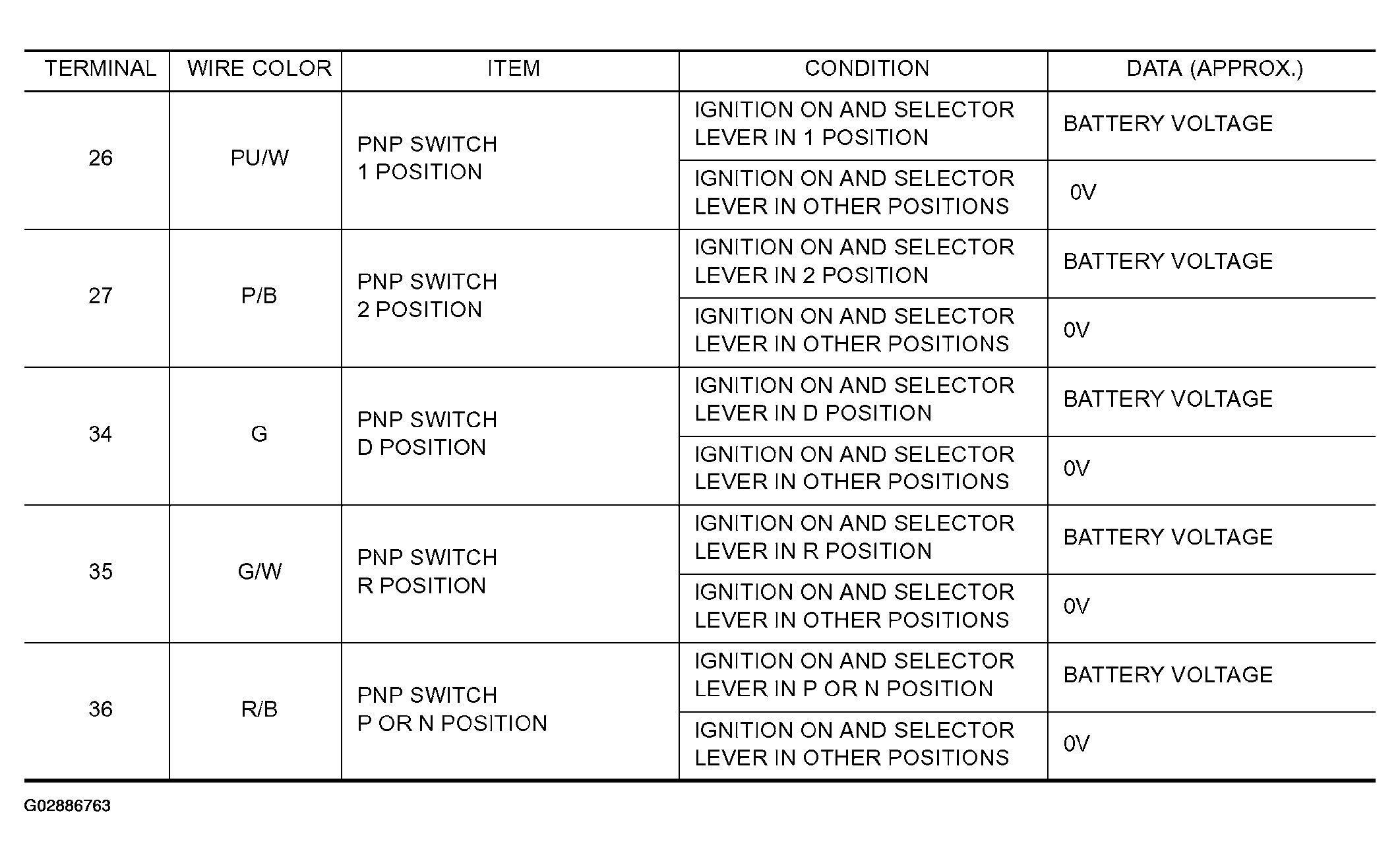

Fig 2: Terminals Reference Value Table

Courtesy of NISSAN MOTOR CO., U.S.A.

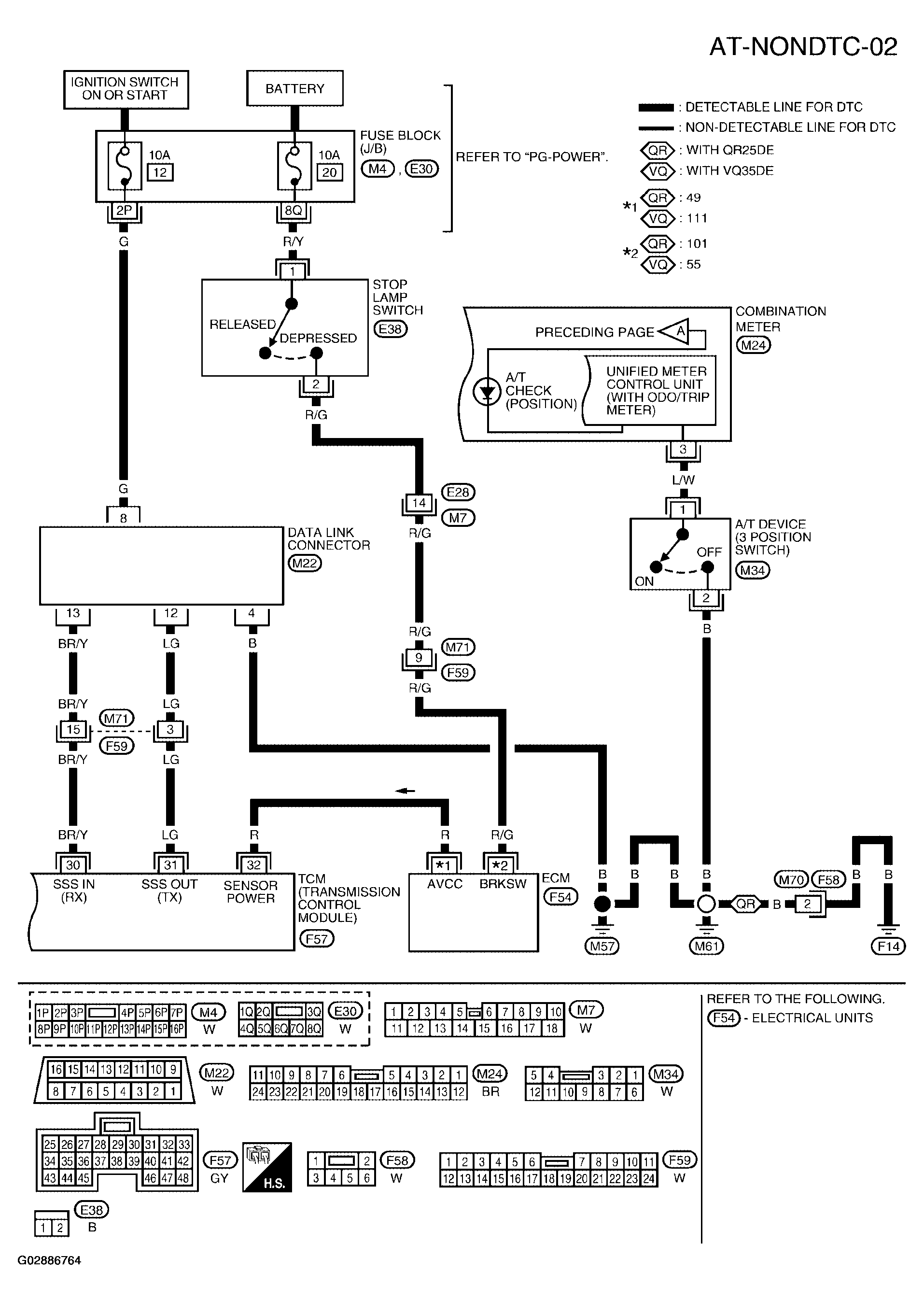

Fig 3: AT - NONDTC - AT-NONDTC-02 Wiring Diagram & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 25 OR 48 (TCM GROUND)

TERMINALS REFERENCE VALUE SPECIFICATIONS

TERMINAL	WIRE COLOR	ITEM	CONDITION	DATA (APPROX.)
30	BR/Y	DATA LINK CONNECTOR
31	LG	DATA LINK CONNECTOR
32	R	SENSOR POWER	IGNITION SWITCH ON	4.5 - 5.5V
32	R	SENSOR POWER	IGNITION SWITCH OFF	0V
