4. In N Position, Vehicle Moves

SYMPTOM:

Vehicle moves forward or backward when selecting N position.

1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to park/neutral position (PNP) switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
   2. No: GO TO 2.

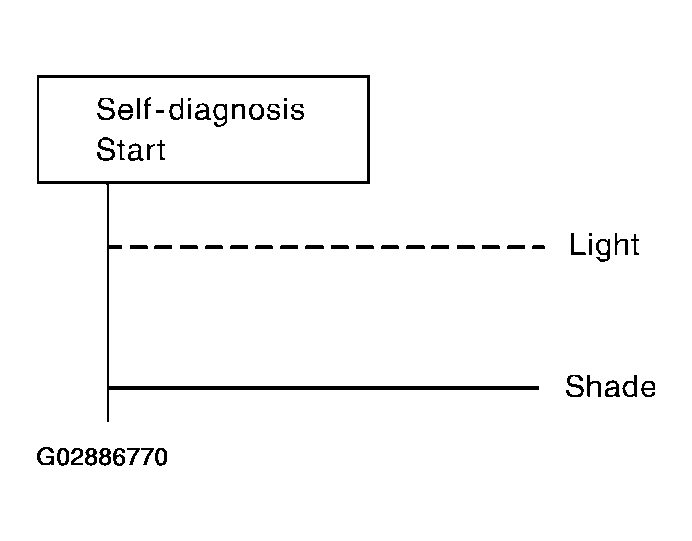

      Fig 1: Self Diagnosis Result Display (PNP Switch Circuit)

      Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK CONTROL LINKAGE

   Check control cable. Refer to "CONTROL CABLE ".

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.
3. ADJUST CONTROL CABLE

   Adjust control cable.

   1. : Refer to "CONTROL CABLE ADJUSTMENT ".

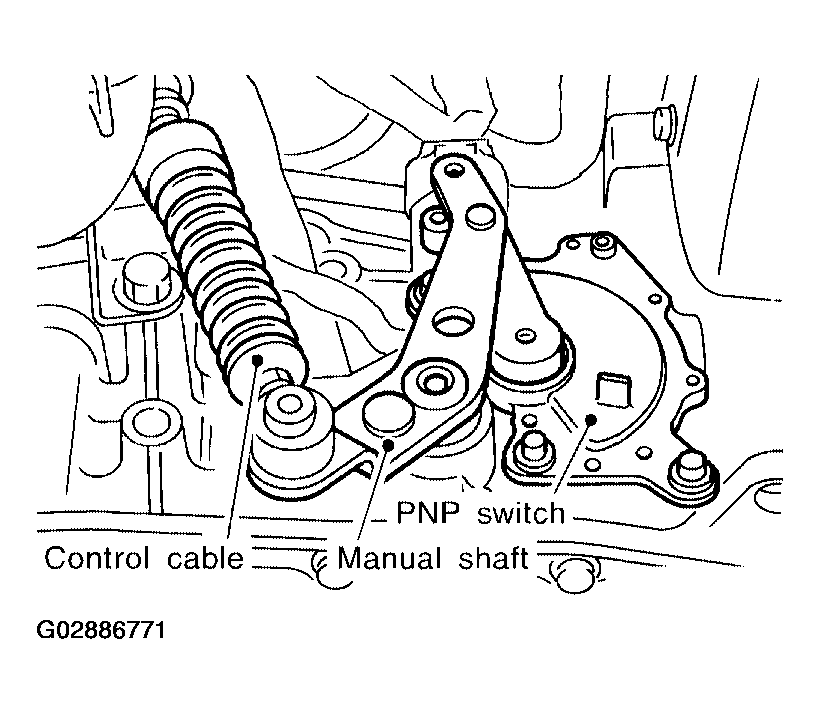

      Fig 2: Adjusting Control Cable

      Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK A/T FLUID LEVEL

   Check A/T fluid level again.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Refill ATF.
      Fig 3: Checking Automatic Transaxle Fluid Level

      Courtesy of NISSAN MOTOR CO., U.S.A.
5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO 6.

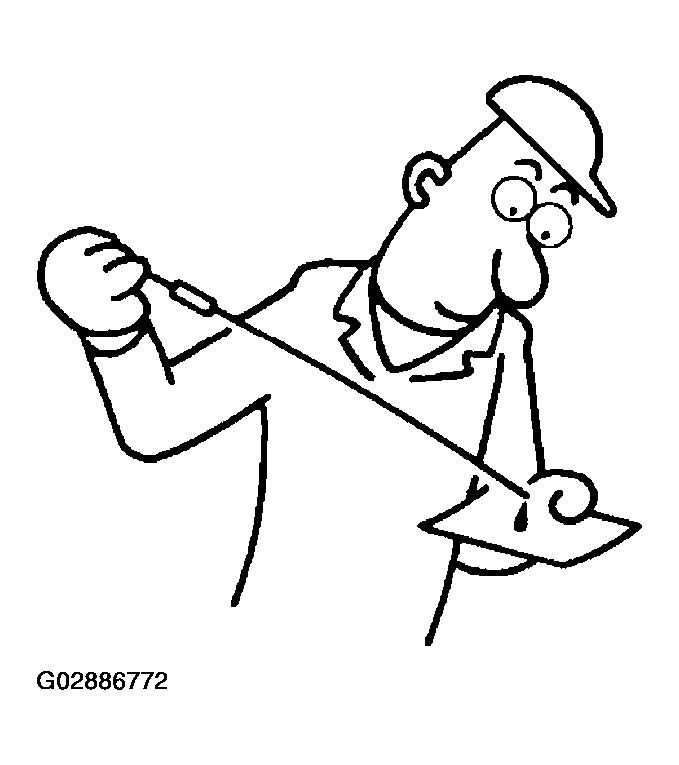

      Fig 4: Checking Automatic Transaxle Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.
6. DETECT MALFUNCTIONING ITEM
   1. Disassemble A/T.
   2. Check the following items:
      • Forward clutch assembly
      • Overrun clutch assembly
      • Reverse clutch assembly

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
