2. Engine Cannot Be Started In P and N Position

SYMPTOM:

• Engine cannot be started with selector lever in P or N position.
• Engine can be started with selector lever in D, 2, 1 or R position.

1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to park/neutral position (PNP) switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
   2. No: GO TO 2.

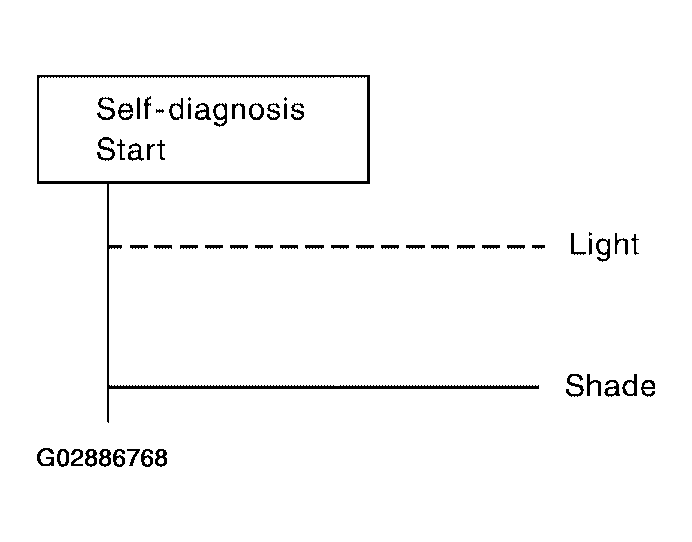

      Fig 1: Self Diagnosis Result Display (PNP Switch Circuit)

      Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

   Check for short or open of park/neutral position (PNP) switch harness connector terminals 1 and 2. Refer to TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair or replace park/neutral position (PNP) switch.
3. CHECK STARTING SYSTEM

   Check starting system. Refer to TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
