19. A/T Does Not Shift: 22 --> 11, When Selector Lever 2 --> 1 Position

SYMPTOM:

A/T does not shift from 22 to 11 when changing selector lever from 2 to 1 position.

1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to park/neutral position (PNP) switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
   2. No: GO TO 2.

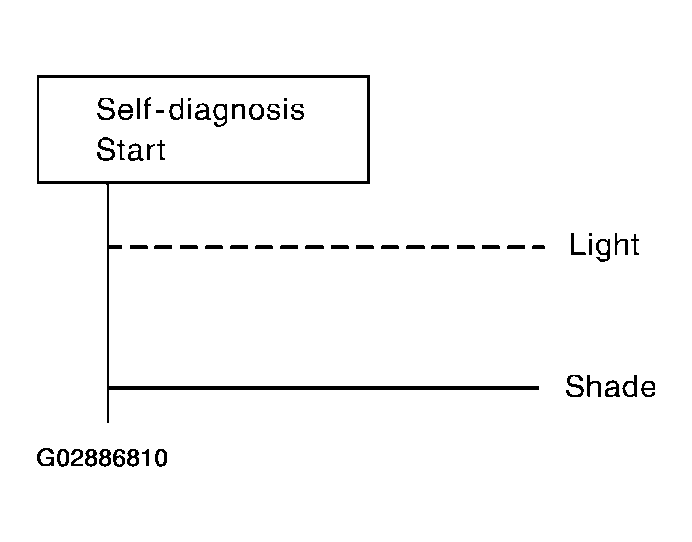

      Fig 1: PNP Switch Circuit (Selector Lever 2 --> 1 Position) Self-Diagnosis

      Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 3.

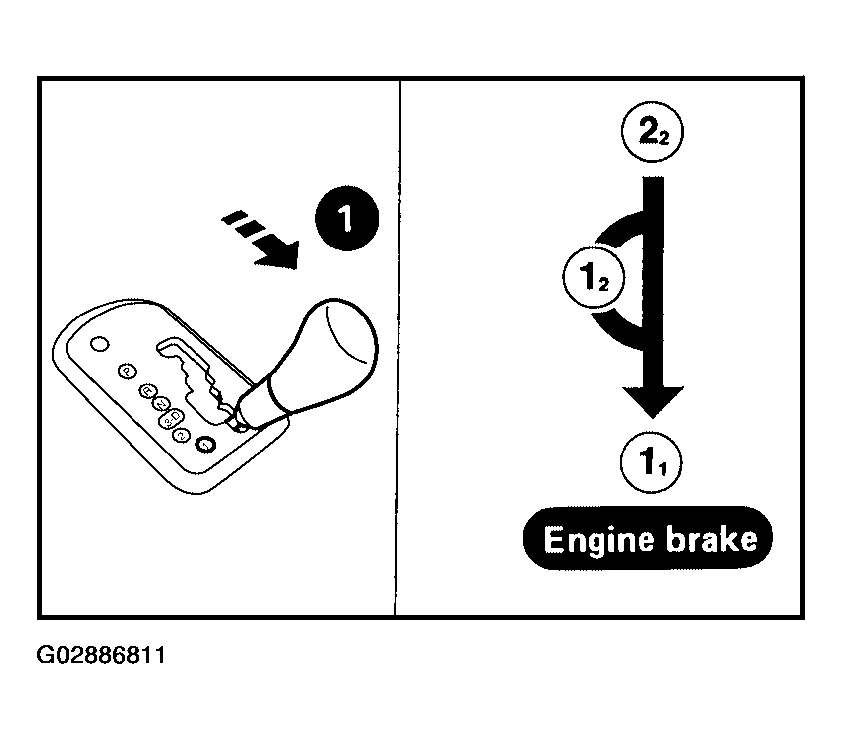

      Fig 2: Checking Symptom

      Courtesy of NISSAN MOTOR CO., U.S.A.
3. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
