17. A/T Does Not Shift: D4 --> 33, When A/T Selector Lever D --> 3

SYMPTOM:

A/T does not shift from D4 to 33 when changing A/T selector lever from D --> 3 position.

1. CHECK 3 POSITION SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to 3 position switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to 3 position switch circuit?

   Yes or No

   1. Yes: Check 3 position switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
   2. No: Go to "10. A/T DOES NOT SHIFT: D2 --> D3 ".

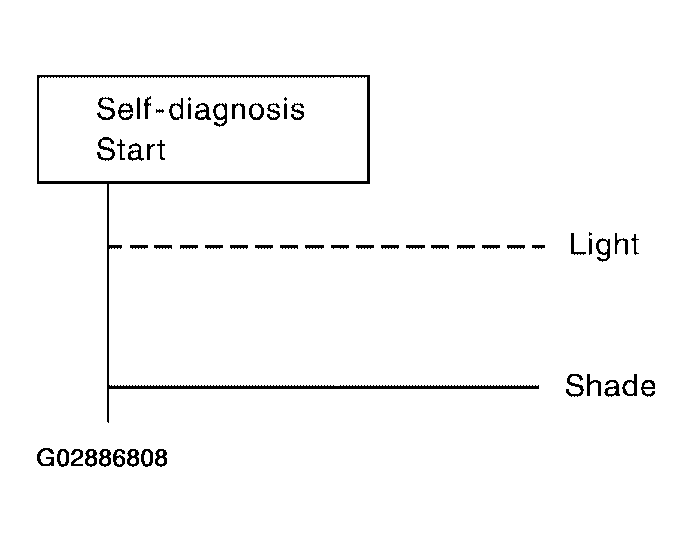

      Fig 1: Checking 3 Position Switch Circuit

      Courtesy of NISSAN MOTOR CO., U.S.A.
