TCM Inspection Table

WARNING: This page is about a different variant/trim than selected.

(Data are reference values.)

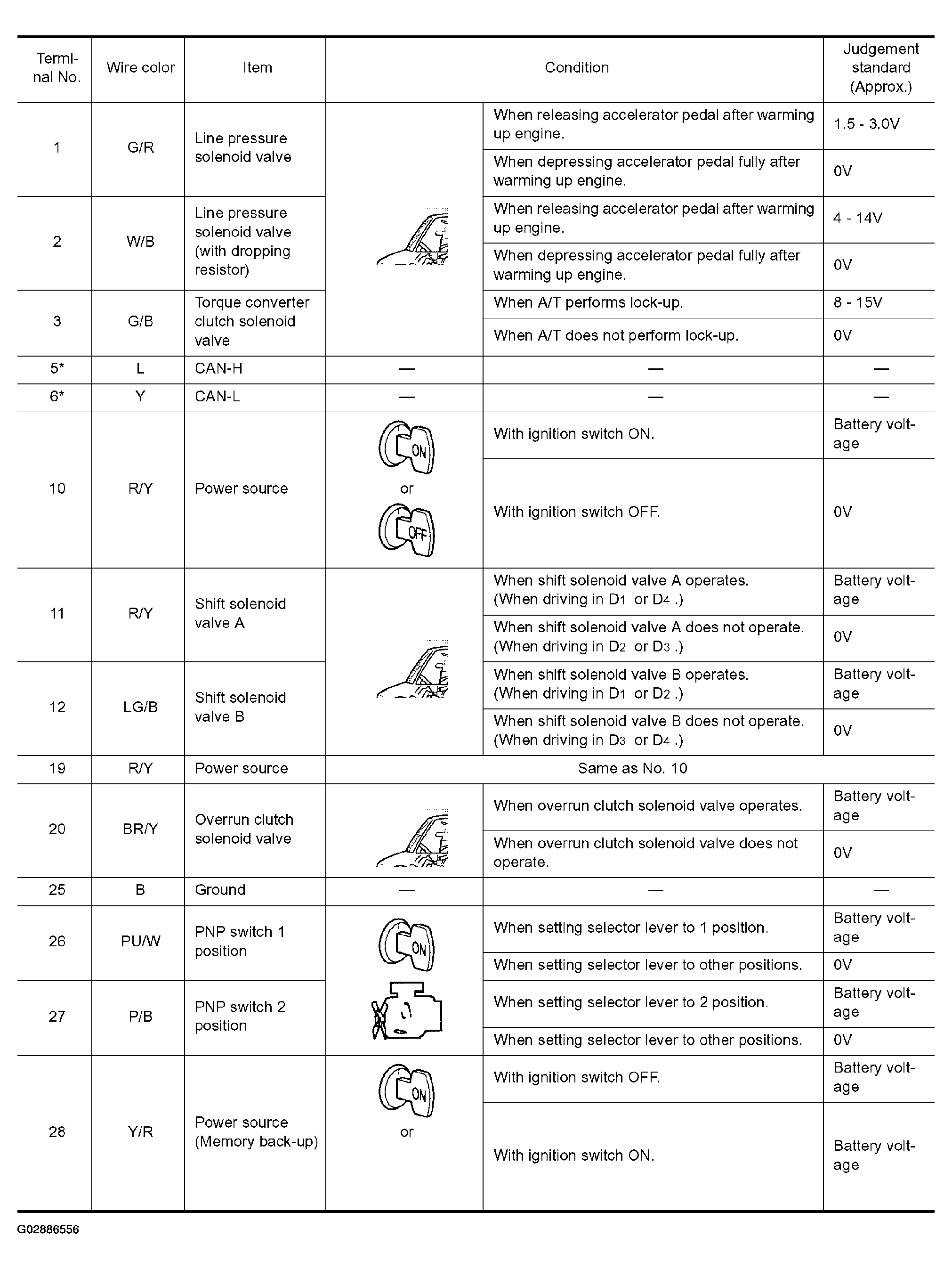

Fig 1: TCM Inspection Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

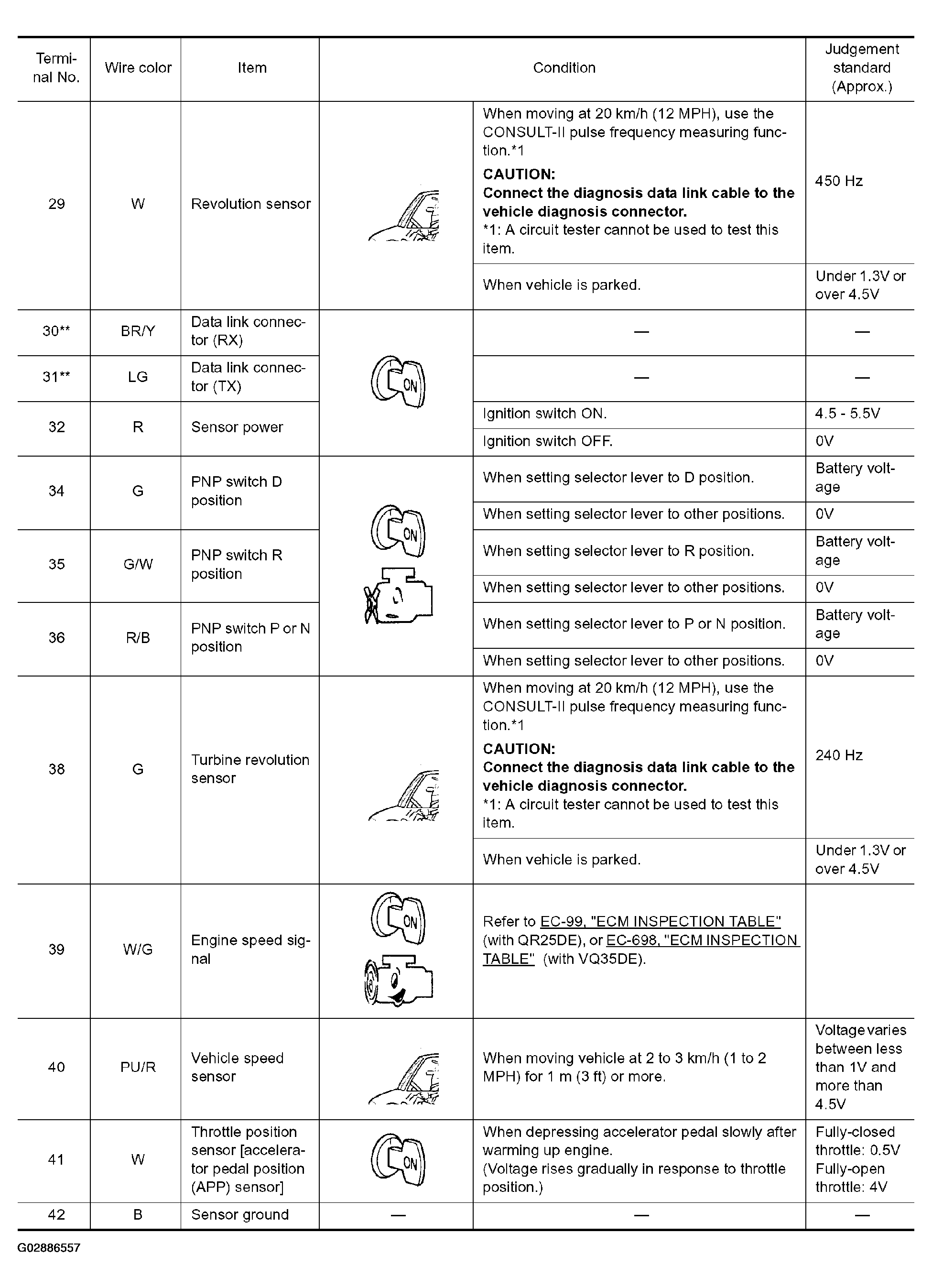

Fig 2: TCM Inspection Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

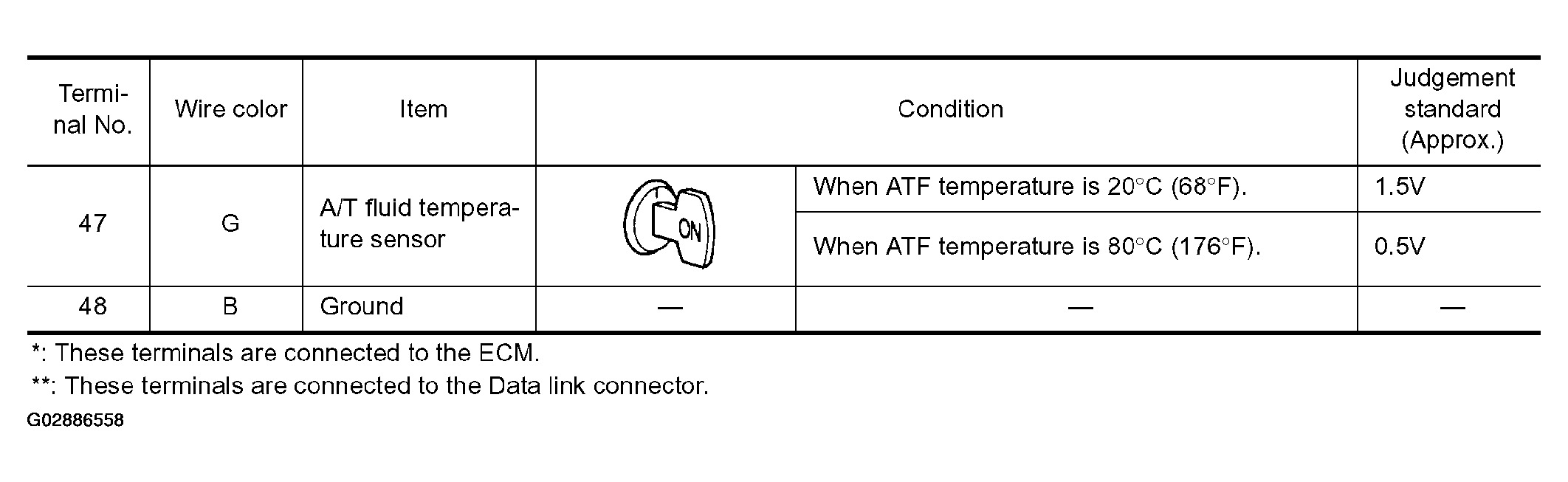

Fig 3: TCM Inspection Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: These terminals are connected to the ECM.

^** : These terminals are connected to the Data link connector.
