TCM Terminals and Reference Value: Preparation
WARNING:
This page is about a different variant/trim than selected.

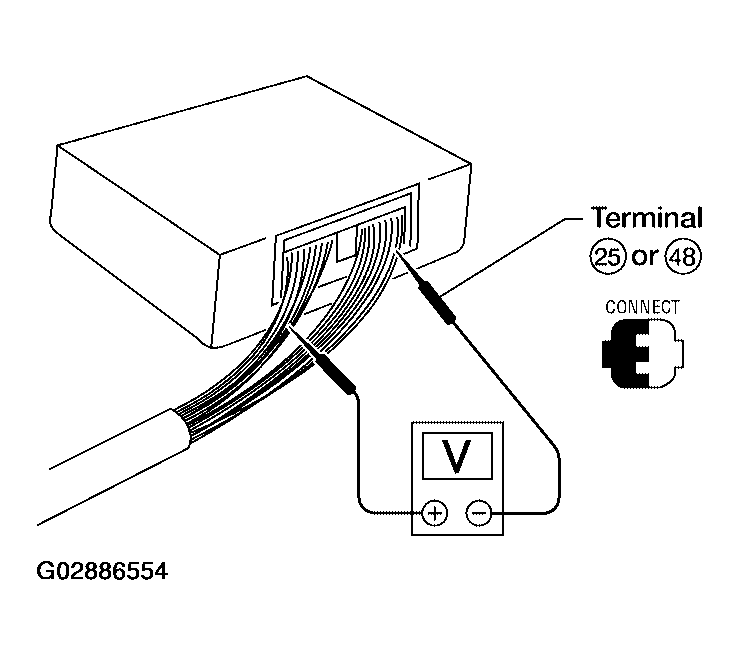

Fig 1: TCM Terminals Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".
Courtesy of NISSAN MOTOR CO., U.S.A.
