CONSULT-II Setting Procedure

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector, which is located in left side dash panel.

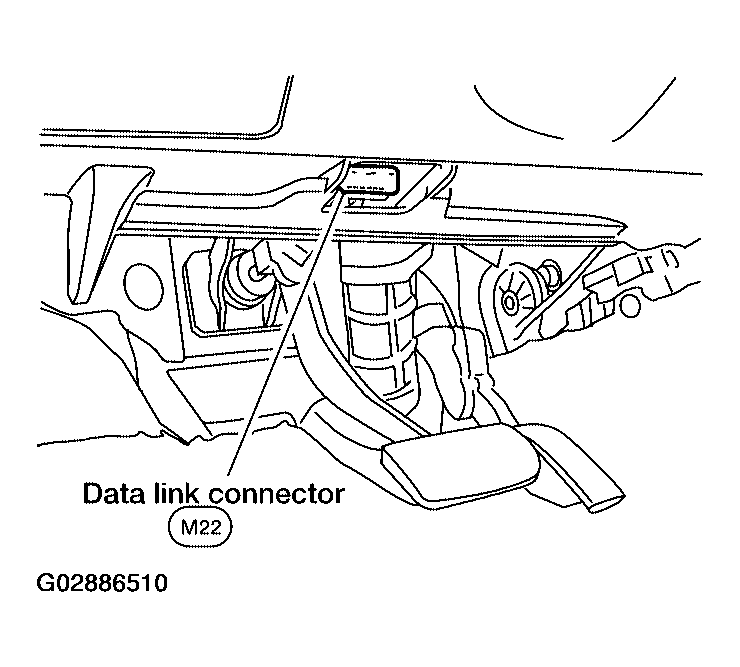

Fig 1: Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

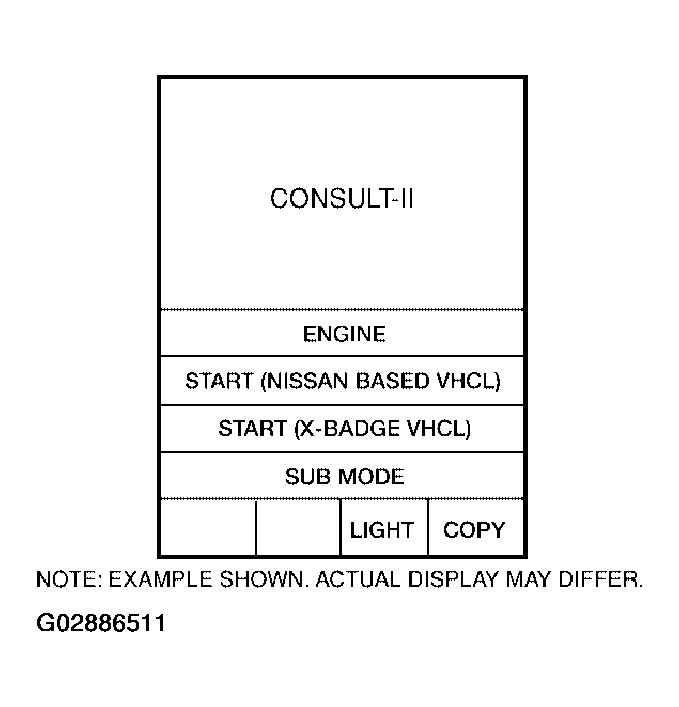

Fig 2: Scan Tool Display "CONSULT-II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".

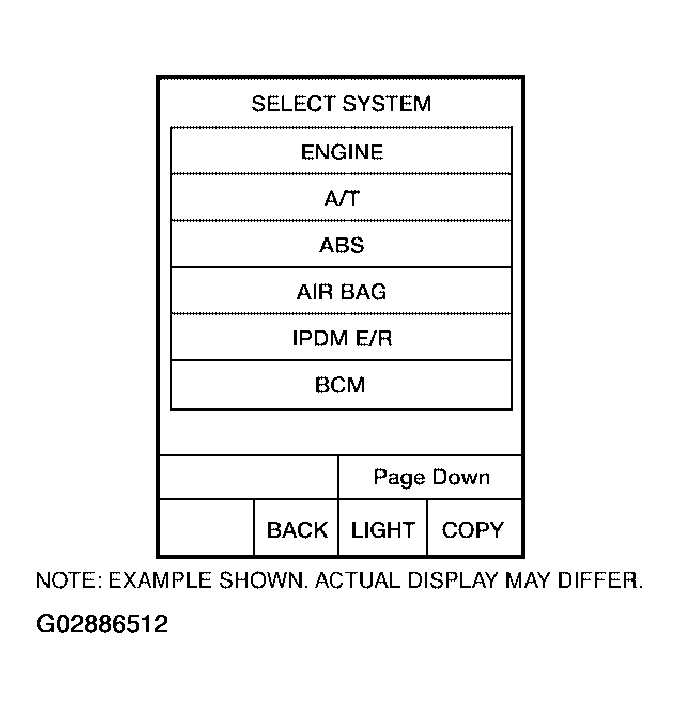

Fig 3: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

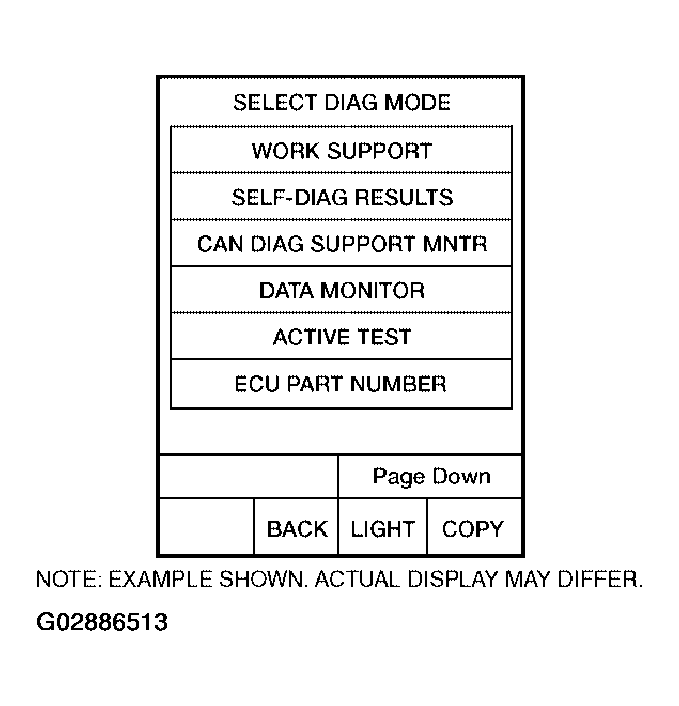

Fig 4: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".
See "Numerical Display", "Bar chart Display" or "Line Graph Display".

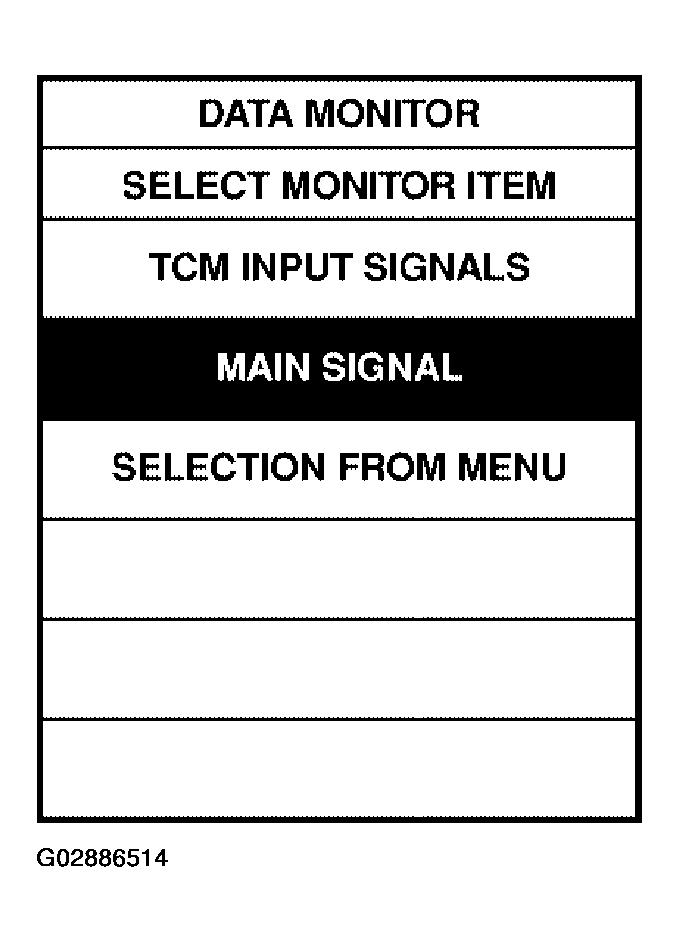

Fig 5: Scan Tool Display "Data Monitor"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "Start".

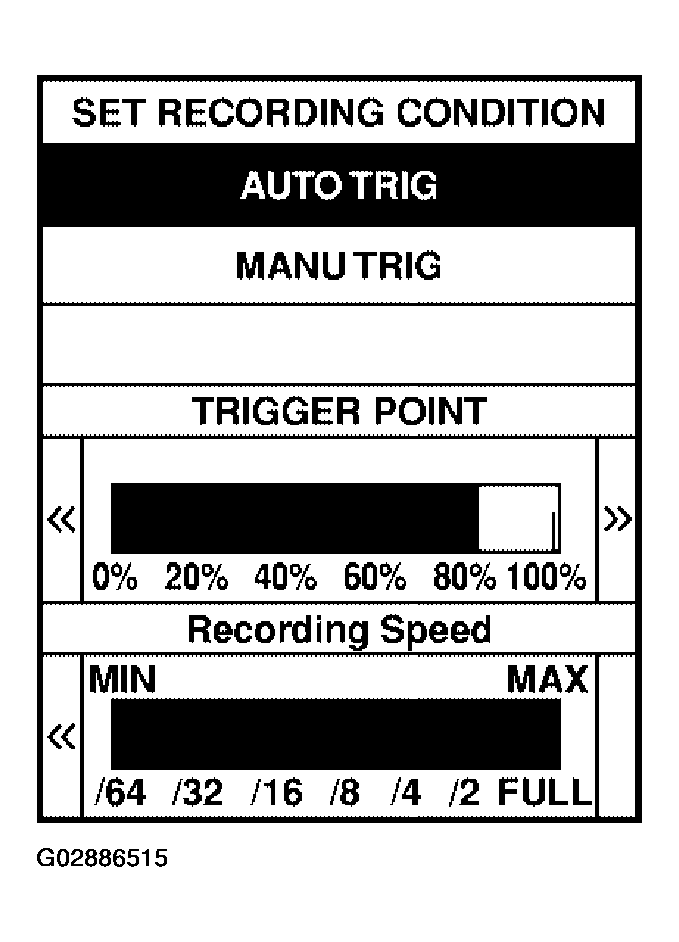

Fig 6: Scan Tool Display "Set Recording Condition"
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

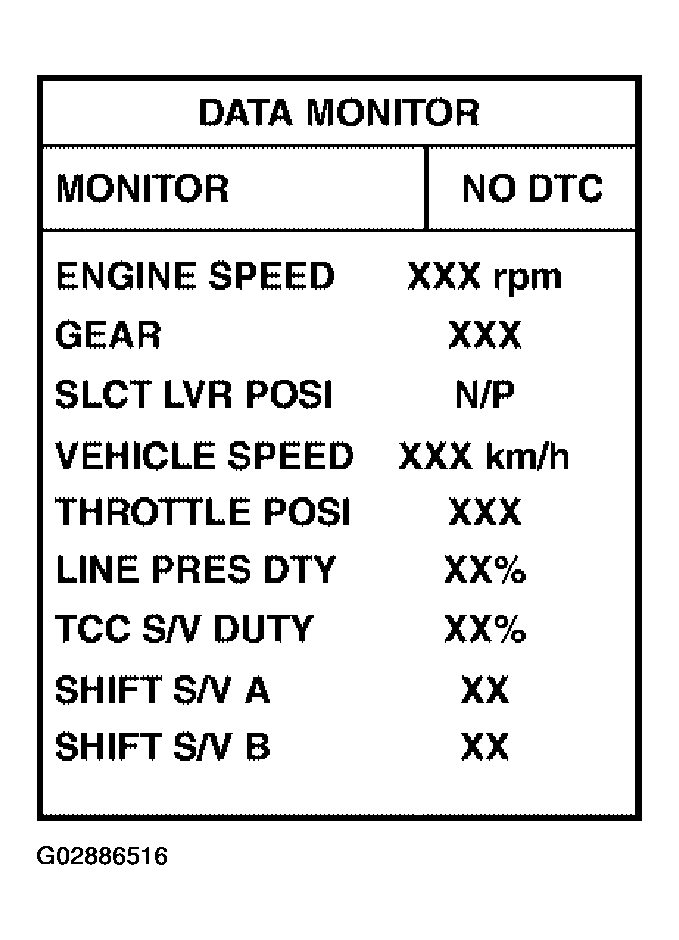

Fig 7: Scan Tool Display "Data Monitor"
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP"

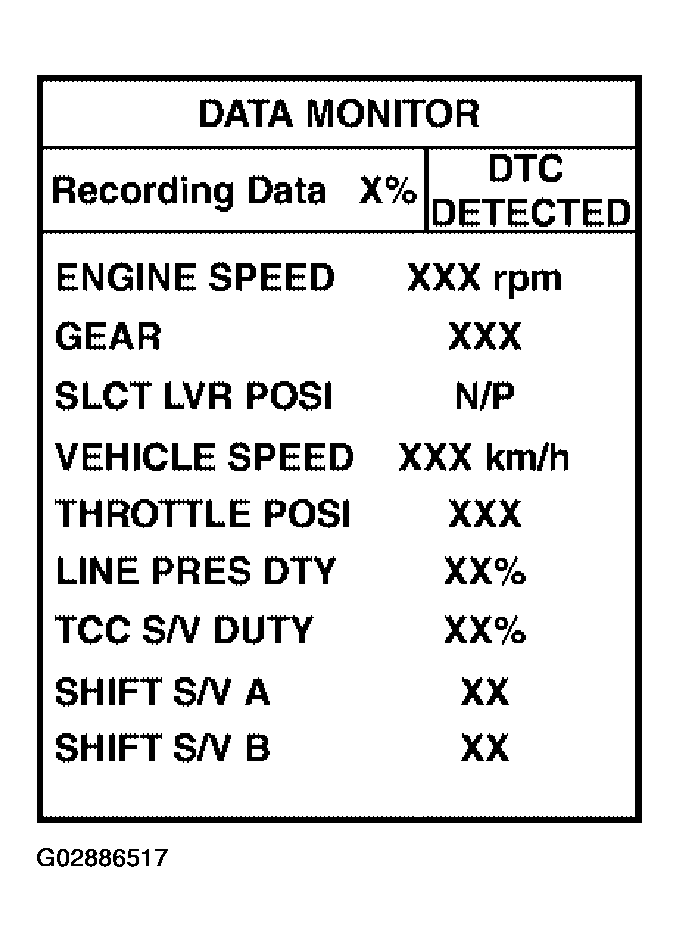

Fig 8: Scan Tool Display "Data Monitor Recording Data"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

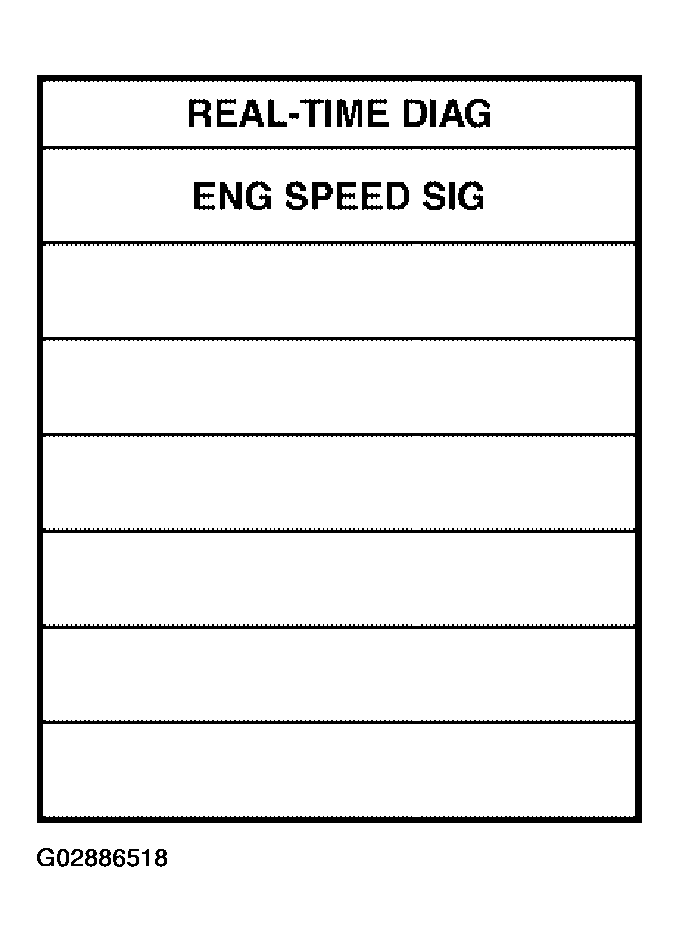

Fig 9: Scan Tool Display "Real-Time Diag"
Courtesy of NISSAN MOTOR CO., U.S.A.

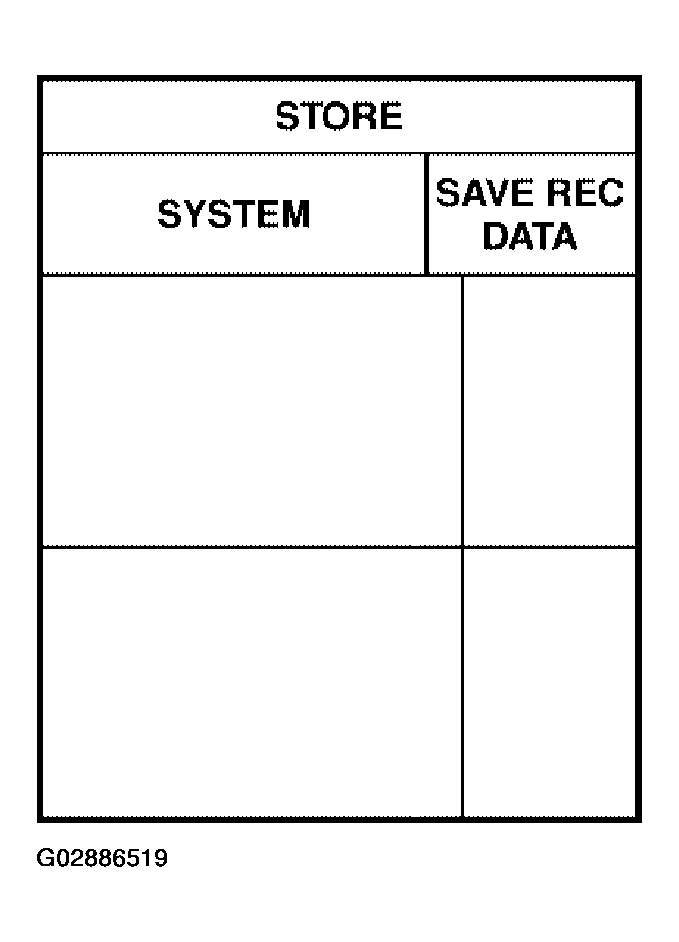

Fig 10: Scan Tool Display "Store"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DISPLAY"
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.

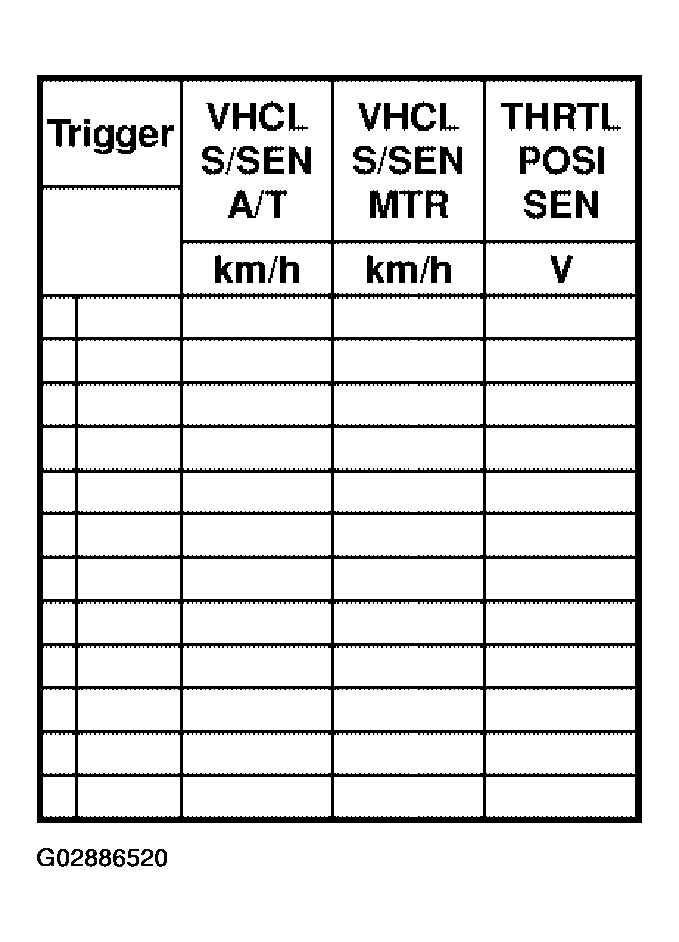

Fig 11: Scan Tool Display "Trigger"
Courtesy of NISSAN MOTOR CO., U.S.A.
