Line Pressure Test Procedure

WARNING: This page is about a different variant/trim than selected.

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
Drive vehicle for approximately 10 minutes or until fluid and oil reach operating temperature.
ATF operating temperature :50 - 80°C (122 - 176°F)

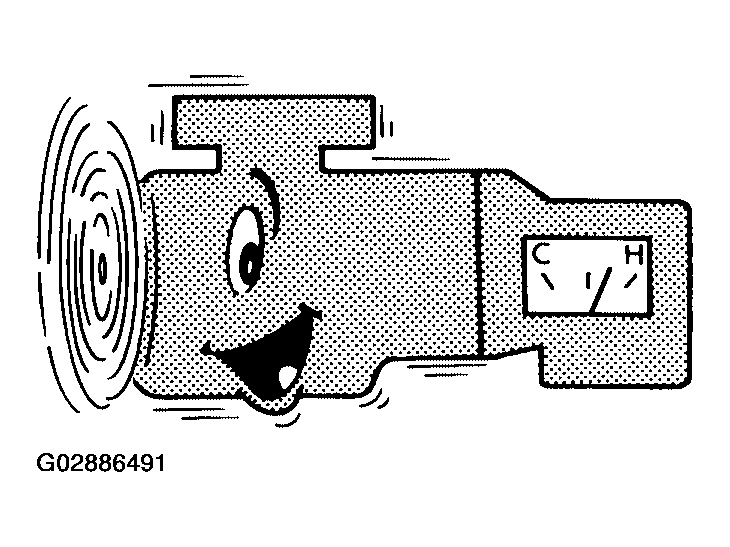

Fig 1: Checking A/T Fluid & Engine Oil Levels
Courtesy of NISSAN MOTOR CO., U.S.A.
Install pressure gauge to corresponding line pressure port.

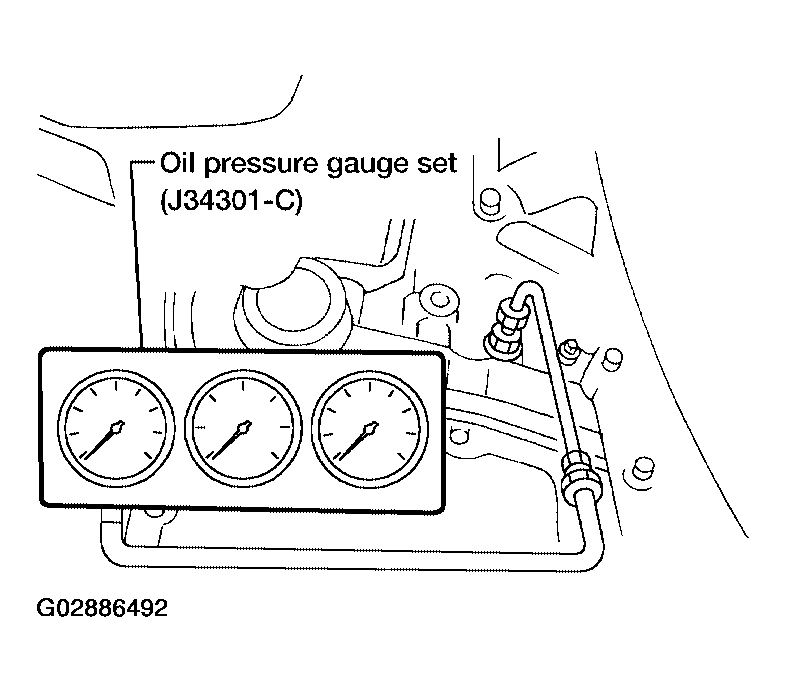

Fig 2: Installing Pressure Gauge To Corresponding Line Pressure Port
Courtesy of NISSAN MOTOR CO., U.S.A.
Set parking brake and block wheels.
- Continue to depress brake pedal fully while line pressure test is being performed at stall speed.

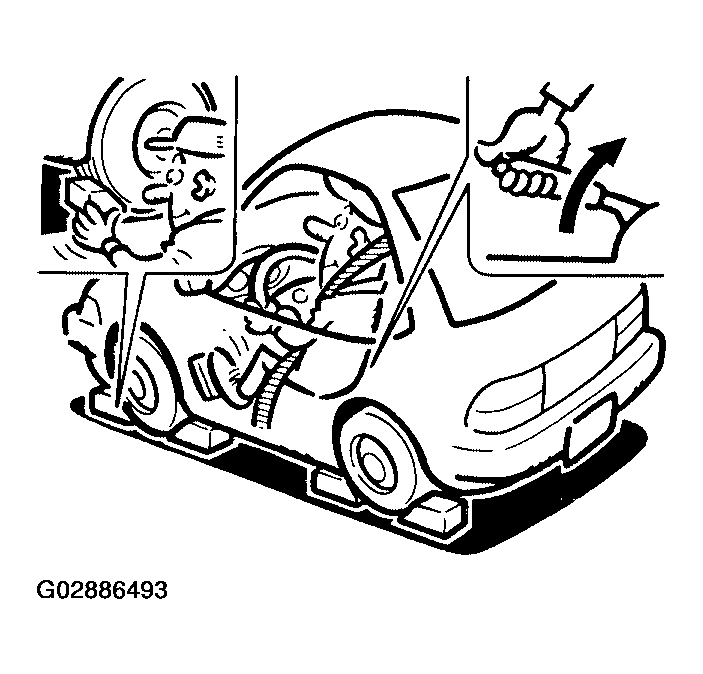

  Fig 3: Setting Parking Brake And Block Wheels
  Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and measure line pressure at idle and stall speed.
- When measuring line pressure at stall speed, follow the stall test procedure.
  : Refer to SDS, "LINE PRESSURE TEST " "LINE PRESSURE "

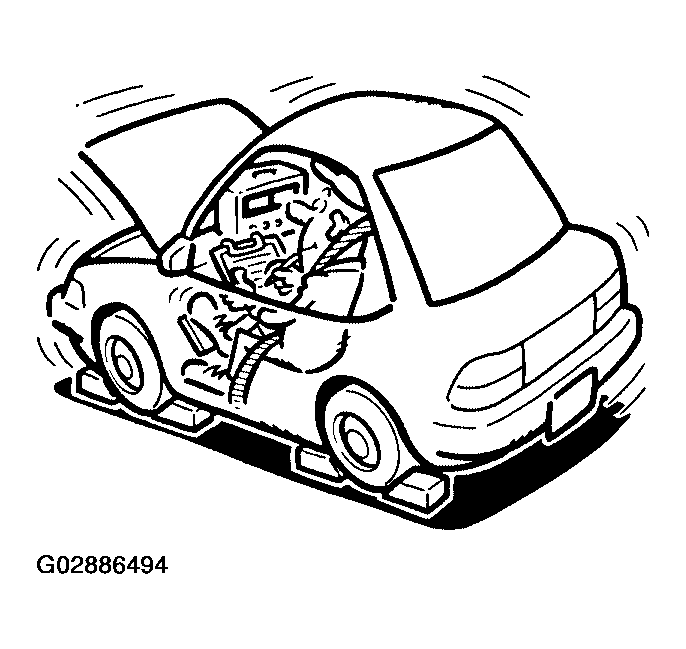

  Fig 4: Start Engine & Measure Line Pressure At Idle & Stall Speed
  Courtesy of NISSAN MOTOR CO., U.S.A.
