Section 8 (Automatic Transaxle)
>>
Trouble Diagnosis - Basic Inspection
>>
Line Pressure Test
>>
Judgement Of Line Pressure Test
Judgement Of Line Pressure Test
WARNING:
This page is about a different variant/trim than selected.

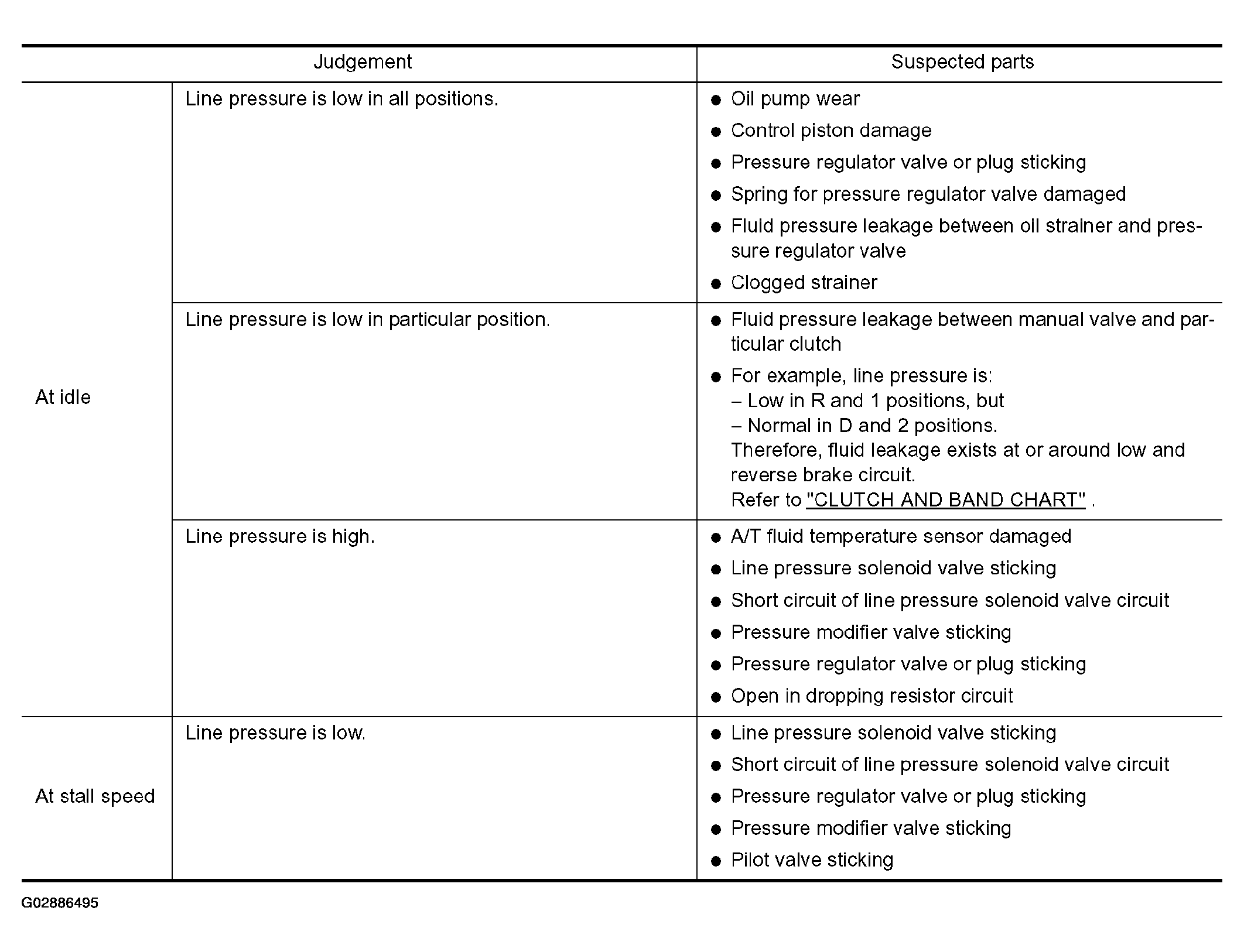

Fig 1: Judgement Of Line Pressure Test SpecificationsChart
Courtesy of NISSAN MOTOR CO., U.S.A.
