Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

Warm up the engine.
Check for any transaxle fluid leaks.
Before driving, the fluid level can be checked at fluid temperature using the "COLD" range on the A/T fluid level gauge.
4 A/T temperature range

COLD: 30° - 50°C (86° - 122°F)

HOT: 50° - 80°C (122° - 176°F)

5 A/T temperature range

COLD: 30° - 40°C (86° - 104°F)

HOT: 70° - 80°C (158° - 176°F)

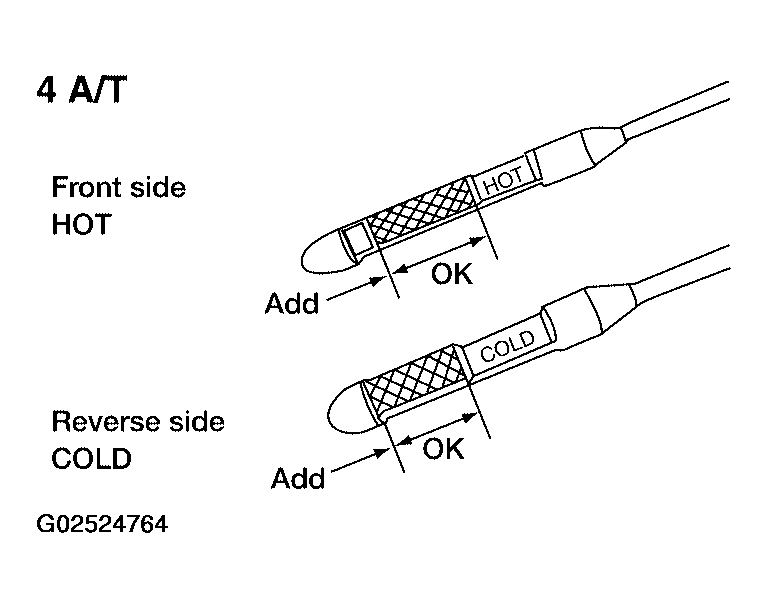

Fig 1: Checking Fluid Temperature Using "Cold" Range On 4 A/T Fluid Level Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.

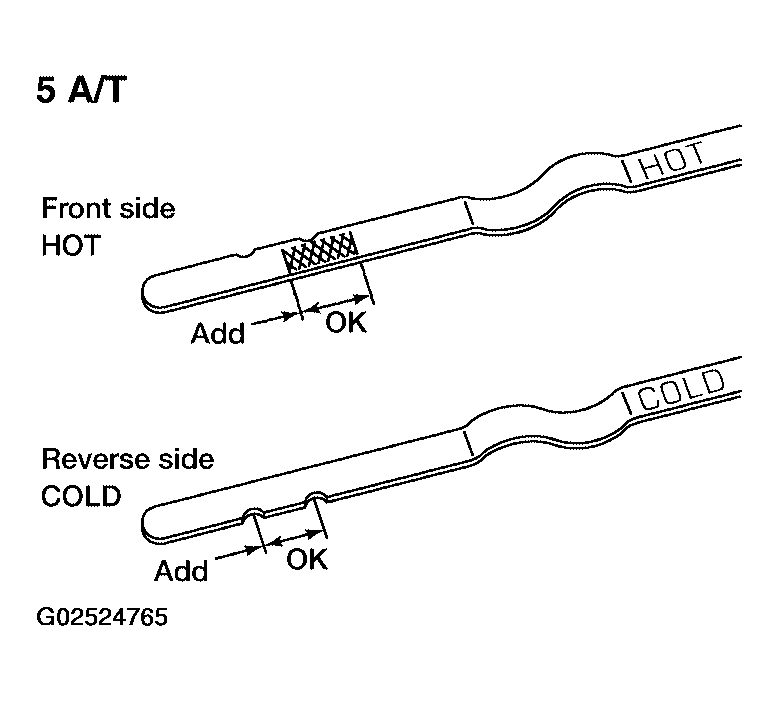

Fig 2: Checking Fluid Temperature Using "Cold" Range On 5 A/T Fluid Level Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Park the vehicle on a level surface and set parking brake.
2. Start the engine and move the transaxle selector lever through each gear position. Leave the selector lever in the "P" park position.
3. Check the fluid level with the engine idling.
  CAUTION: Firmly fix the A/T fluid level gauge into the A/T fluid charging pipe using the attached stopper, this will provide an accurate reading on the gauge.

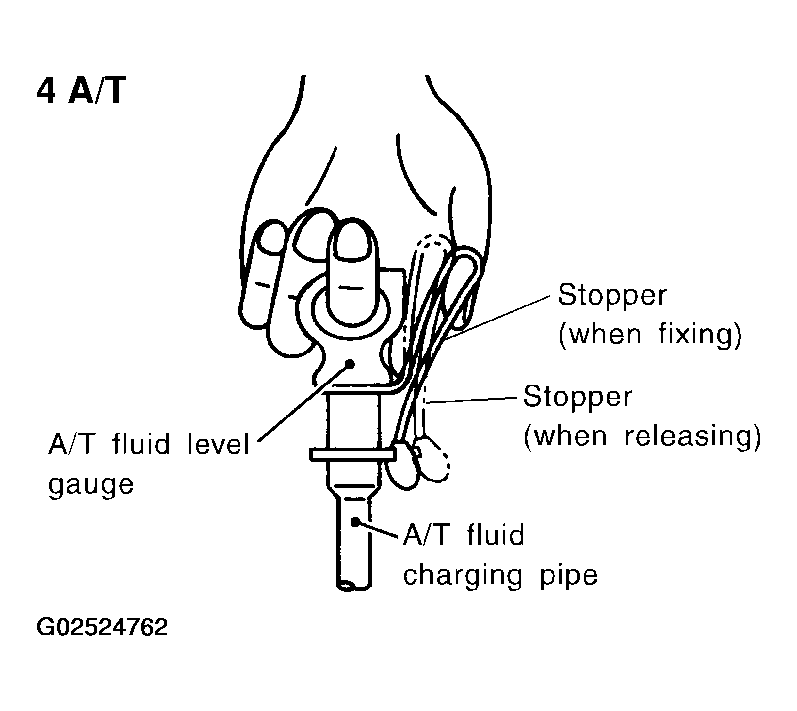

  Fig 3: Checking Fluid Level With Engine Idling 4 A/T
  Courtesy of NISSAN MOTOR CO., U.S.A.

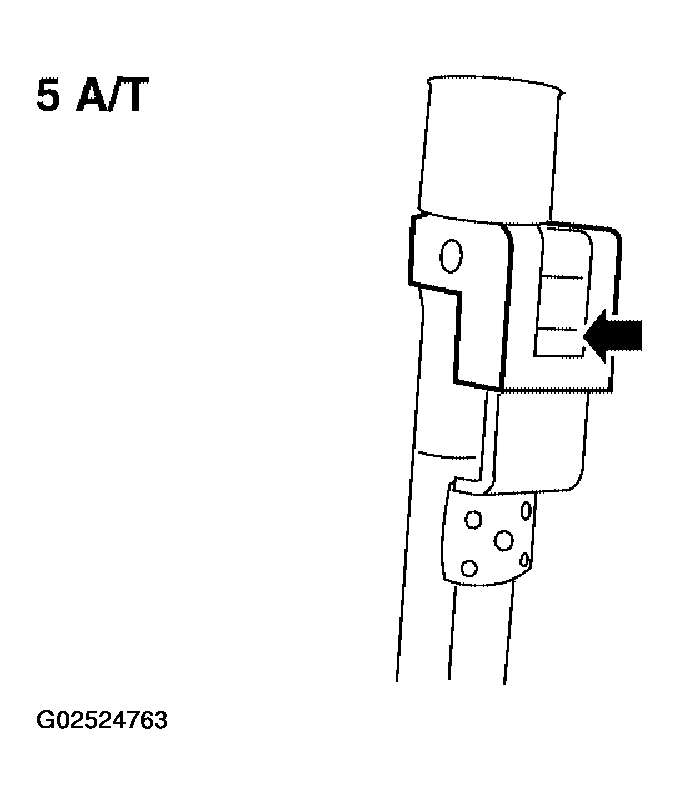

  Fig 4: Checking Fluid Level With Engine Idling 5 A/T
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove the A/T fluid level gauge and wipe it clean with a lint-free paper.
5. Re-insert the A/T fluid level gauge into the charging pipe as far as it will go.
6. Remove the A/T fluid level gauge and note the reading. If the reading is at or below the low side of the range, add the necessary specified A/T fluid through the A/T fluid charging pipe and then re-insert the A/T fluid level gauge.
  CAUTION:
  - Do not overfill the transaxle.
  - Firmly fix the A/T fluid level gauge into the A/T fluid charging pipe using the attached stopper, this will provide an accurate reading on the gauge, and will keep the gauge in position while driving.
Drive the vehicle for approximately 5 minutes at moderate speeds.
Re-check the fluid level at fluid temperatures using the "HOT" range on the A/T fluid level gauge.
CAUTION: Firmly fix the A/T fluid level gauge into the A/T fluid charging pipe using the attached stopper, this will provide an accurate reading on the gauge, and will keep the gauge in position while driving.

Fig 5: Checking Fluid Level At Fluid Temperatures Using "Hot" Range On A/T Fluid Level Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.

4 A/T temperature range

COLD: 30° - 50°C (86° - 122°F)

HOT: 50° - 80°C (122° - 176°F)

5 A/T temperature range

COLD: 30° - 40°C (86° - 104°F)

HOT: 70° - 80°C (158° - 176°F)

Fig 6: Checking Fluid Level At Fluid Temperatures Using "Hot" Range On A/T Fluid Level Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the fluid for the following conditions:
- If the fluid is very dark or smells burned, refer to the TROUBLE DIAGNOSIS - INTRODUCTION for checking the operation of the transaxle. Flush the AT fluid cooling system after repairing the transaxle.
- If the fluid contains frictional material (from the clutches or bands), remove the radiator and flush the cooler lines using a cleaning solvent and compressed air after completing repairs to the transaxle. Refer to "RADIATOR " (QR25DE) "RADIATOR " (VQ35DE).

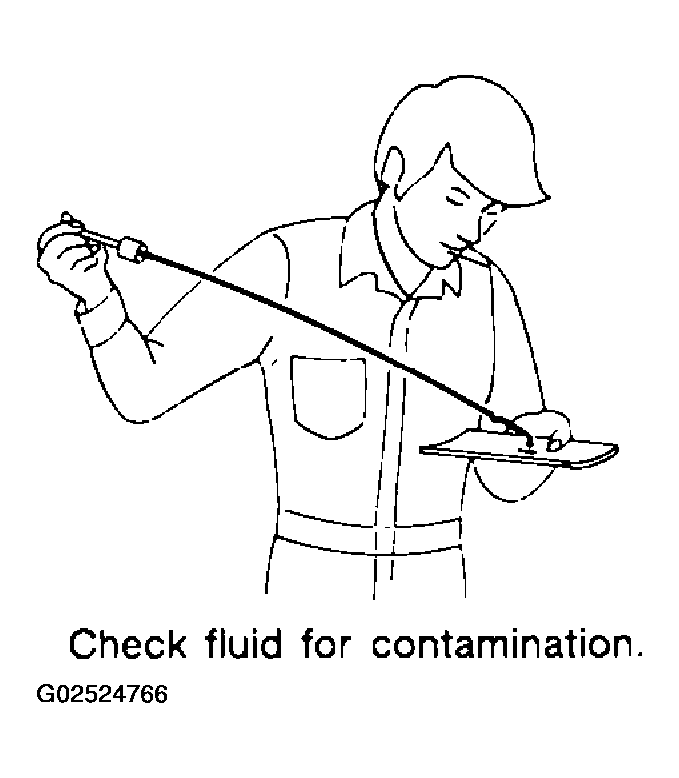

  Fig 7: Checking Fluid
  Courtesy of NISSAN MOTOR CO., U.S.A.
