Fluid Leakage Check

WARNING: This page is about a different variant/trim than selected.
  1. Clean area suspected of leaking. - for example, mating surface of converter housing and transmission case.
  2. Start engine, apply foot brake, place selector lever in D position and wait a few minutes.
  3. Stop engine.

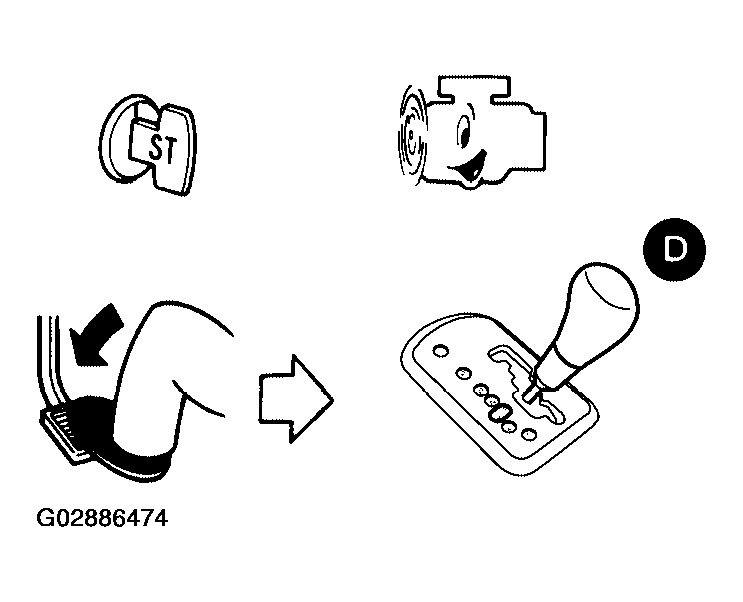

    Fig 1: Start Engine, Apply Foot Brake, Place Selector Lever In D Position & Wait A Few Minutes
    G02886474Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check for fresh leakage.

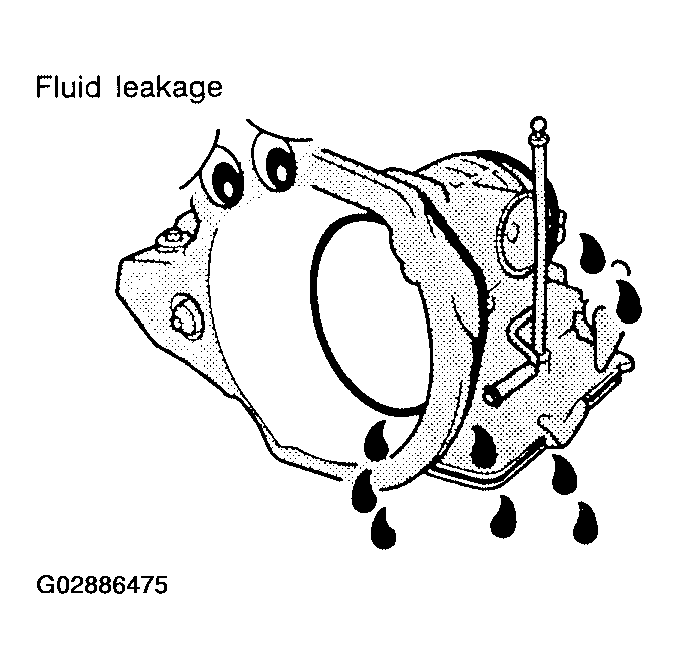

    Fig 2: Checking For Fresh Leakage
    G02886475Courtesy of NISSAN MOTOR CO., U.S.A.
