Fluid Condition Check

WARNING: This page is about a different variant/trim than selected.
FLUID CONDITION CHECKING REFERENCE

Fluid color Suspected problem
Dark or black with burned odor Wear of frictional material
Milky pink Water contamination - Road water entering through filler tube or breather
Varnished fluid, light to dark brown and tacky Oxidation - Over or under filling, - Overheating

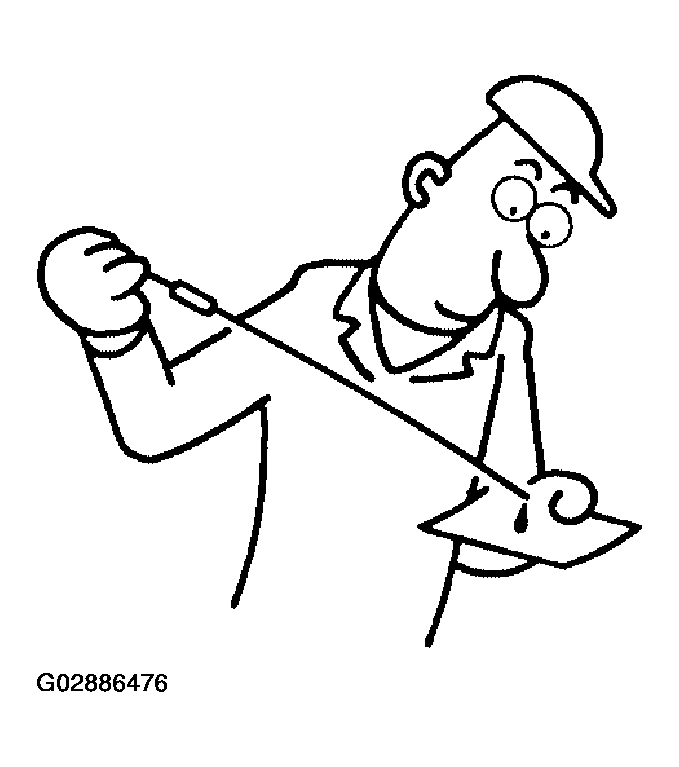

Fig 1: Checking Fluid Condition
G02886476Courtesy of NISSAN MOTOR CO., U.S.A.
