Oil Pump

WARNING: This page is about a different variant/trim than selected.

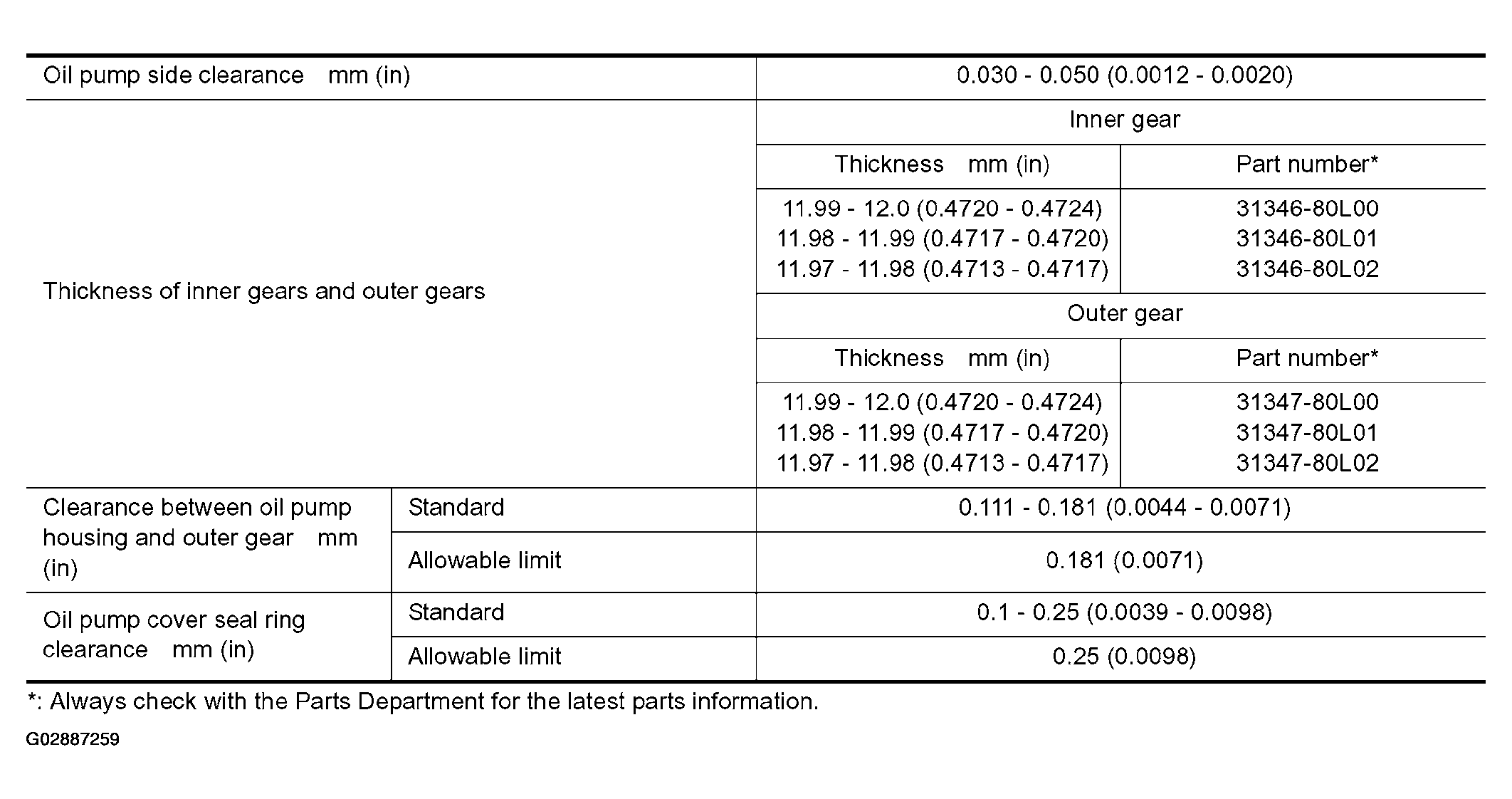

Fig 1: Oil Pump Specifications Table
G02887259Courtesy of NISSAN MOTOR CO., U.S.A.

*: Always check with the Parts Department for the latest parts information.
