Reverse Clutch Dish Plates

WARNING: This page is about a different variant/trim than selected.

Check for deformation or damage.
Measure thickness of dish plate.
Thickness of dish plate: 3.08 mm (0.1213 in)
If deformed or fatigued, replace.

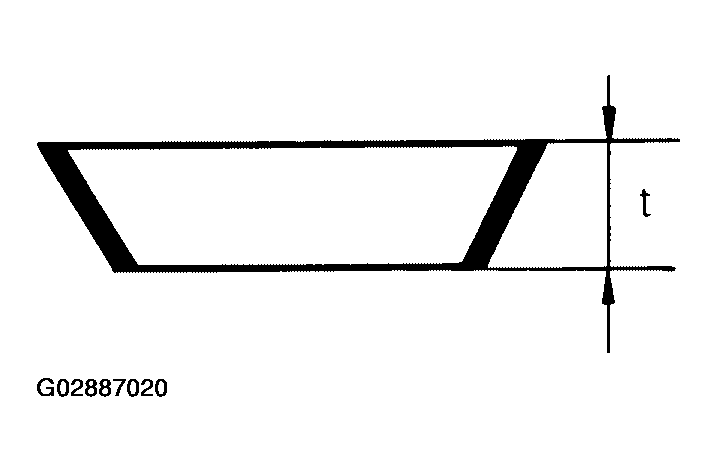

Fig 1: Reverse Clutch Dish Plate Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
