Reverse Clutch: Assembly

WARNING: This page is about a different variant/trim than selected.

Install D-ring and oil seal on piston.
- Take care with the direction of oil seal.
- Apply ATF to both parts.

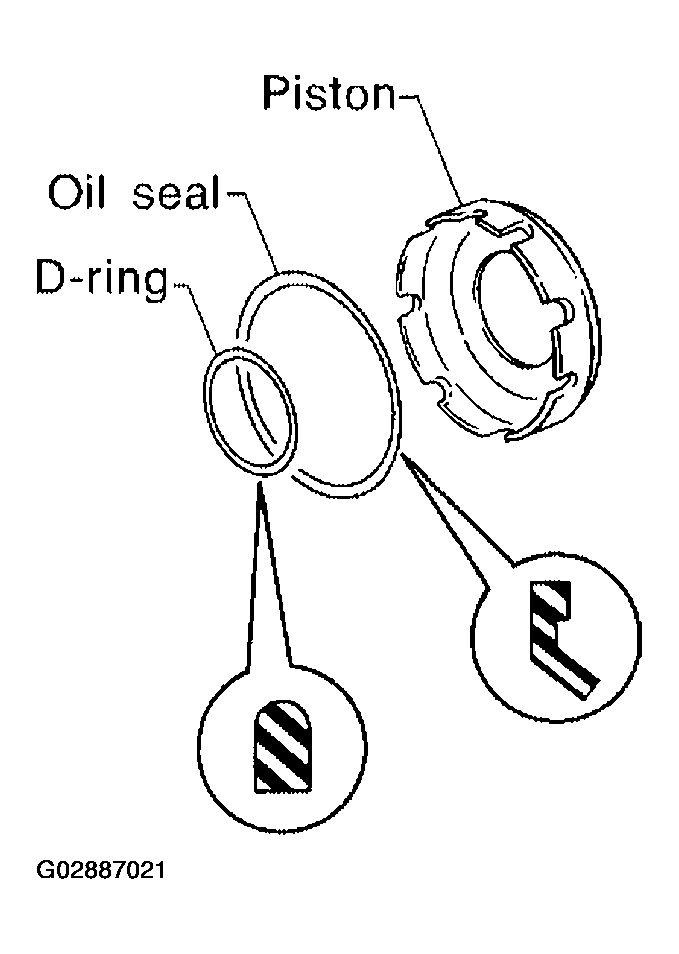

  Fig 1: Installing D-Ring And Oil Seal On Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.

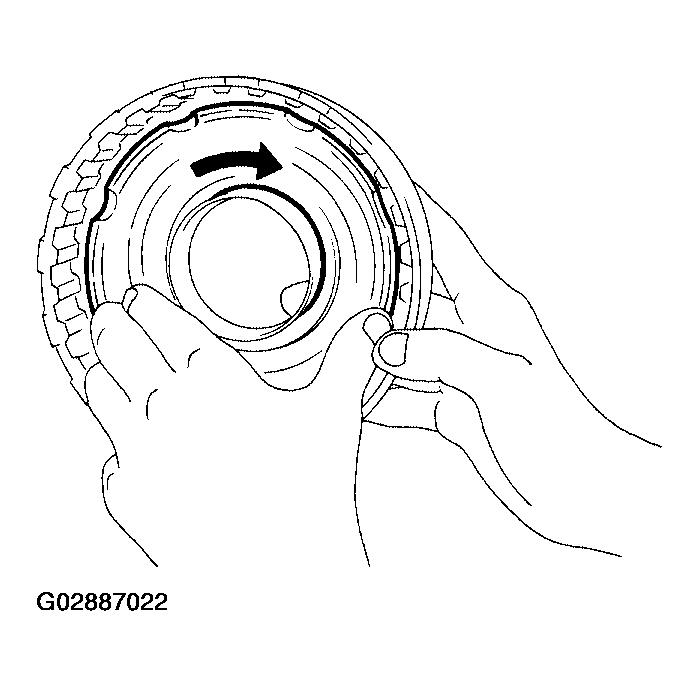

  Fig 2: Installing Piston Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.

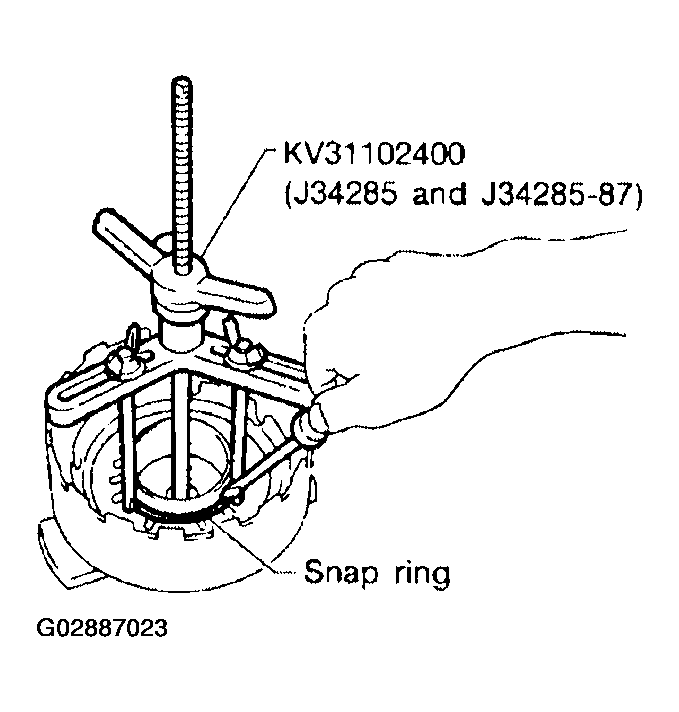

Fig 3: Installing Snap Ring By Compressing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly over return springs.
Install drive plates, driven plates, retaining plate and dish plates.
- Take care with order of plates.
Install snap ring.

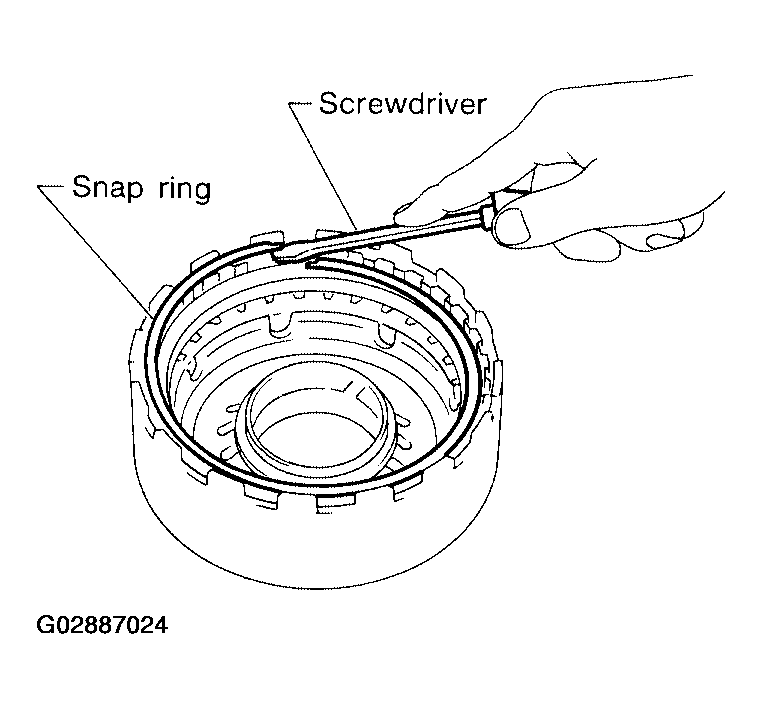

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
Specified clearance

Standard: 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit: 1.2 mm (0.047 in)

Retaining plate: Refer to " REVERSE CLUTCH ".

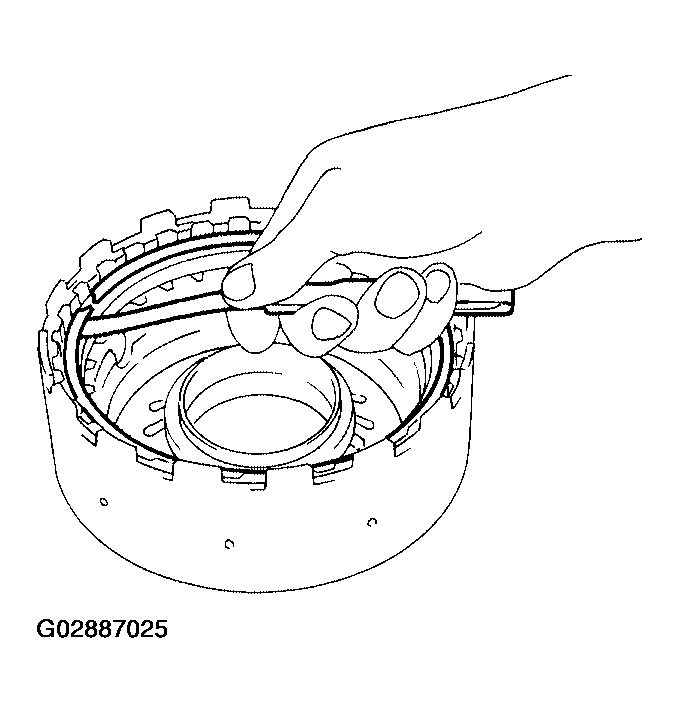

Fig 5: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of reverse clutch.

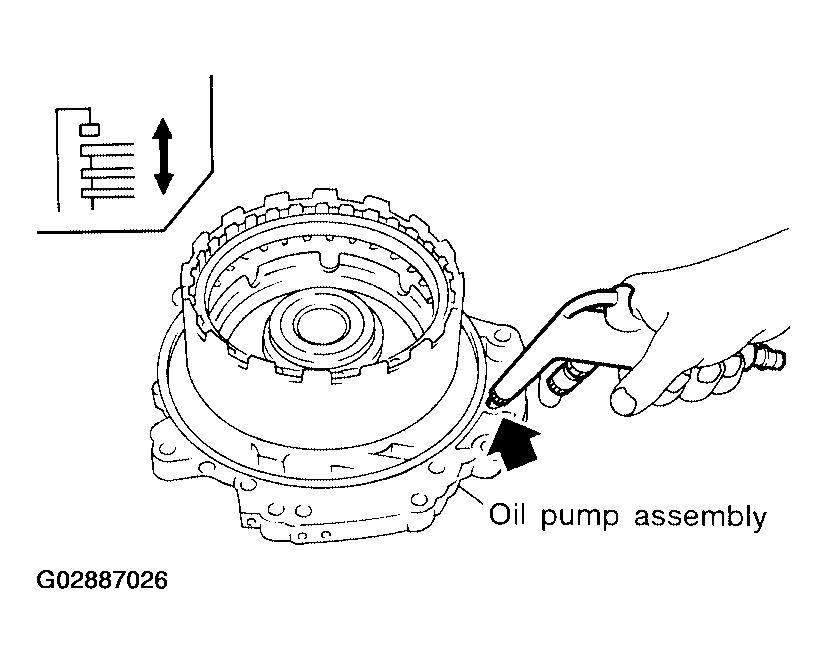

Fig 6: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
