Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub: Disassembly

WARNING: This page is about a different variant/trim than selected.

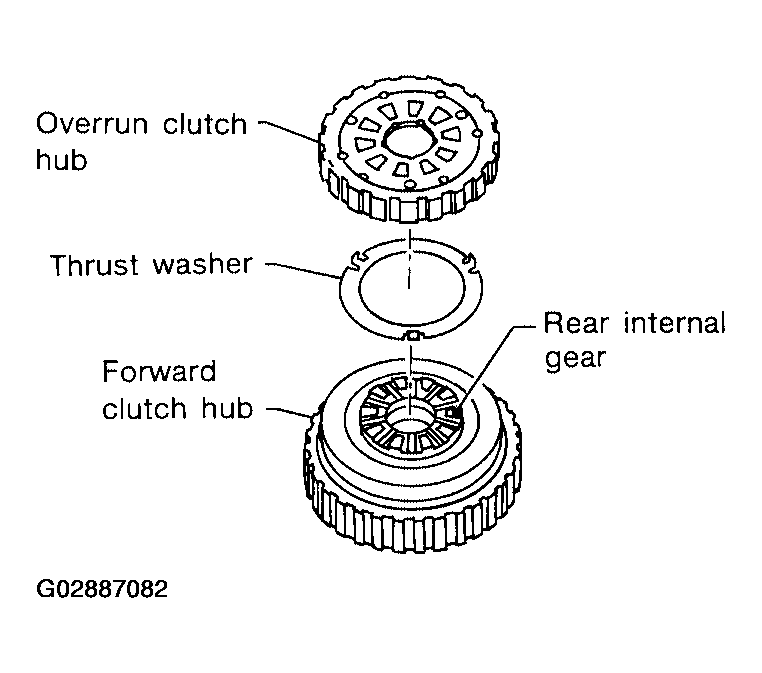

Remove overrun clutch hub and thrust washer from forward clutch hub.

Fig 1: Removing Overrun Clutch Hub & Thrust Washer From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.

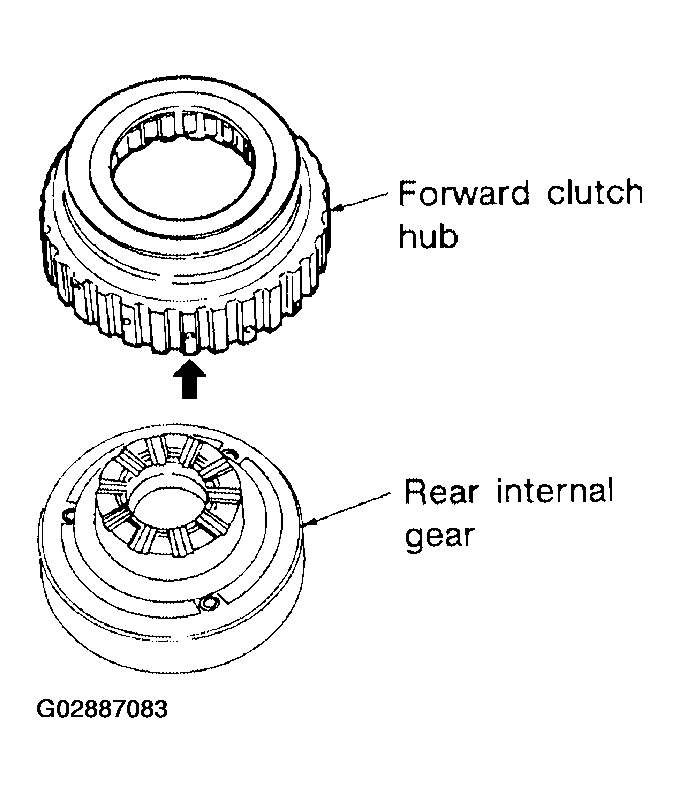

Remove forward clutch hub from rear internal gear.

Fig 2: Removing Forward Clutch Hub From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

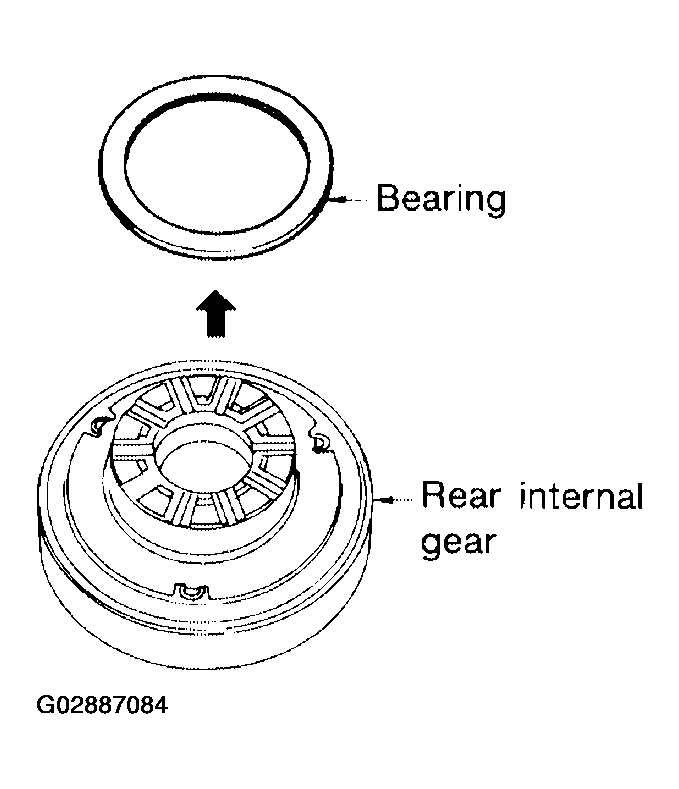

Remove bearing from rear internal gear.

Fig 3: Removing Bearing From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

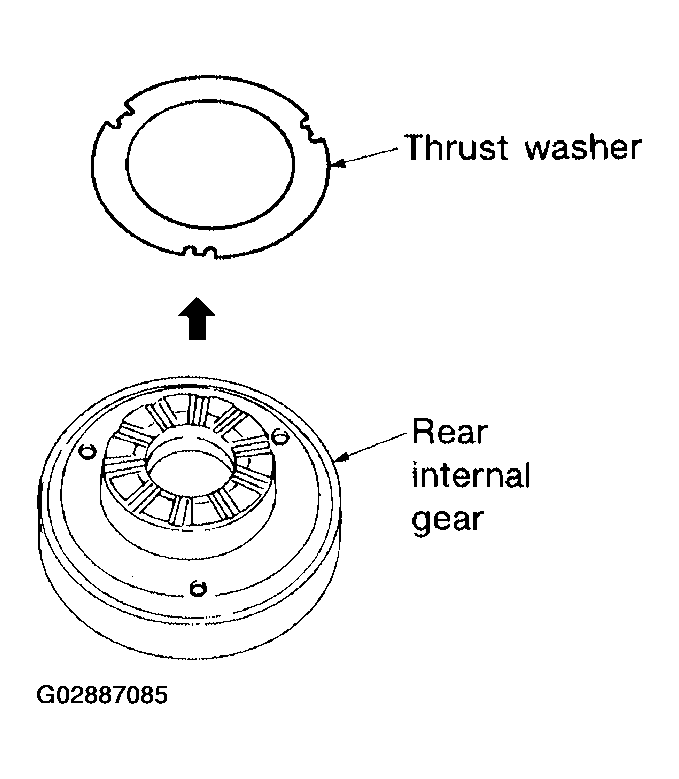

Remove thrust washer from rear internal gear.

Fig 4: Removing Thrust Washer From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

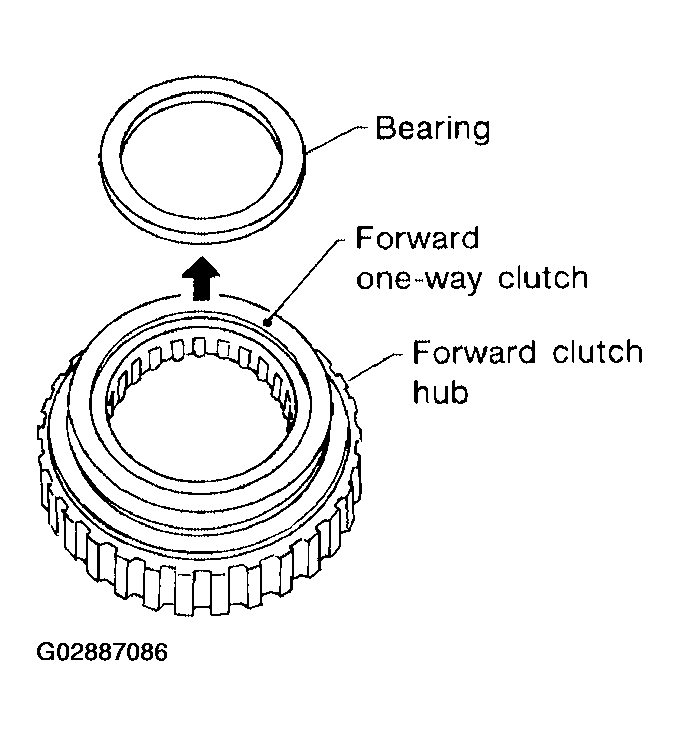

Remove bearing from forward one-way clutch.

Fig 5: Removing Bearing From Forward One-Way Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.

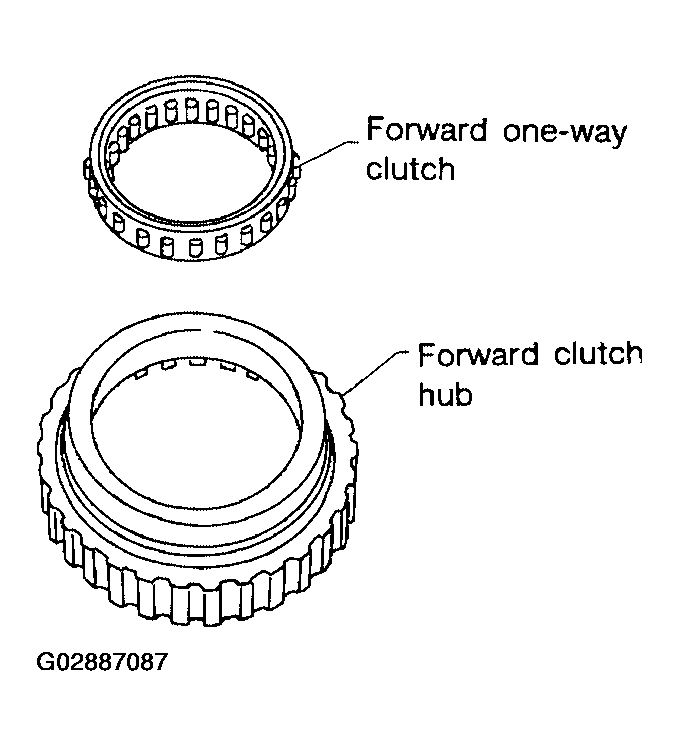

Remove forward one-way clutch from forward clutch hub.

Fig 6: Removing Forward One-Way Clutch From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
