Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer: Components

WARNING: This page is about a different variant/trim than selected.

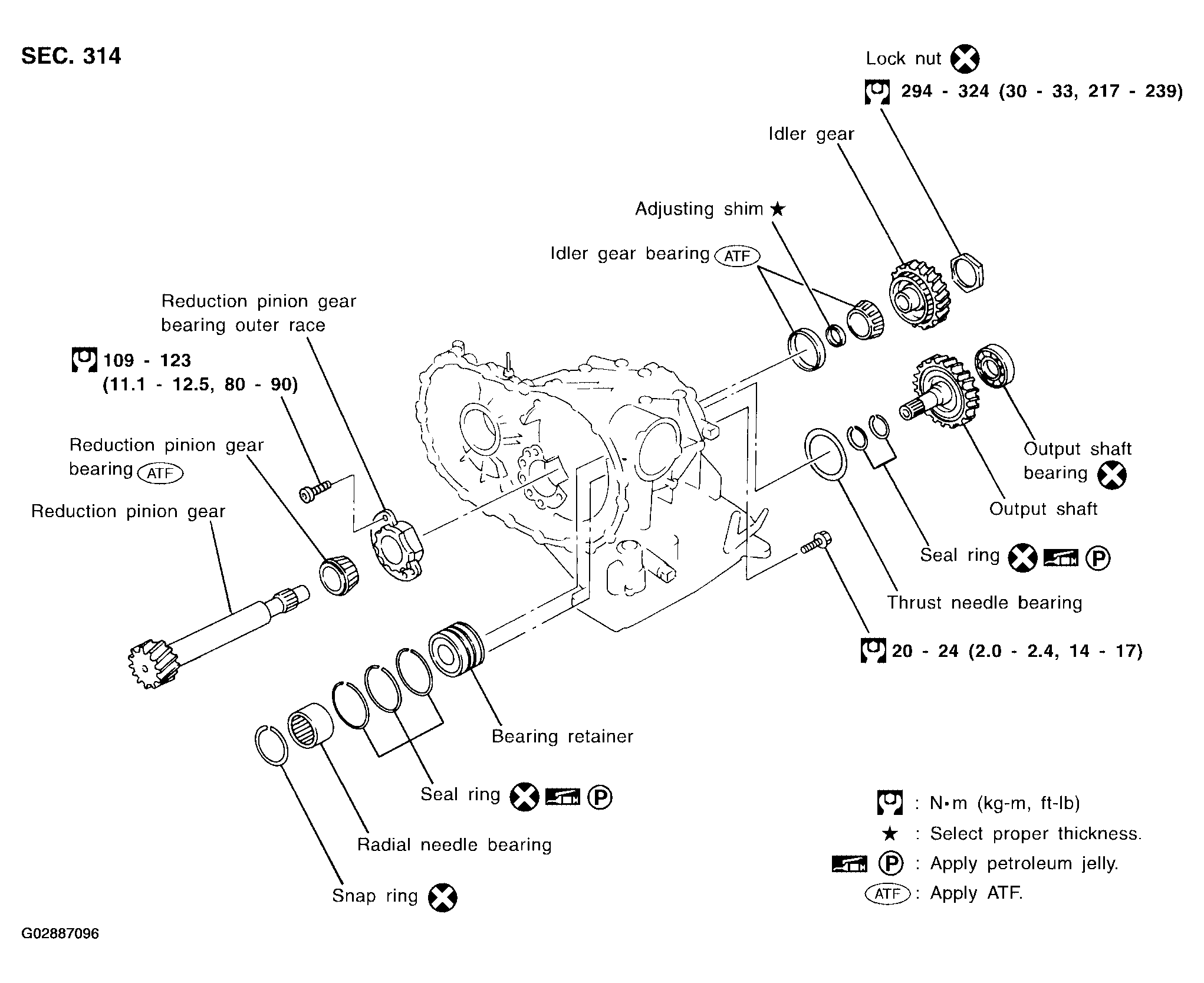

Fig 1: Exploded View Of Output Shaft, Idler Gear, Reduction Pinion Gear & Bearing Retainer Components With Torque Specifications
G02887096Courtesy of NISSAN MOTOR CO., U.S.A.
