Seal Ring Clearance
WARNING: This page is about a different variant/trim than selected.

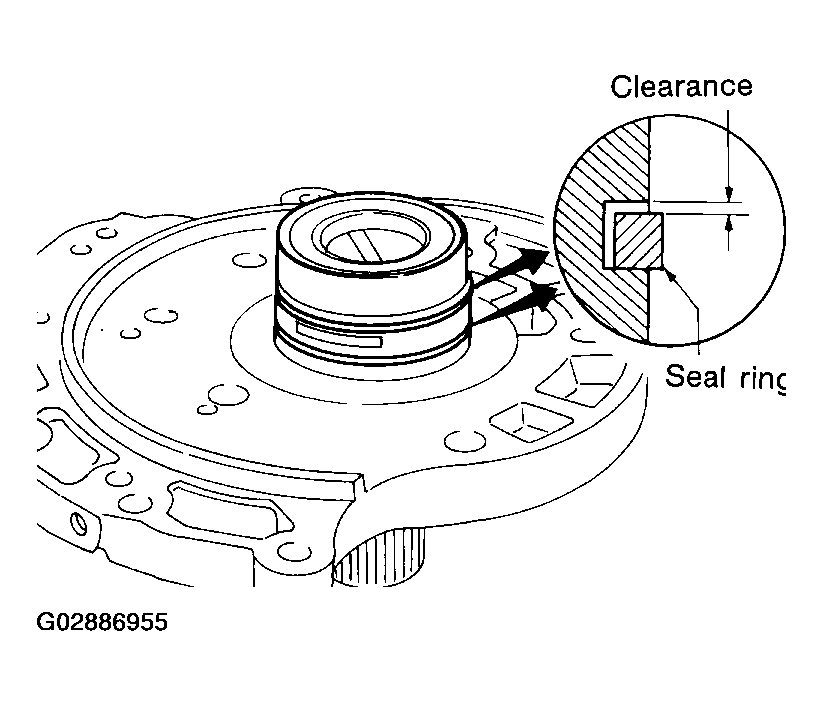

- Measure clearance between seal ring and ring groove.
Standard clearance: 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Allowable limit: 0.25 mm (0.0098 in)
- If not within allowable limit, replace oil pump cover assembly.
