Oil Pump: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove seal rings.

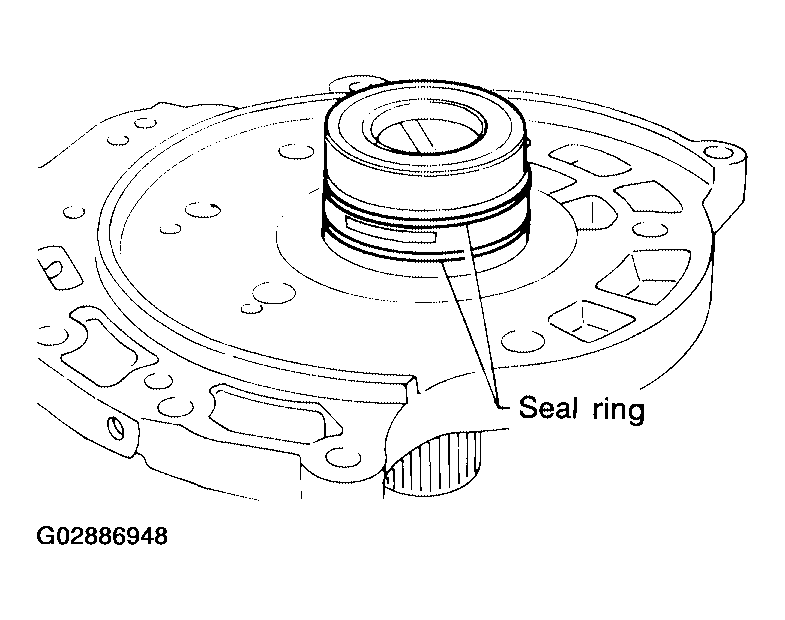

    Fig 1: Removing Seal Rings
    G02886948Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Loosen bolts in a crisscross pattern and remove oil pump cover.

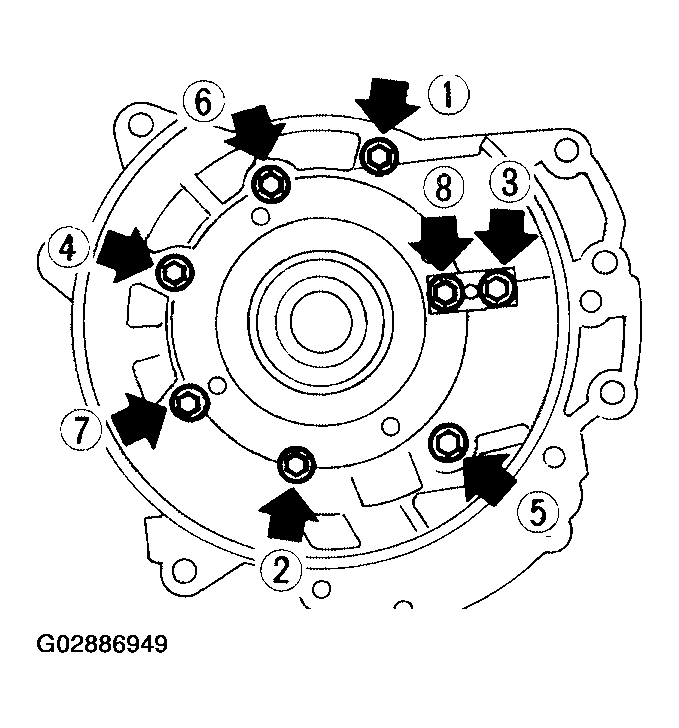

    Fig 2: Oil Pump Cover Bolts Loosening Pattern
    G02886949Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove inner and outer gear from oil pump housing.

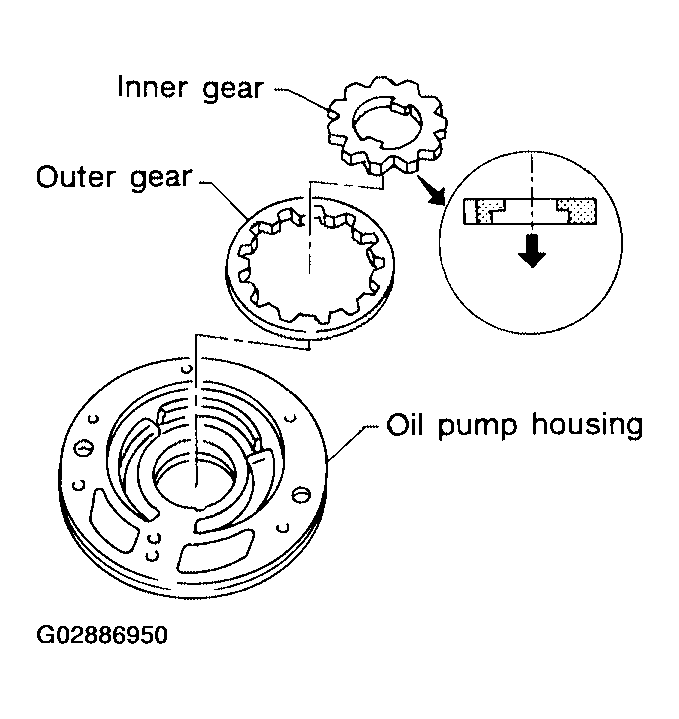

    Fig 3: Removing Inner & Outer Gear From Oil Pump Housing
    G02886950Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove O-ring from oil pump housing.

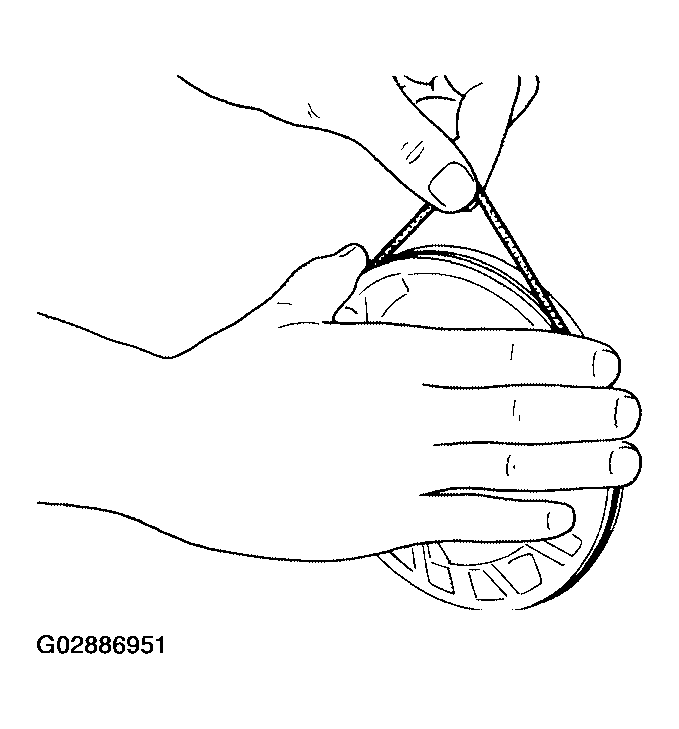

    Fig 4: Removing O-Ring From Oil Pump Housing
    G02886951Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove oil pump housing oil seal.

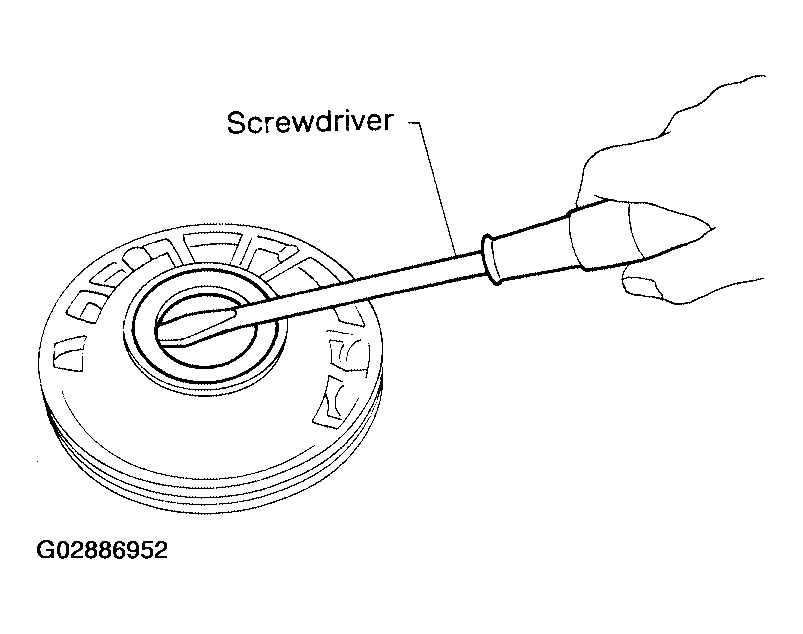

    Fig 5: Removing Oil Pump Housing Oil Seal
    G02886952Courtesy of NISSAN MOTOR CO., U.S.A.
