Low and Reverse Brake Drive Plate

WARNING: This page is about a different variant/trim than selected.

Check facing for burns, cracks or damage.
Measure thickness of facing.
Thickness of drive plate

Standard value: 1.8 mm (0.071 in)

Wear limit: 1.6 mm (0.063 in)
If not within wear limit, replace.

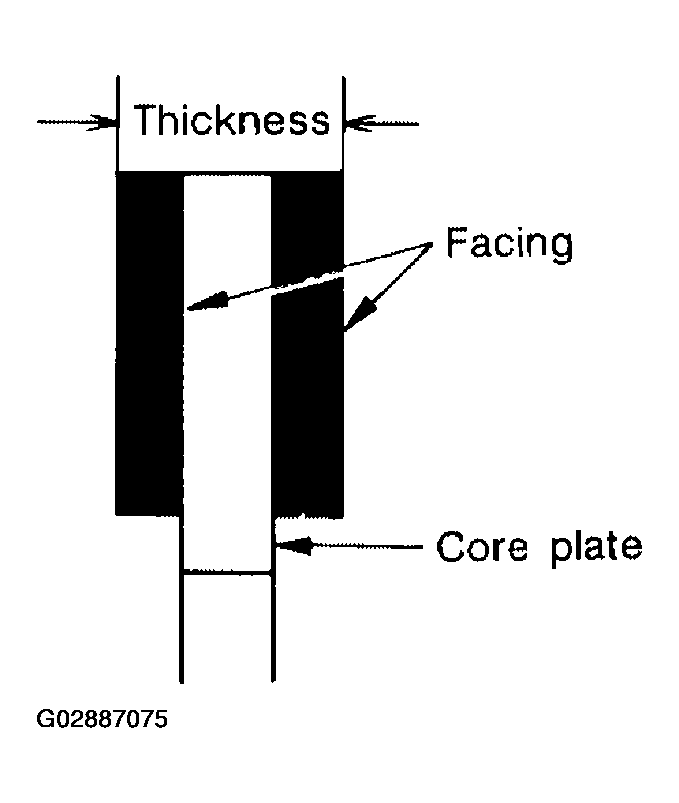

Fig 1: Low & Reverse Brake Drive Plates Facing Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
