Forward Clutch and Overrun Clutch Dish Plates

WARNING: This page is about a different variant/trim than selected.

Check for deformation or damage.
Measure thickness of dish plate.
Thickness of dish plate

Forward clutch: 2.7 mm (0.106 in)

Overrun clutch: 2.7 mm (0.106 in)
If deformed or fatigued, replace.

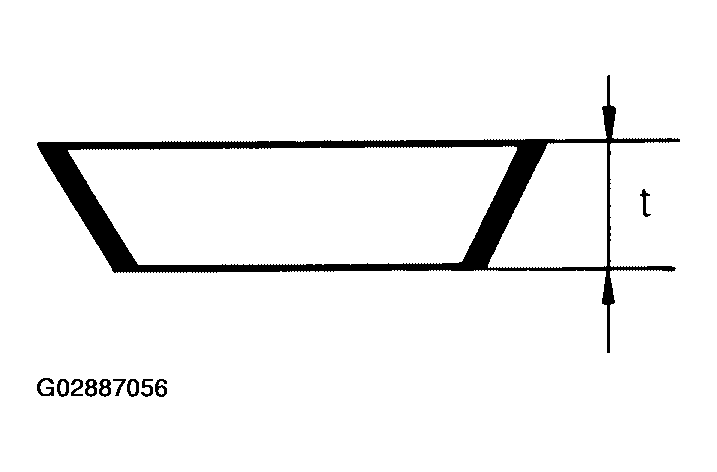

Fig 1: Forward & Overrun Clutch Dish Plate Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
