Gear, Washer, Shaft and Case
Gear, Washer, Shaft and Case
WARNING:
This page is about a different variant/trim than selected.
Check mating surfaces of differential case, side gears and pinion mate gears.
Check washers for wear.

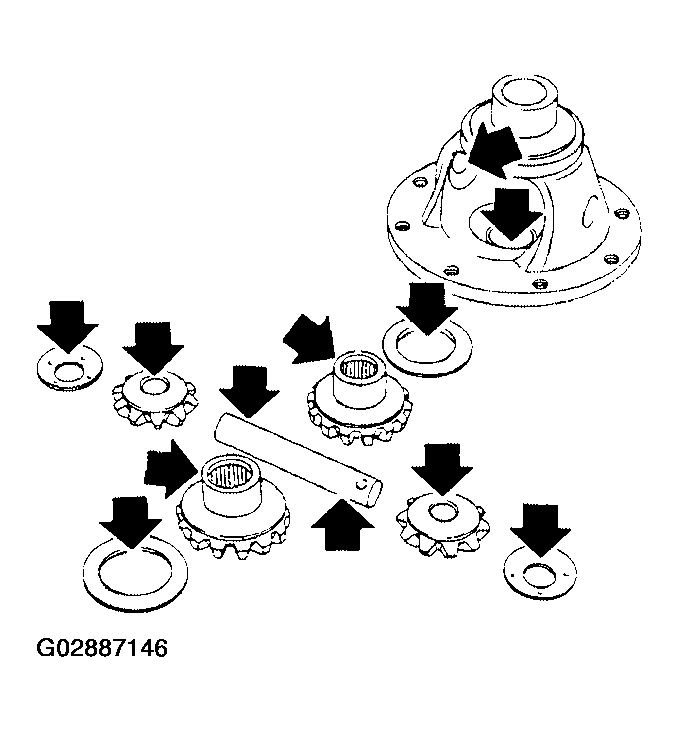

Fig 1: Checking Differential Case, Side Gears & Pinion Mate Gears Mating Surfaces
Courtesy of NISSAN MOTOR CO., U.S.A.
