Final Drive: Disassembly

WARNING: This page is about a different variant/trim than selected.

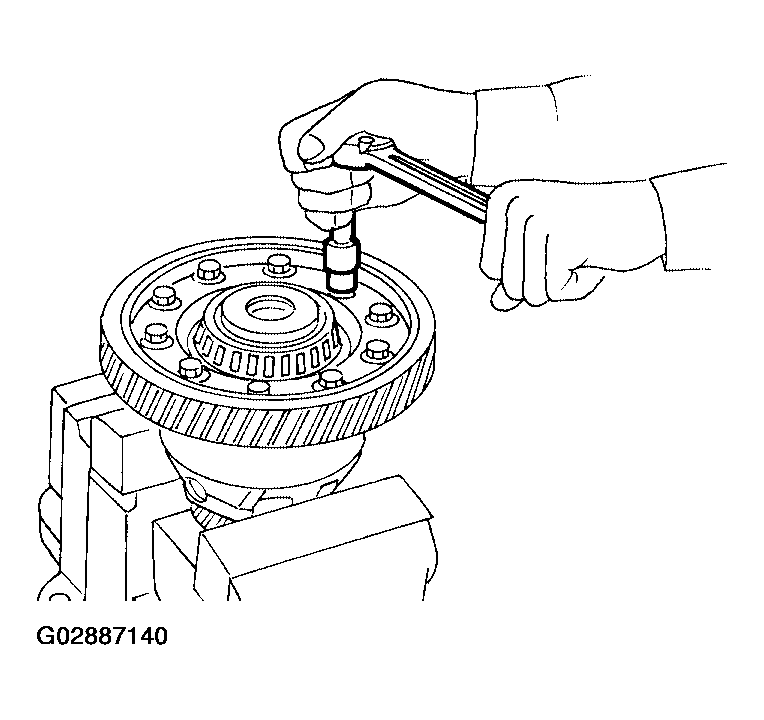

Remove final gear.

Fig 1: Removing Final Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

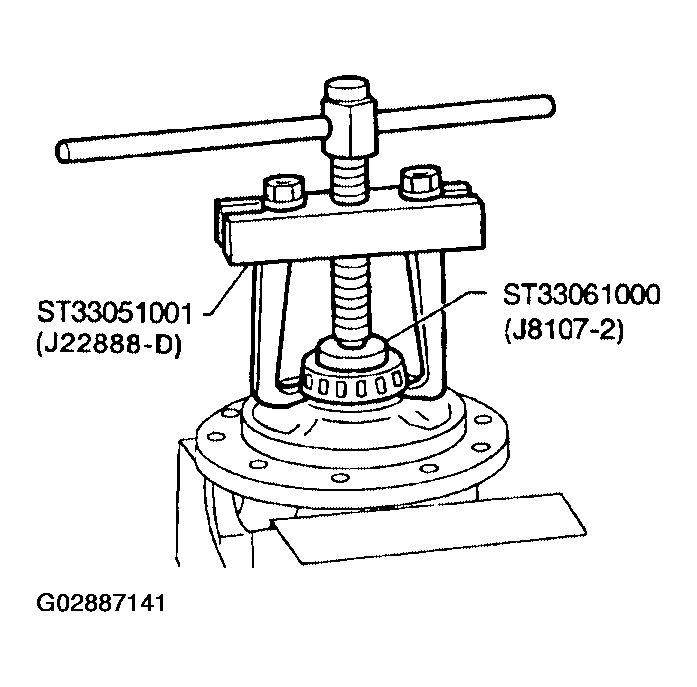

Press out differential side bearings.
- Be careful not to mix up the right and left bearings.

  Fig 2: Remove Differential Side Bearing Outer Race
  Courtesy of NISSAN MOTOR CO., U.S.A.

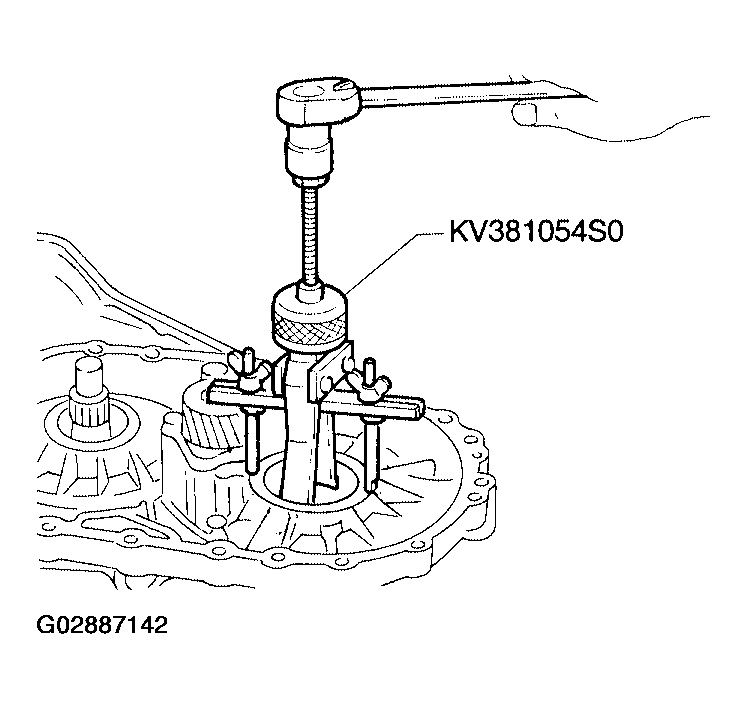

Remove differential side bearing outer race and side bearing adjusting shim from transmission case.

Fig 3: Removing Side Bearing Adjusting Shim From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

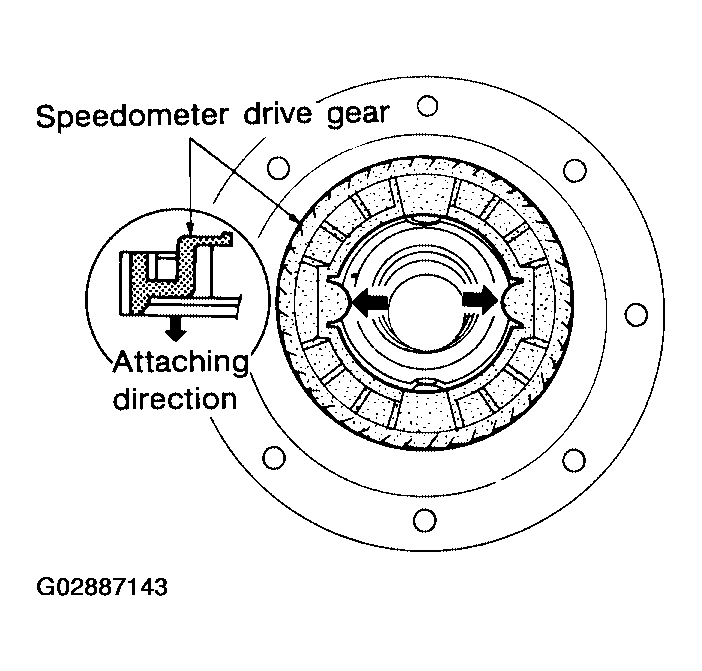

Remove speedometer drive gear.

Fig 4: Removing Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

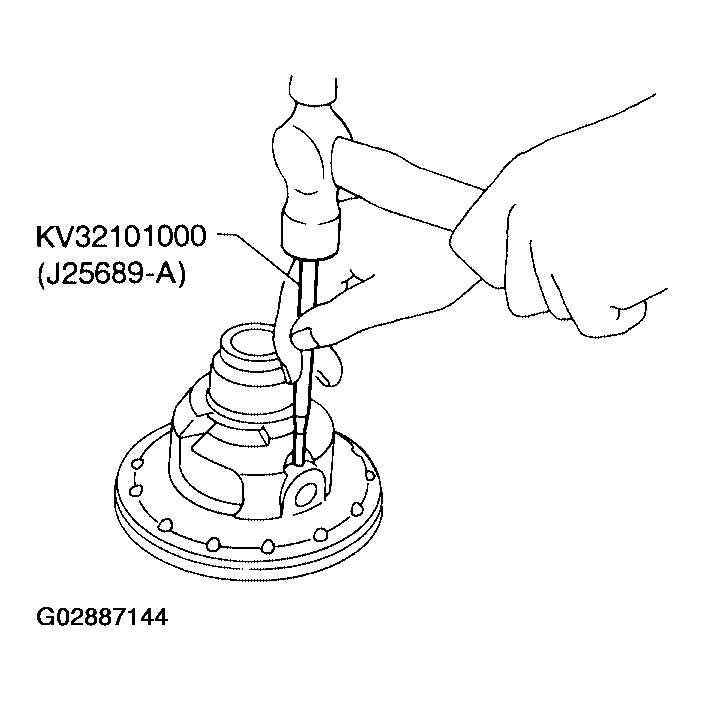

Drive out pinion mate shaft lock pin.

Fig 5: Removing Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Draw out pinion mate shaft lock pin.

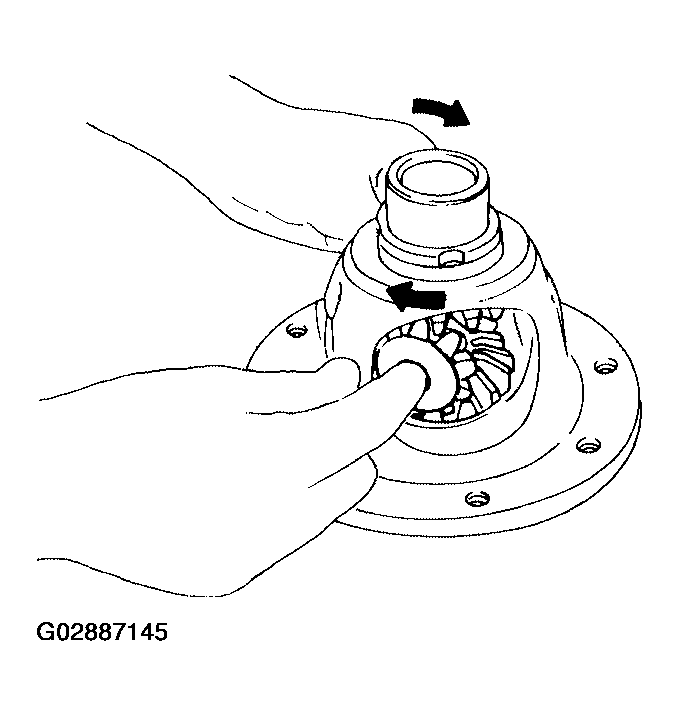

Remove pinion mate gears and side gears.

Fig 6: Removing Pinion Mate Gears & Side Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
