Retainer Plate (Upper Body)

WARNING: This page is about a different variant/trim than selected.

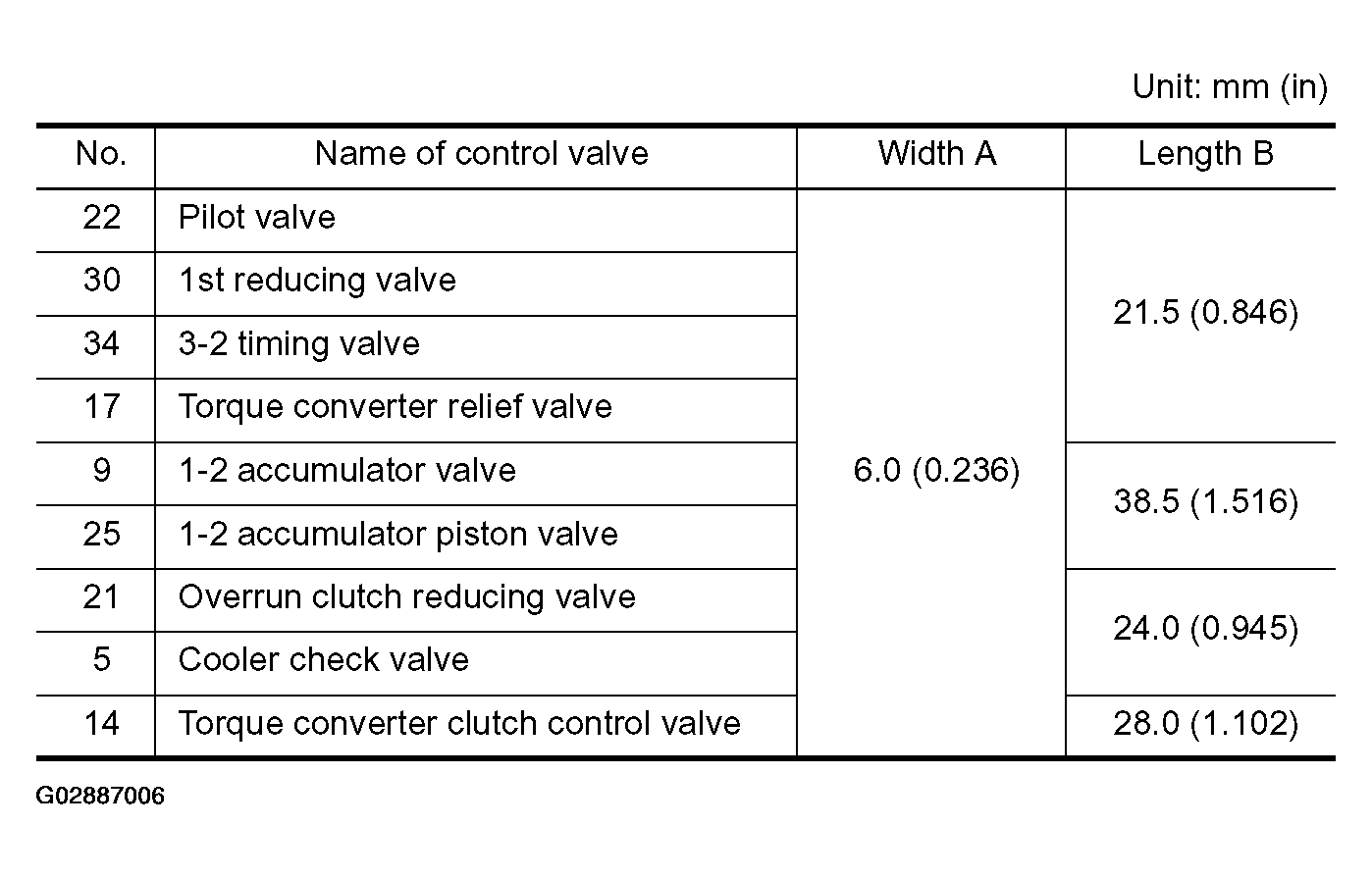

Fig 1: Upper Body Retainer Plate Control Valve Specifications Table
G02887006Courtesy of NISSAN MOTOR CO., U.S.A.

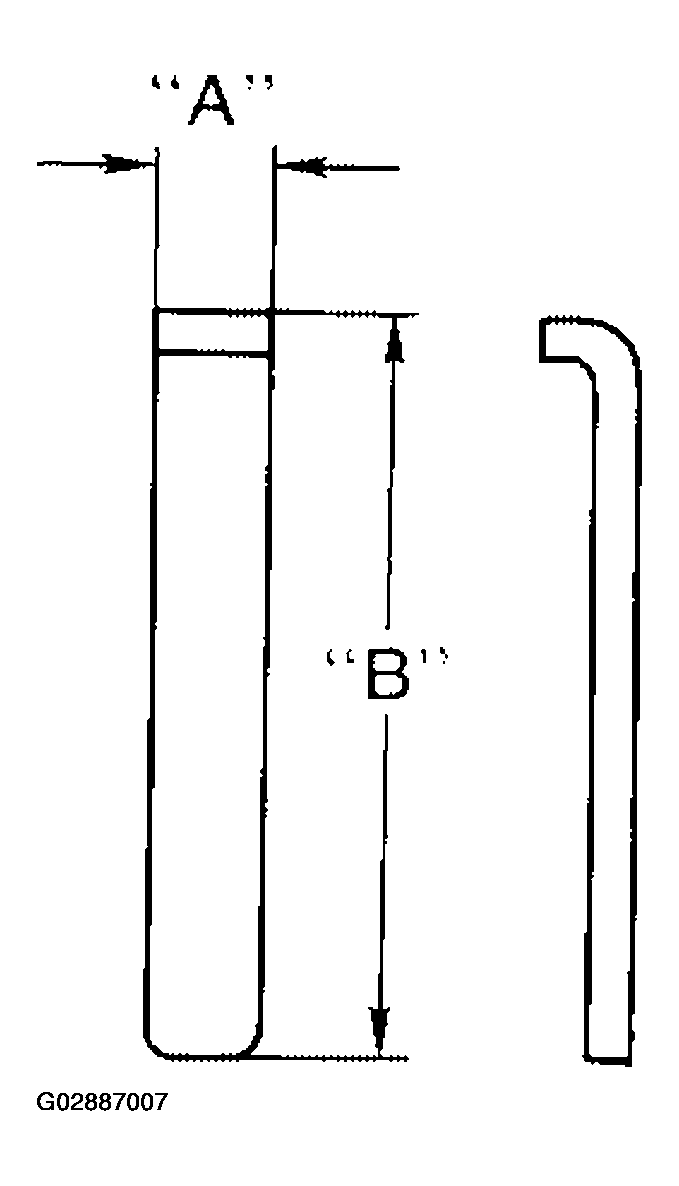

Fig 2: Upper Body Retainer Plate Width & Length
G02887007Courtesy of NISSAN MOTOR CO., U.S.A.
