Retainer Plate (Lower Body)

WARNING: This page is about a different variant/trim than selected.

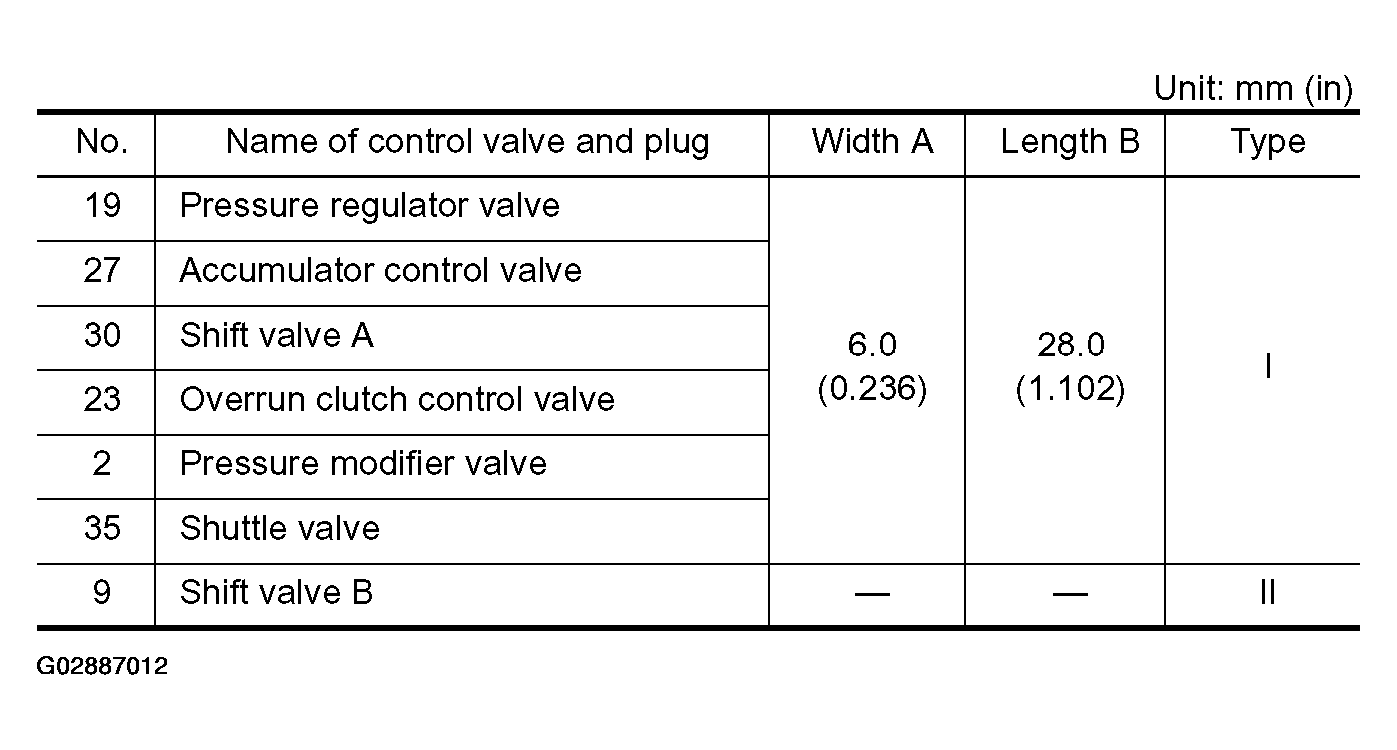

Fig 1: Lower Body Retainer Plate Control Valve Specifications Table
G02887012Courtesy of NISSAN MOTOR CO., U.S.A.

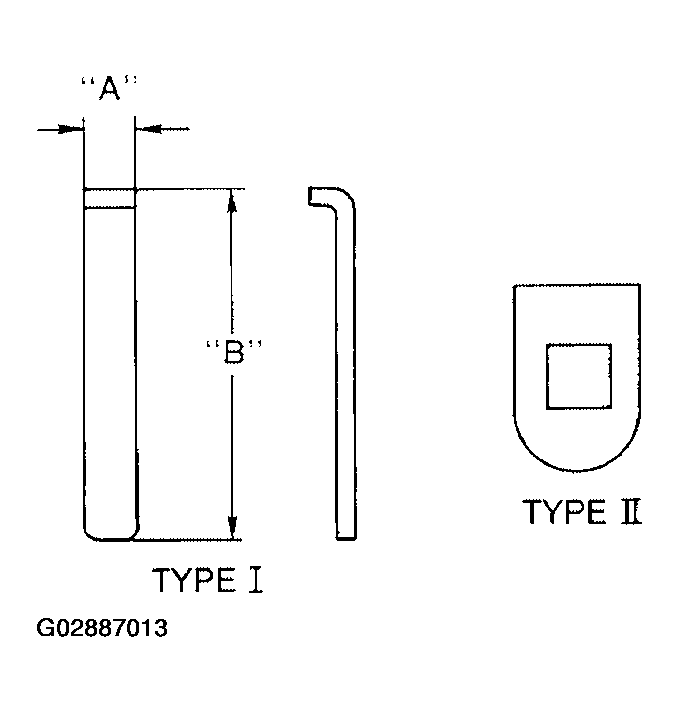

Fig 2: Lower Body Retainer Plate Control Valve Width & Length
G02887013Courtesy of NISSAN MOTOR CO., U.S.A.
