Lower and Upper Bodies

WARNING: This page is about a different variant/trim than selected.

Check to see that retainer plates are properly positioned in lower body.

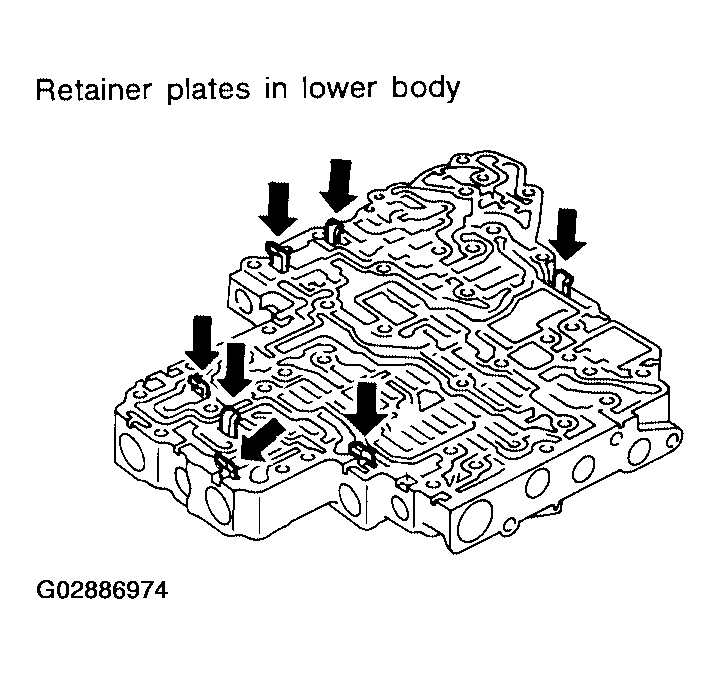

Fig 1: Retainer Plates Position In Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that retainer plates are properly positioned in upper body.
Be careful not to lose these parts.

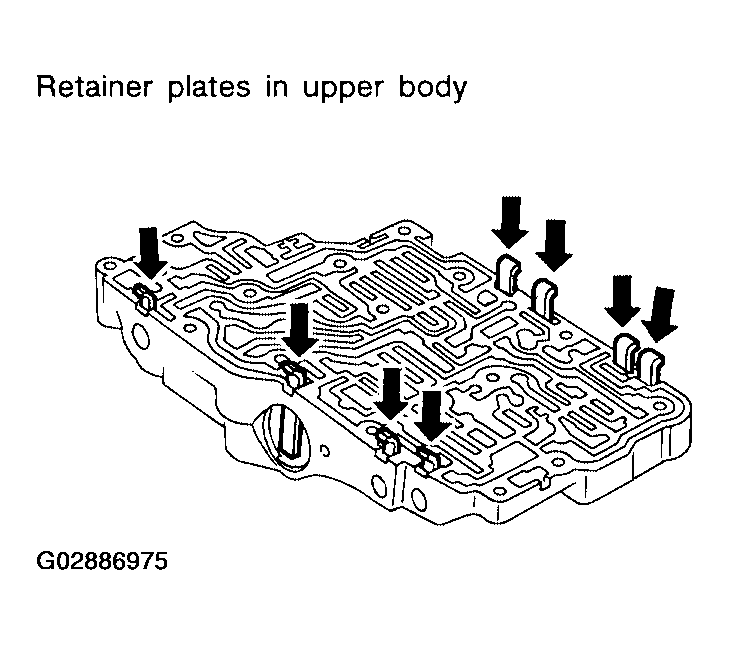

Fig 2: Retainer Plates Position In Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
