Section 8 (Automatic Transaxle)
>>
Overhaul
>>
Oil Channel
Oil Channel
WARNING:
This page is about a different variant/trim than selected.

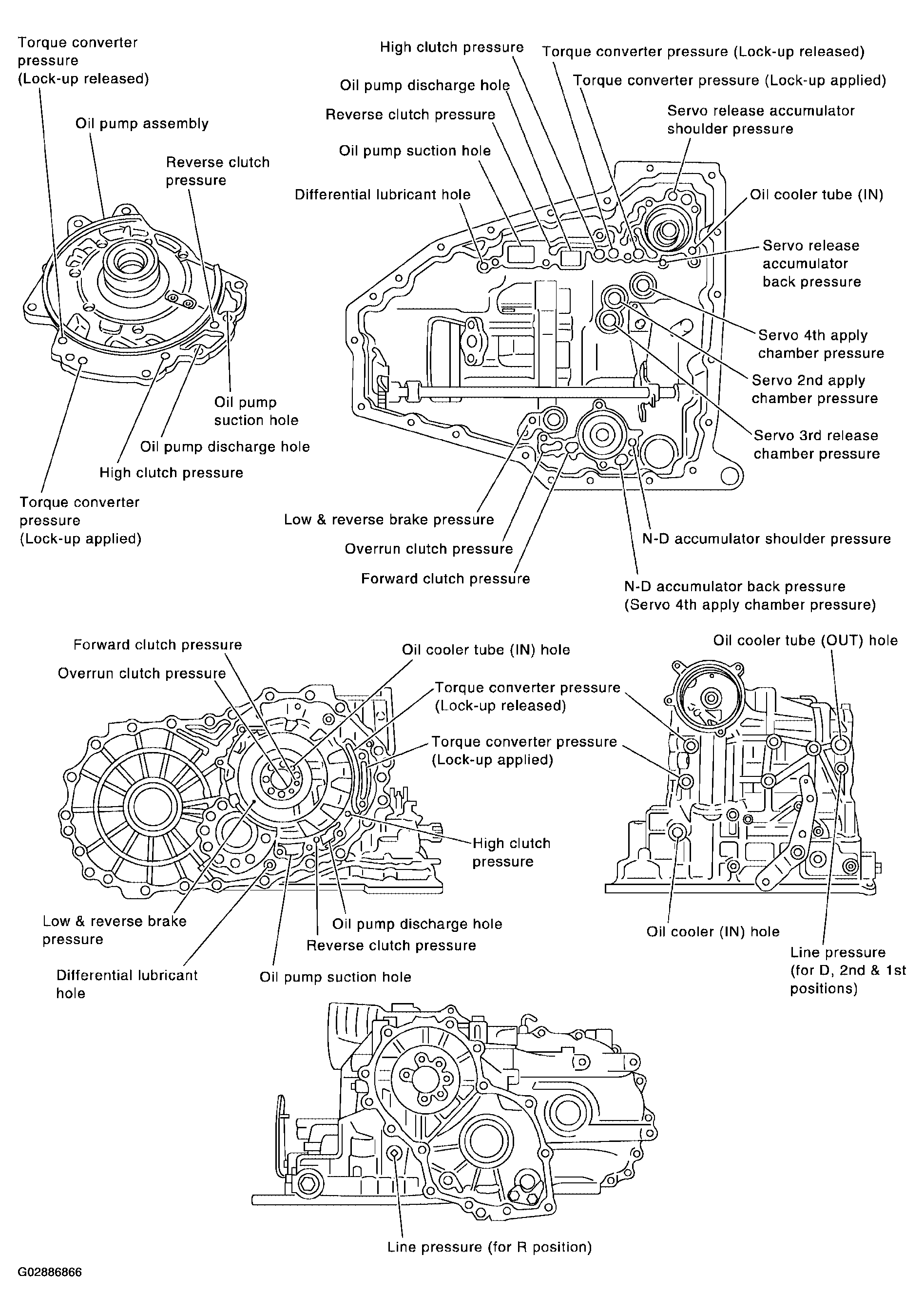

Fig 1: Automatic Transmission Components (Oil Channel)
Courtesy of NISSAN MOTOR CO., U.S.A.
